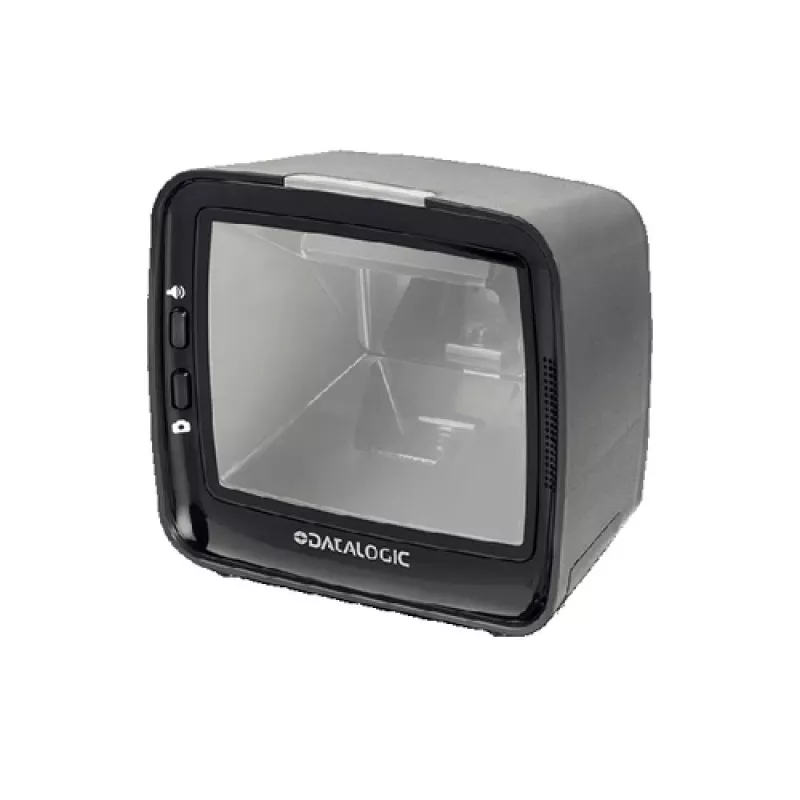

Lector de códigos de barras integrado Datalogic M3410-010210-00403

The Datalogic M3410-010210-00403 is a built-in barcode reader from the Magellan 3410VSi family designed for retail and point-of-sale integration. This compact imaging scanner reads 1D and 2D codes, including GS1 DataBar and Digimarc, and offers wired interfaces (RS-232 and USB) for reliable data transfer. With a small footprint and durable construction, it supports BMP and JPEG image formats, multiple power options (AC, DC or USB) and an IP52 rating for basic protection against dust and water.

Advantages

The unit combines a large reading area and sweep-scanning capability with proven decoding technology to deliver consistent first-pass reads. Its solid-state electronics and optional USB-powered operation reduce installation complexity. The scanner includes near-infrared illumination and soft, uniform lighting for improved readability of challenging barcodes, audible and visual good-read confirmations, and ESD protection up to 25 kV for enhanced reliability in busy retail or manufacturing environments.

Suitable for

• Retail point of sale (built-in counter installations)
• Pharmacy and drug verification
• Self-checkout and customer-facing scanning
• Component or item verification in production

Key specifications

• Model: Datalogic M3410-010210-00403 (Magellan 3410VSi series)
• Supported symbologies: 1D and 2D barcodes, GS1 DataBar, Digimarc
• Interfaces: RS-232, USB (auxiliary USB port for customer scanner)
• Image formats: BMP, JPEG
• Power: AC, DC or USB-powered (standard USB host cable may supply power)
• Protection rating: IP52
• Dimensions (approx.): width 137 mm, depth 152 mm; weight: 600 g
• ESD protection: up to 25 kV

How to use

Install the reader into a counter cutout or mount it on a wall or inside a small self-checkout unit using the compact form factor. Connect the scanner to the host system via RS-232 or USB; if supported, the unit can be powered from the USB host cable to avoid an external power supply. Position items so barcodes pass through the scanner’s reading area or perform a sweep motion across the barcode. The device provides audible beeps, visible LEDs and Datalogic’s Green Spot on the barcode to confirm successful reads.

Recommendations

For best results, keep the scanner’s window clean and ensure items move steadily through the reading area. When integrating a customer-facing scanner on the auxiliary USB port, verify host software support for the additional device and test EAS integration so tags deactivate only after successful barcode reads.
