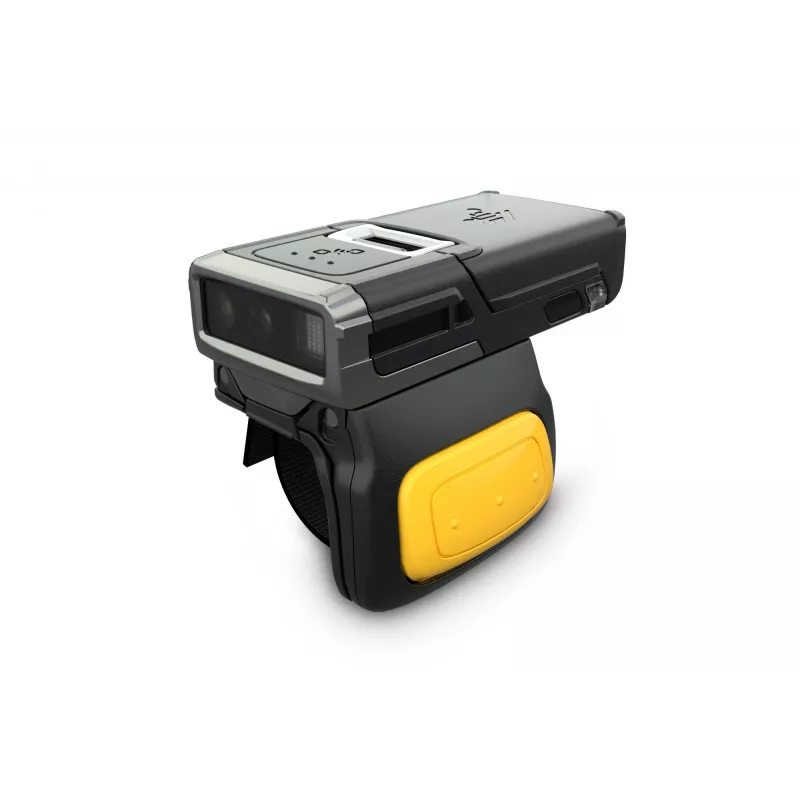

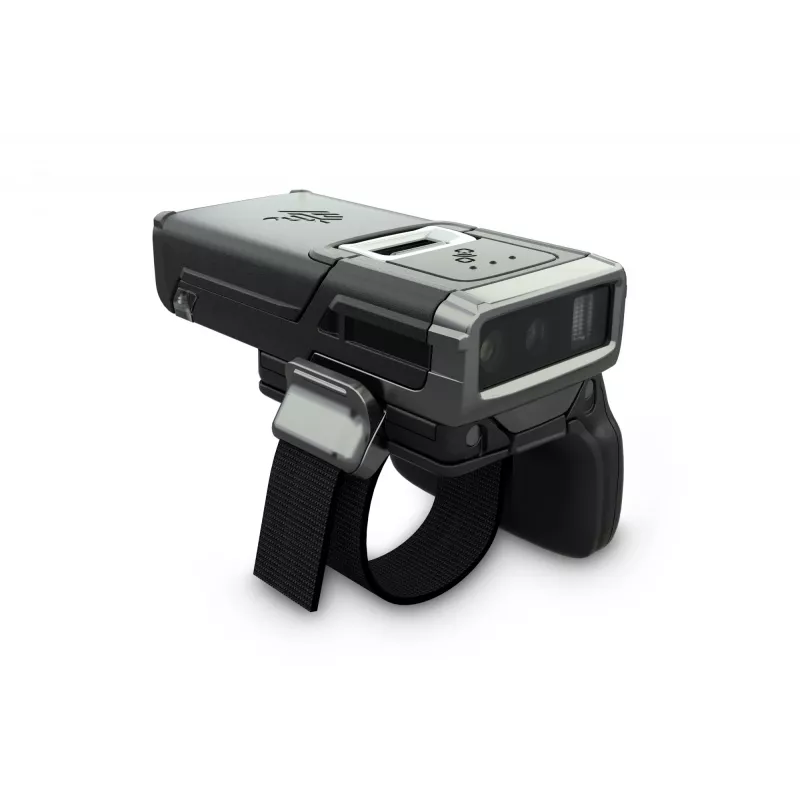

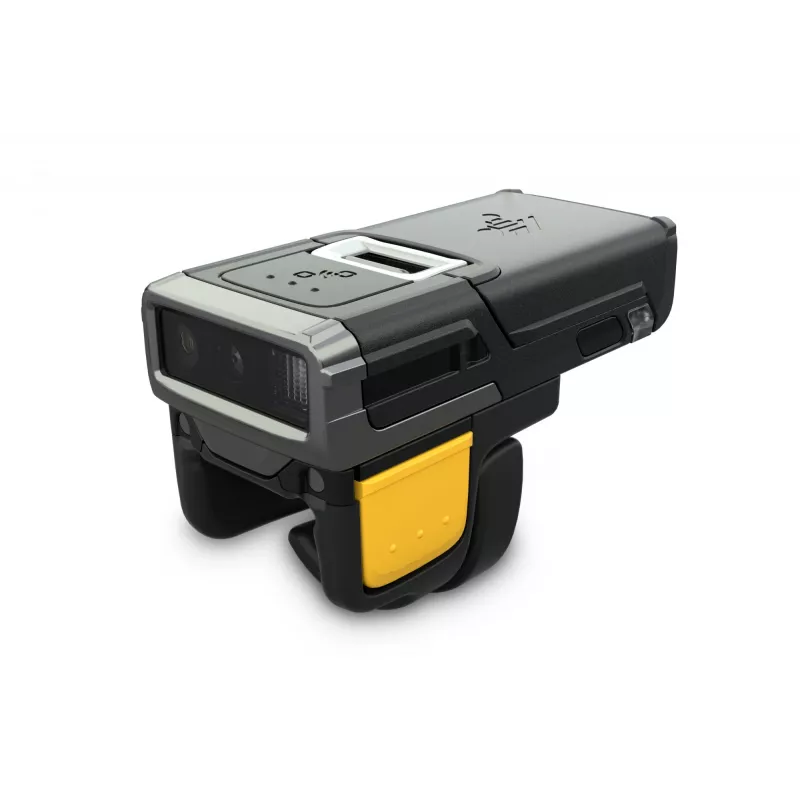

Lector de códigos de barras portátil Zebra RS5100 1D/2D Láser Negro

THE ‘GO-EVERYWHERE’ FEATHERWEIGHT AND RUGGED RING SCANNER
Finally, there’s a ring scanner that’s designed for use in customer-facing areas, as well as your warehouse and distribution center — the RS5100 next-generation ring scanner. It’s practically weightless, and so small your customers won’t even notice it. There’s a wearing option that will bring comfort to every worker. Best-in-class scanning enables instant capture of virtually every barcode at twice the range of legacy Bluetooth ring scanners. The rugged design outshines competitive devices. And a long list of features provides unsurpassed versatility and flexibility.

SUPERIOR ERGONOMICS FOR SUPERIOR COMFORT
At just over two ounces and two cubic inches, it’s practically weightless (about 1/2 the size and weight of the legacy RS507x ring scanner). Wear it on a finger, the back of a hand or on a lanyard. The single-sided trigger model accommodates gloves; the double trigger model lets workers switch hands on the fly. And the top-mounted trigger on both models allows rotation of the RS5100 to the side of a finger for near-zero protrusion.

INDUSTRY-LEADING RUGGED DESIGN
You get a best-in-class rugged design with a drop, tumble and IP sealing specification — so you can count on reliable operation despite drops, bumps, dust and even a high-pressure hose down. The long-life trigger handles millions of actuations. And the RS5100 is built to handle the high levels of electrostatic discharge common with use on concrete flooring.

BEST-IN-CLASS SCANNING
Two scan engine options allow you to choose the imager that best matches your scanning and aimer requirements — LED or laser. Both imager engines deliver first time capture of even damaged, dirty and poorly printed 1D/2D barcodes through PRZM Intelligent Imaging, a megapixel sensor and superior algorithms — plus a wide field of view for easy capture of large barcodes. In addition, the two imagers can scan barcodes twice the distance as the legacy RS507x ring scanner.

Zebra RS5100. Type: Wearable bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wireless, Standard interfaces: Bluetooth. Product colour: Black. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 70 g, Width: 28 mm, Depth: 21 mm

How to use

Choose the wearing style that fits the task and operator comfort — options include the adjustable enterprise hand mount for left or right hands, back‑of‑hand mount, finger ring, belt attachment or retractable lanyard. Pair the RS5100 with a host device over Bluetooth following the Zebra pairing procedure for your operating system. Position the scanner so the aiming window faces the barcode and press the trigger to scan; the appropriate scan engine will capture 1D and 2D codes depending on configuration. Recharge the integrated lithium‑ion battery using the manufacturer’s cradle or charging accessory according to the supplied instructions.

Recommendations

For reliable performance, select the scan engine that matches your barcode density and environmental conditions, ensure the device firmware is kept up to date, and use the wearable mounting option that minimises strain for the operator. Follow Zebra’s cleaning and maintenance guidelines after exposure to dust or washdown procedures.
