Legrand 776220 Base tipo F blanca

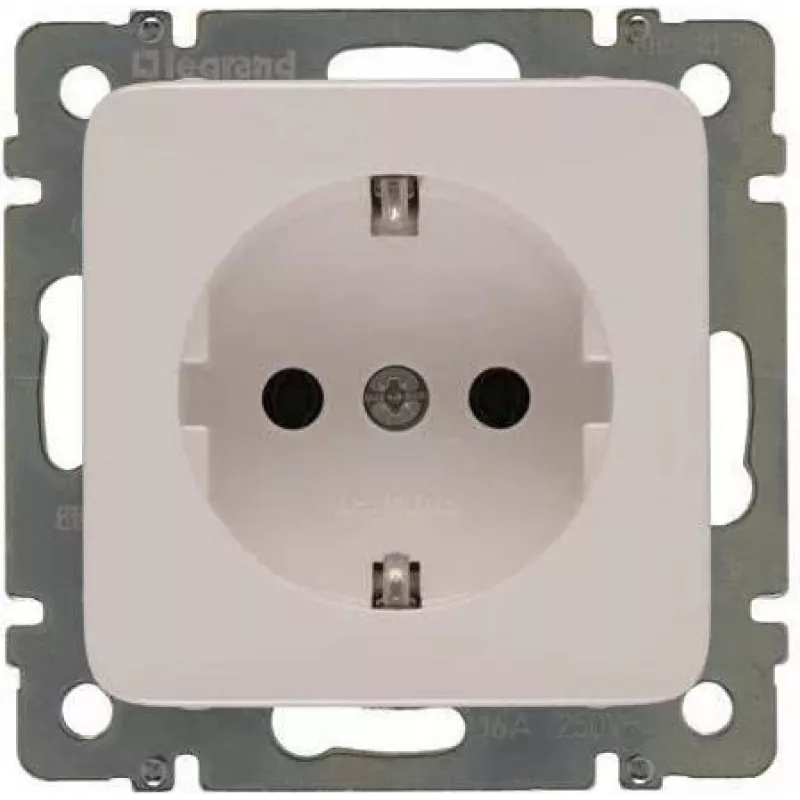

The Legrand 776220 socket outlet is a Type F wall-mounted electrical outlet designed for standard European installations. It comes in a white thermoplastic housing and provides protection class IP20. Rated for 250 V and 16 A, the outlet measures 71 mm x 42.5 mm x 71 mm and is fixed with screws for secure installation. The compact dimensions and neutral finish make it suitable for residential and light commercial environments where a reliable Type F receptacle is required.

Advantages

The thermoplastic housing offers electrical insulation and resistance to everyday wear while maintaining a clean white appearance that integrates with most interiors. IP20 protection prevents access to live parts and enhances safety in standard indoor settings. The electrical rating of 250 V and 16 A meets common household and office power requirements. The screw-fastened mounting ensures a stable mechanical connection to mounting boxes, enabling straightforward replacement or retrofit without specialized tools.

Suitable for

Key specifications

How to use

Turn off the circuit breaker before starting installation. Remove the existing cover and outlet if replacing an old unit. Connect the live, neutral and protective earth conductors to the corresponding terminals on the socket according to local wiring conventions, ensuring secure screw connections and correct polarity. Fix the outlet to the mounting box with screws, restore the faceplate, and switch the circuit back on. After installation, check for correct operation with an appropriate tester and verify that the grounding connection is intact.

Recommendations

Use this socket outlet only in dry indoor environments consistent with its IP20 rating. Ensure installation is performed by a qualified person or in accordance with applicable electrical regulations. Avoid exceeding the rated current of 16 A and distribute high-load appliances across multiple circuits when necessary.
