Enchufe Bachmann 924.349 negro transparente

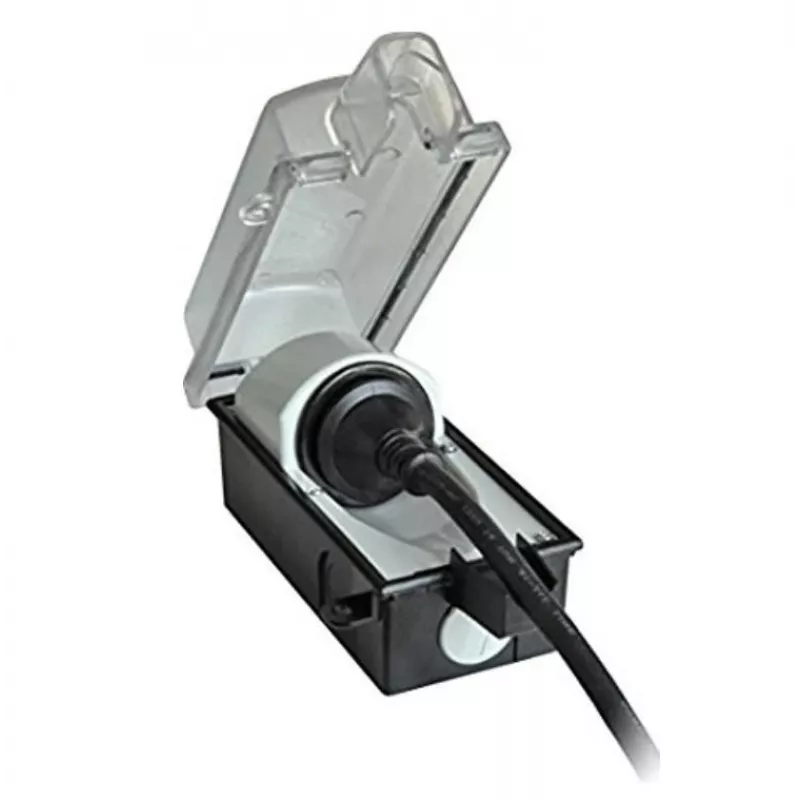

The Bachmann 924.349 Black Transparent socket outlet is a single 230 V, 16 A outlet in a clear polycarbonate housing with a black trim. The enclosure has an IP44 rating, a foam-sealed transparent lid to protect the socket from splashes and rain, and a shackle provision for a padlock to prevent unauthorized use. It is designed for use with a central plug and provides one earthed socket contact.

Advantages

The transparent polycarbonate lid allows visual inspection of the connection without opening the cover while the foam seal improves protection against moisture. The device supports a central plug and includes an earthing contact for safe operation. A shackle for a padlock enables the socket to be locked when not in use, reducing the risk of unauthorized power draw. Compact dimensions make it suitable for installation where space is limited.

Suitable for

• Outdoor socket for patios, gardens and balconies
• Temporary power supply for workshops and construction sites
• Areas requiring splash protection (IP44)
• Situations where the outlet should be locked to prevent unauthorized use

Key specifications

• Brand: Bachmann
• Model / MPN: 924.349
• EAN: 4016514081677
• Rated voltage: 230 V
• Rated current: 16 A
• Number of sockets: 1 (with earthing contact)
• Material: Polycarbonate (PC)
• Protection rating: IP44
• Dimensions (W x D x H): 85 x 185 x 80 mm

How to use

Mount the socket outlet according to local electrical regulations and ensure power is switched off before installation. Fit the central plug as required and connect the wiring to the earthed contact and live/neutral conductors. Close the transparent lid to maintain splash protection; the lid can be locked with a padlock on the shackle when needed. Check seals and cable entries regularly to ensure the IP44 protection is maintained.

Recommendations

Use this socket outlet in environments where splash protection and the ability to lock the outlet are required. Do not expose the unit to direct water jets or immerse in water. Perform installation and maintenance by a qualified electrician and follow applicable safety standards.
