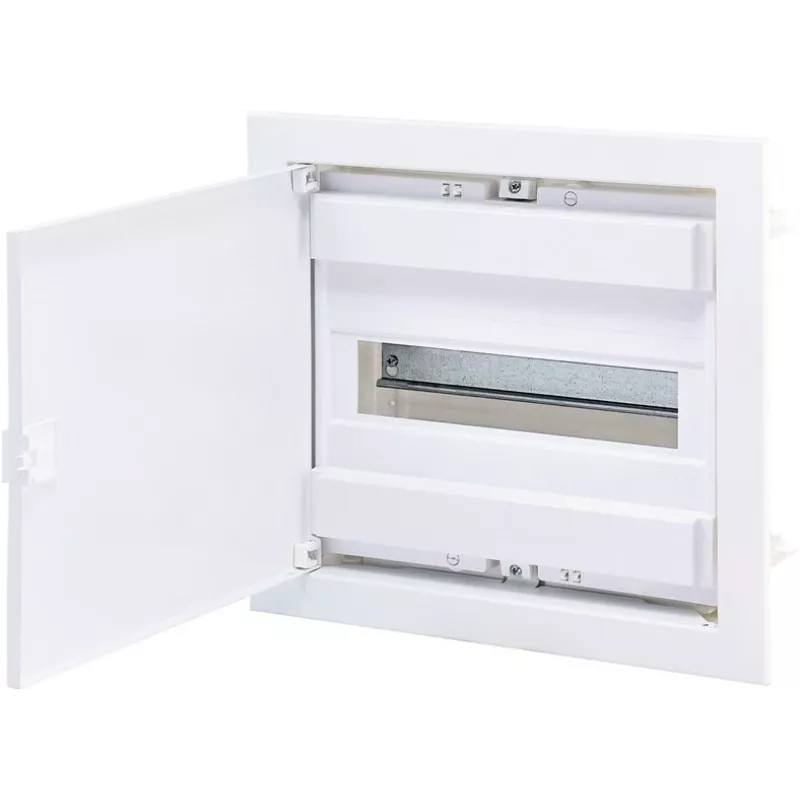

LEGRAND caja empotrable 12+2 módulos con caja metálica ECG14

The LEGRAND ECG14 flush-mounted enclosure stands out with its 12+2 module capacity and robust metal door, offering a secure and professional housing for electrical distribution in residential and commercial settings. Unlike standard plastic-door alternatives, the metal door provides enhanced durability and a premium finish, while the reversible hinge allows flexible installation. Its flush-mounted design integrates seamlessly into walls, maintaining a clean aesthetic. The enclosure includes N and PE terminal blocks, simplifying wiring and ensuring compliance with safety standards.

Highlights

• Accommodates 12 standard modules plus 2 additional positions for auxiliary devices
• Durable metal door with reversible hinge for left or right opening
• Flush-mounted installation for a neat, space-saving profile
• Includes pre-installed N and PE terminal blocks for quick connections
• IP40 protection rating against solid objects over 1mm
• IK07 impact resistance for reliable mechanical protection
• White RAL 9003 finish blends with most interiors

In daily use

Installers appreciate the ECG14's practical layout: the single-row design allows easy access to all modules, and the 70mm recessed depth fits standard wall cavities. The plastic ABS body is lightweight yet sturdy, while the metal door shields internal components from accidental contact. The enclosure is rated for operating temperatures from -5°C to +40°C, making it suitable for typical indoor environments. Compliance with EN 60439-3 and EN 60670-24 ensures adherence to European safety and performance standards.

Full specifications

• Brand: LEGRAND
• Model: ETI-001101025
• MPN: 001101025
• EAN: 3838895679615
• Mounting type: Flush-mounted
• Number of modules: 12 + 2 (total 14)
• Number of rows: 1
• Door material: Metal
• Enclosure body material: Plastic (ABS)
• IP protection rating: IP40
• IK impact protection rating: IK07
• Rated insulation voltage: 400 V AC
• Rated operational voltage: 230/400 V AC
• Glow wire test temperature: 650 °C
• Colour: White (RAL 9003)
• Terminal blocks included: N and PE
• Door type: Hinged, reversible
• Standards compliance: EN 60439-3, EN 60670-24
• Operating temperature range: -5 to +40 °C
• Recessed depth: 70 mm

Final note

The LEGRAND ECG14 is a reliable choice for electricians seeking a robust, easy-to-install flush-mounted enclosure with ample module space and a professional metal door finish.
