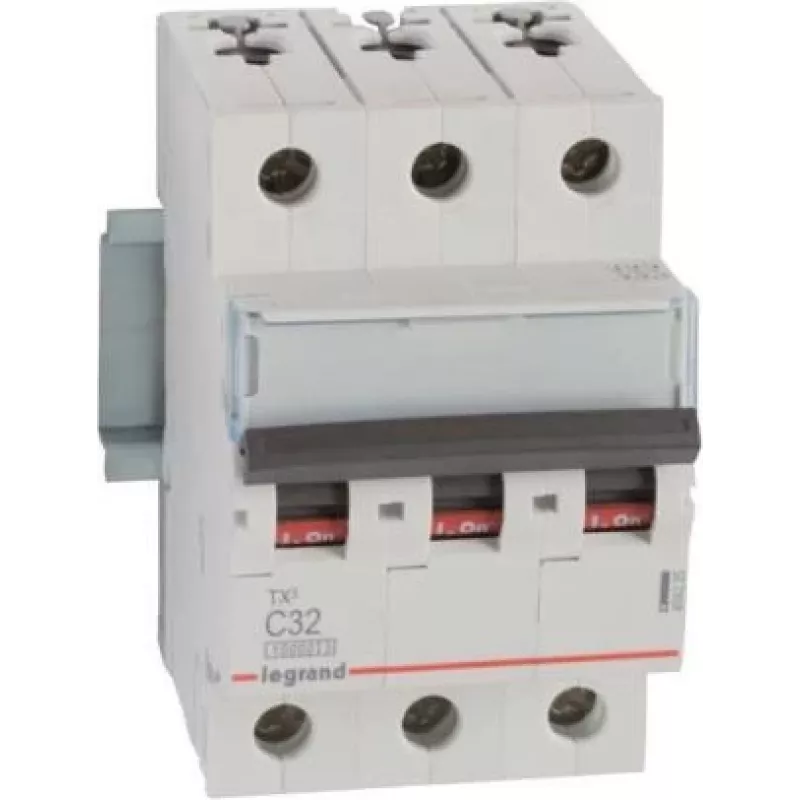

Legrand TX3 interruptor automático magnetotérmico MCB C 32A 3 polos 10kA 400V AC 3 módulos 404225

The Legrand TX3 miniature circuit breaker (MCB) delivers robust overcurrent and short-circuit protection for commercial and industrial electrical installations. With a rated current of 32 A and a 10 kA breaking capacity at 400 V AC, this 3-pole device ensures reliable disconnection under fault conditions, safeguarding cables and connected equipment. Its Type C tripping characteristic (5–10 In) makes it ideal for circuits with moderate inrush currents, such as motors, transformers, and lighting banks.

Advantages

The TX3 series combines high performance with ease of installation. The compact 3-module width (54 mm) saves valuable space in distribution boards, while the DIN rail mounting and screw terminals with wide capacity (1–25 mm² solid, 1–16 mm² flexible) simplify wiring. Certified to EN 60898-1, this MCB offers long-term reliability with an electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles. Its IP20 protection and operating temperature range of -25 °C to +70 °C ensure suitability for diverse environments.

Suitable for

• Protection of three-phase circuits in commercial and industrial switchboards
• Motor, transformer, and lighting circuits with moderate inrush currents
• Installations requiring a 10 kA short-circuit breaking capacity
• DIN rail mounting in distribution boards and enclosures

Key specifications

• Brand: Legrand
• Series: TX3
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3
• Rated Current: 32 A
• Tripping Characteristic: Type C
• Rated Operational Voltage: 400 V AC
• Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Frequency: 50/60 Hz
• Module Width: 3 TE (54 mm)
• Degree of Protection: IP20
• Terminal Type: Screw Terminals
• Terminal Capacity: 1–25 mm² (solid), 1–16 mm² (flexible)
• Standard: EN 60898-1
• Operating Temperature: -25 °C to +70 °C
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles

Recommendations

For reliable three-phase circuit protection in demanding environments, the Legrand TX3 32A MCB offers the perfect balance of performance, safety, and compact design. Its Type C curve and high breaking capacity make it a versatile choice for a wide range of commercial and industrial applications.
