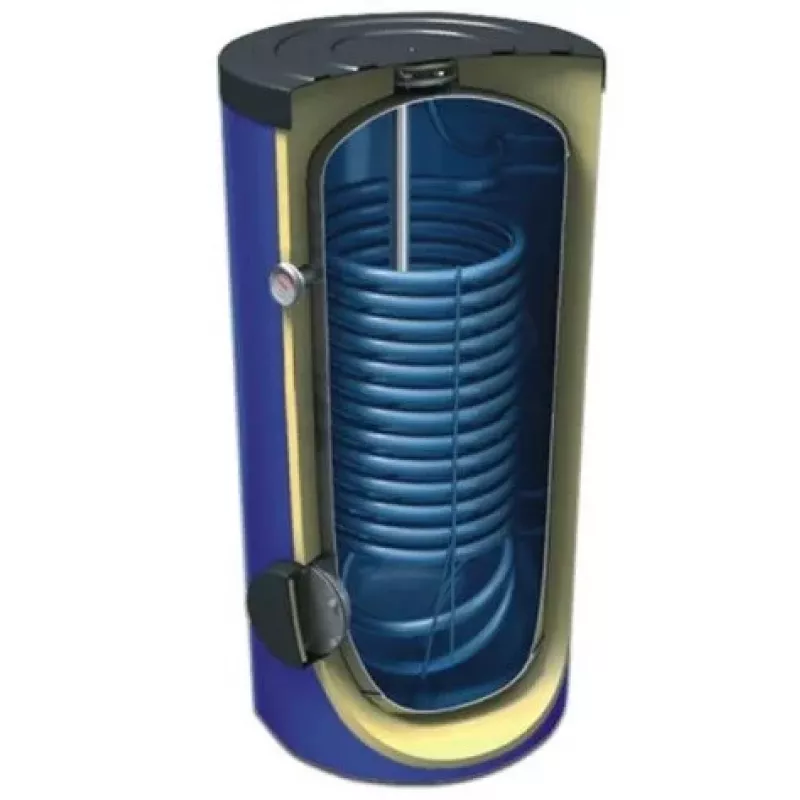

LEMET acumulador vertical de agua caliente sanitaria con un intercambiador ACS MAXI 3,2 m² - 300 L

The LEMET Vertical Water Heater with One DHW Coil MAXI 3.2m² - 300L is a high-capacity indirect water heater designed for efficient domestic hot water production. With a 300-liter storage tank and a large 3.2 m² single coil, it delivers rapid heat-up and excellent performance for residential or commercial applications.

Advantages

This water heater offers a large 300L capacity, ensuring ample hot water supply for multiple users. The 3.2 m² DHW coil provides a high heat exchange surface, resulting in a fast warm-up time of only 22 minutes (from 10°C to 45°C). The vitreous enamelled steel tank and magnesium anode offer reliable corrosion protection, extending the product's lifespan. Hard polyurethane foam insulation minimizes heat loss, contributing to energy efficiency class B.

Suitable for

• Homes with high hot water demand (e.g., large families)
• Small commercial establishments (e.g., restaurants, hotels)
• Integration with central heating systems (boilers, solar thermal)

Key specifications

• Capacity: 300 L
• Coil Surface Area: 3.2 m²
• Heat Exchanger Power (80/60/15°C): 78 kW
• Warm-up Time (10°C to 45°C): 22 minutes
• Max. Operating Pressure (Tank): 0.6 MPa (6 bar)
• Max. Operating Pressure (Coil): 1.6 MPa (16 bar)
• Max. Operating Temperature (Tank): 95 °C
• Max. Operating Temperature (Coil): 110 °C
• Inner Tank Material: Steel, Vitreous Enamelled
• Corrosion Protection: Magnesium Anode
• Insulation: Hard Polyurethane Foam
• Connections: Cold/Hot Water G1", Coil G1", Circulation G3/4", Sensor Well G1/2"
• Inspection Flange: Yes
• Energy Class: B

Recommendations

For optimal performance, pair this water heater with a compatible boiler or heat source. Ensure professional installation and regular maintenance of the magnesium anode to maximize service life.
