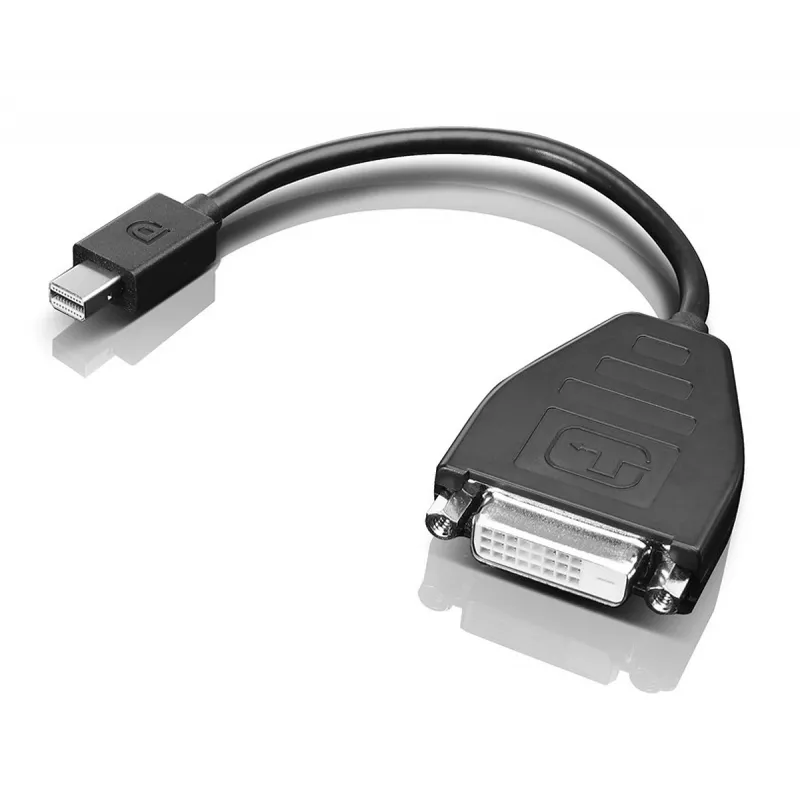

Lenovo 0B47090 Adaptador de cable de vídeo 0,2 m Mini-DisplayPort SL-DVI Negro

The Lenovo 0B47090 Mini-DisplayPort to Single Link DVI adapter is a compact 20 cm cable that connects devices with a Mini-DisplayPort output to monitors with a DVI interface. Compliant with DisplayPort 1.2 and offering a bandwidth of 4.95 Gbps, it supports up to 1920 x 1200 at 60 Hz and is supplied in black with a 0.2 m length and a product weight of 36 g.

Advantages

This adapter provides a small-form-factor solution for adding a DVI monitor as a secondary display to Lenovo ThinkPad and other Mini-DisplayPort-equipped systems. It delivers digital video via a Single Link DVI connection while maintaining a compact, lightweight design and includes a three-year warranty.

Suitable for

• Connecting a laptop with Mini-DisplayPort to a DVI monitor
• Using a DVI display as a secondary monitor for productivity or office work
• Simple video output conversions where single-link DVI resolution is sufficient

Key specifications

• Length: 0.2 m (20 cm)
• Connectors: Mini-DisplayPort to Single Link DVI (SL-DVI)
• Standard: DisplayPort 1.2
• Bandwidth: 4.95 Gbps
• Maximum supported resolution: 1920 x 1200 @ 60 Hz (single-link DVI)
• Colour: Black
• Weight: 0.036 kg
• Manufacturer part number (MPN): 0B47090
• EAN: 887037480407

How to use

Plug the Mini-DisplayPort end into the source device (for example a Lenovo ThinkPad) and connect the DVI end to the monitor using a compatible DVI cable if required. After connecting both ends, set the display mode in the operating system to mirror or extend the desktop as needed. No external power is required.

Recommendations

Use this adapter when single-link DVI resolution (up to 1920 x 1200 @ 60 Hz) meets your needs; for higher resolutions or multi-monitor chains consider interfaces that support higher bandwidths. Keep connectors clean and avoid excessive bending at cable ends to prolong service life.
