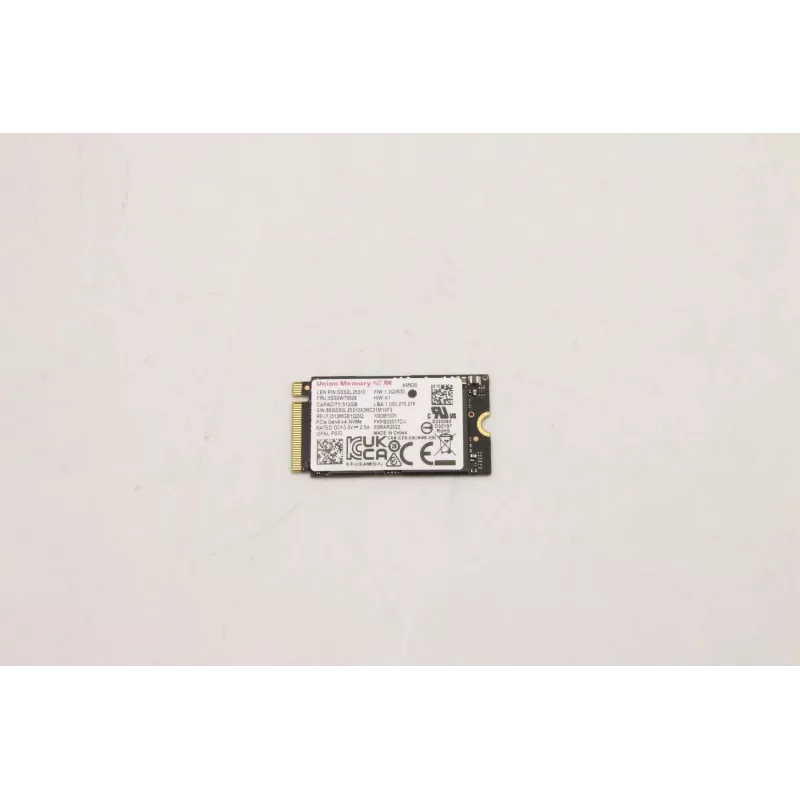

Lenovo 512GB M.2 2242 PCIe Gen4 x4 NVMe Opal SSD

Unlock blistering sequential reads up to 3500 MB/s with the Lenovo 512GB M.2 2242 PCIe Gen4 x4 NVMe SSD. This self-encrypting drive combines TCG Opal 2.0 hardware security with a compact 2242 form factor, making it the ideal upgrade for ultra-thin laptops and small-form-factor systems that demand both speed and data protection.

Overview

The Lenovo 5SS0W79506 is a high-performance solid-state drive engineered for modern computing. It leverages the PCIe Gen 4 x4 interface and NVMe 1.4 protocol to deliver exceptional responsiveness, reducing boot times and accelerating application loads. With a 512GB capacity, it offers ample space for your operating system, critical applications, and frequently accessed files.

What stands out

• Blazing-fast performance: up to 3500 MB/s sequential read and 2500 MB/s sequential write speeds.
• Hardware-based encryption with TCG Opal 2.0 for robust data security without performance compromise.
• Compact M.2 2242 form factor fits seamlessly into space-constrained devices.
• High endurance rating of 150 TBW ensures long-term reliability.
• Advanced features including TRIM support, S.M.A.R.T. monitoring, and end-to-end data protection.

Technical details

• Capacity: 512 GB
• Form Factor: M.2 2242
• Interface: PCIe Gen 4 x4
• NVMe Revision: 1.4
• Sequential Read Speed: Up to 3500 MB/s
• Sequential Write Speed: Up to 2500 MB/s
• Random Read IOPS: Up to 300,000
• Random Write IOPS: Up to 250,000
• Endurance: 150 TBW
• MTBF: 1,500,000 hours
• Power Consumption (Active): 3.5 W
• Power Consumption (Idle): 0.3 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Shock Resistance: 1500G / 0.5ms
• Vibration Resistance (Non-operating): 20G Peak
• Security: TCG Opal 2.0, Self-Encrypting Drive

Our verdict

The Lenovo 512GB M.2 2242 PCIe Gen4 SSD strikes an impressive balance between speed, security, and size. It's a top-tier choice for professionals who need reliable, hardware-encrypted storage in a compact package.
