LevelOne Splitter PoE de alta potencia Fast Ethernet, salida 24V AC

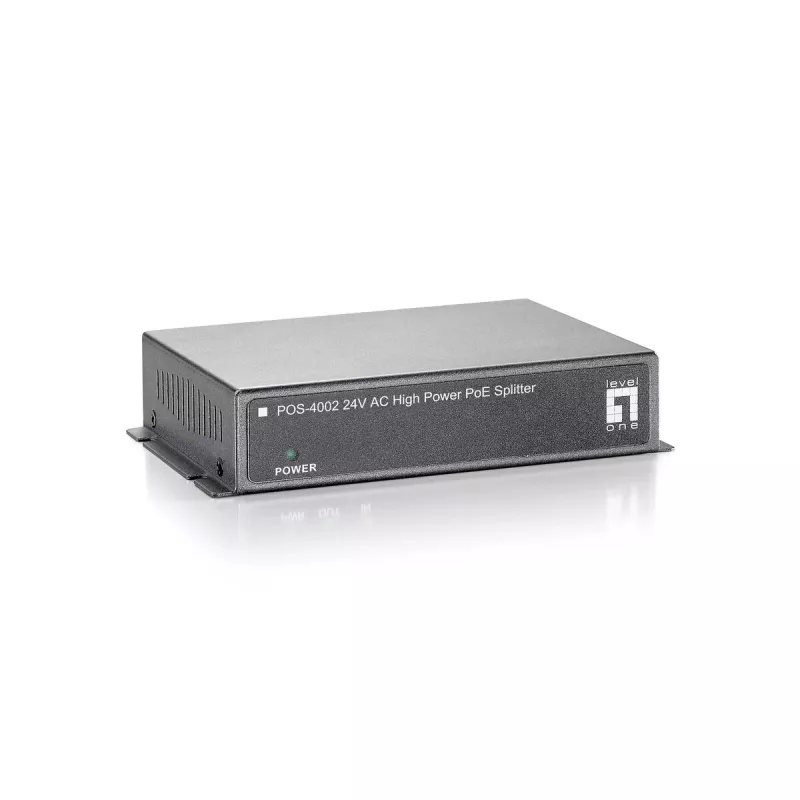

The POS-4002 PoE Splitter from LevelOne (model 552037) separates data and power from a Power over Ethernet connection, providing up to 24VAC at 1.6A to power devices that require AC input. It accepts a 10/100Base-T Ethernet input (data + power) and delivers data-only on the output port while supplying an AC output suitable for power-hungry devices such as security cameras. The compact black unit (120 × 90 × 28 mm) is compatible with Cat5 cabling and operates at 100 Mbps wire speed. It is designed for use with high-power PoE injectors or switches to extend Ethernet connectivity to devices that need more than standard PoE power.

Advantages

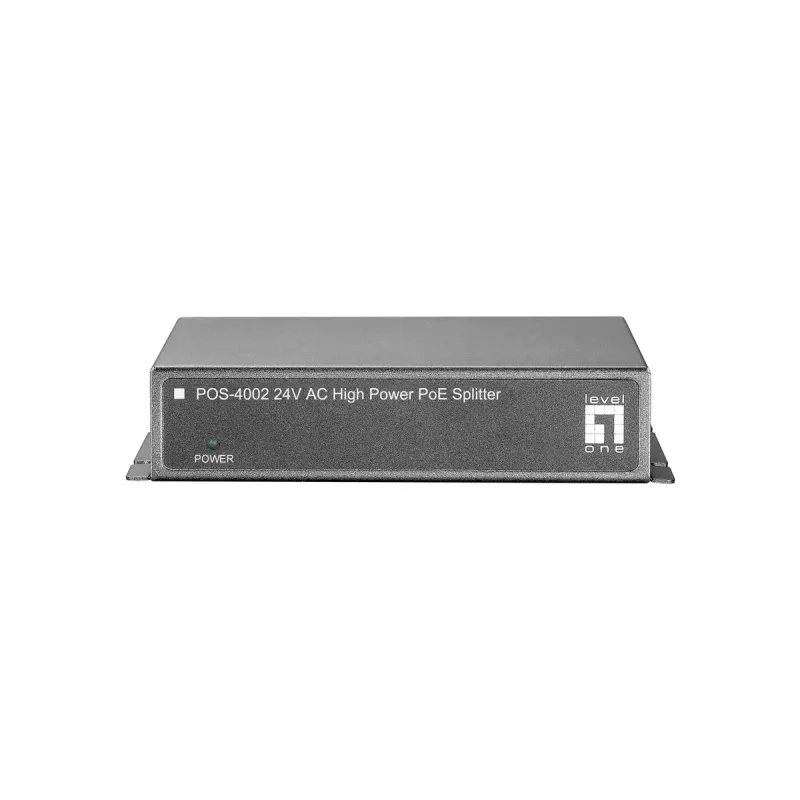

The POS-4002 provides a stable 24VAC/1.6A AC output and includes built-in current limit, short-circuit and overload protection to safeguard connected equipment. Its plug-and-play design requires no configuration and LED indicators show power status. The splitter supports standard 10/100Base-T connections and works with LevelOne high-power PoE injectors and switches, enabling deployment of AC-powered devices over existing Ethernet infrastructure.

Suitable for

• IP network security cameras requiring 24VAC power
• Remote devices that need separate AC power and Ethernet data
• Installations where existing Cat5/Cat5e cabling is used

Key specifications

• AC output: 24VAC, up to 1.6 A
• Ethernet: 10/100Base-T, 100 Mbps wire speed

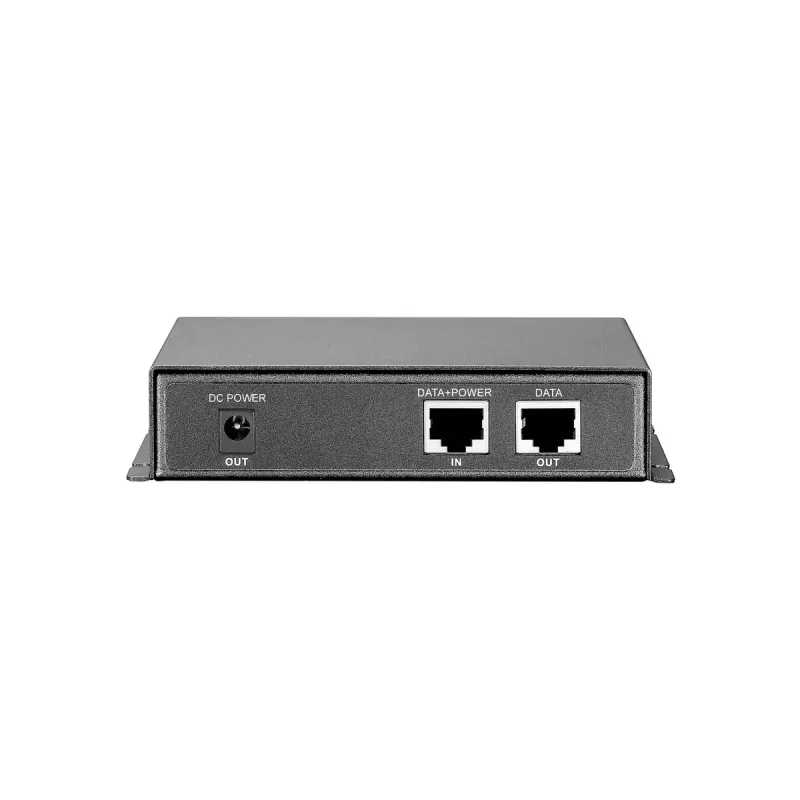

• Ports: 1 × Ethernet input (data + power), 1 × Ethernet output (data only)
• Dimensions: 120 × 90 × 28 mm
• Colour: Black

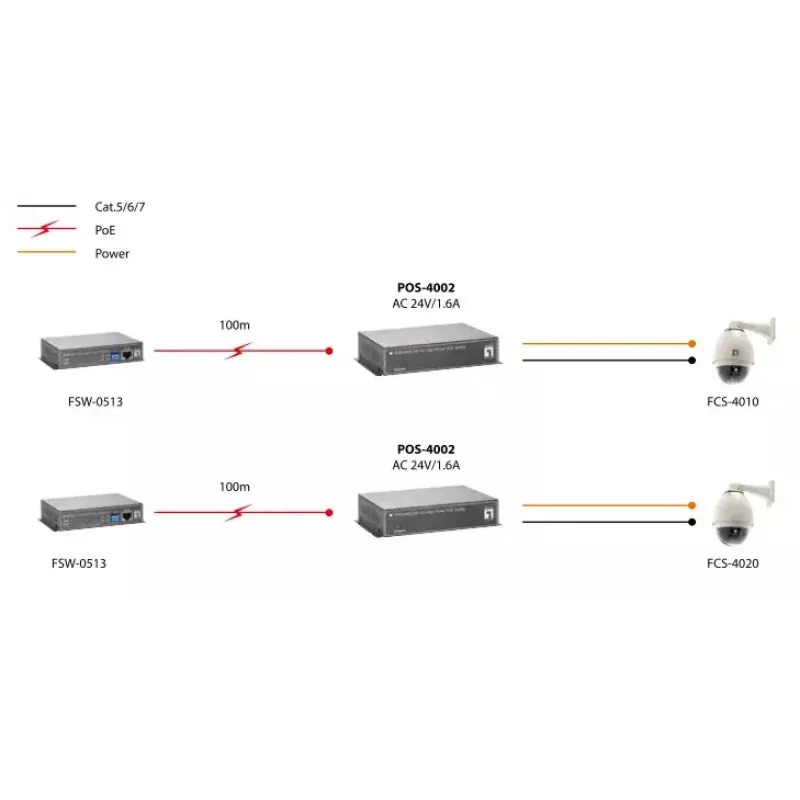

• Compatibility: Works with high-power PoE injectors/switches (e.g., LevelOne POI-4000/FSW-0513 series)

How to use

Connect the Ethernet cable carrying PoE from a compatible PoE injector or switch to the POS-4002 input port. Then connect the output Ethernet port to the data input of your network device. Use the AC output leads or connector to power the device that requires 24VAC. Verify LED indicators for power status and ensure the upstream PoE source can supply sufficient power for the connected load.

Recommendations

Use with Cat5/Cat5e cabling and a compatible high-power PoE injector or switch. Do not exceed the 24VAC/1.6A output rating; ensure upstream PoE equipment supports the required power budget. Install the splitter in a dry, ventilated location and avoid exposing it to extreme temperatures or moisture.
