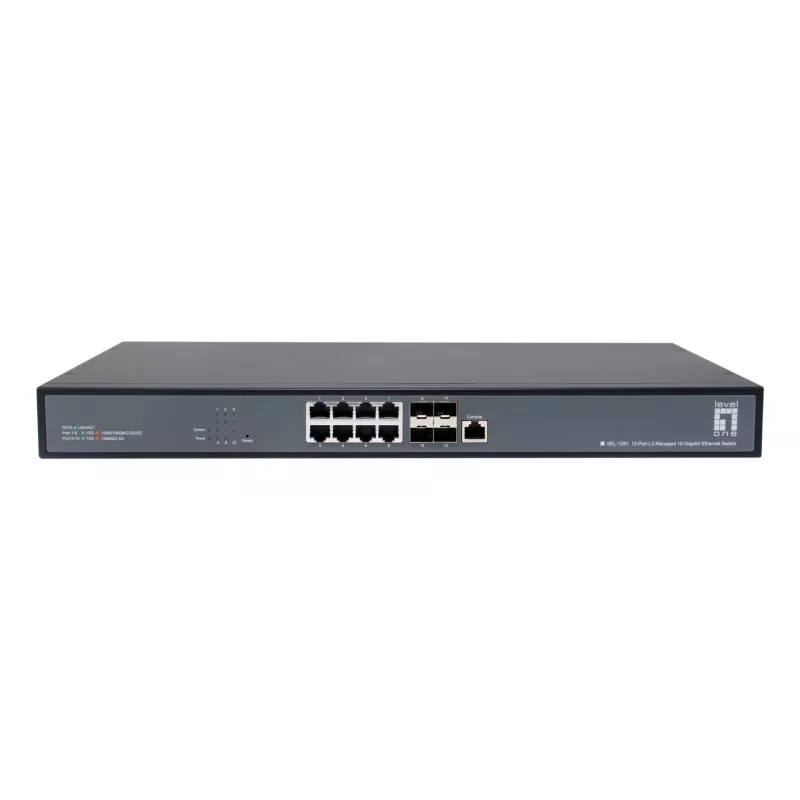

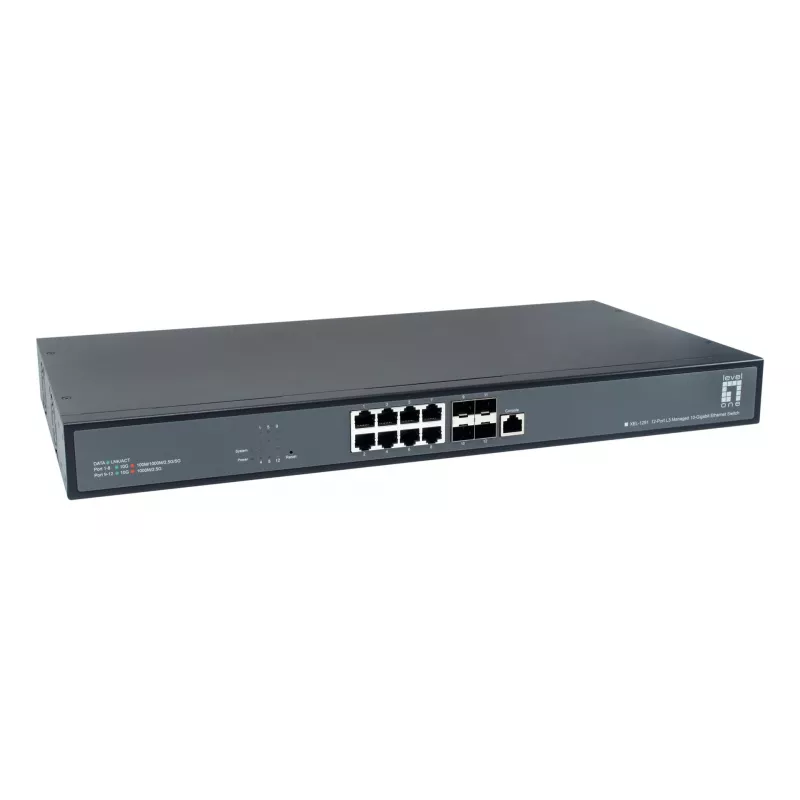

LevelOne switch gestionado L3 de 12 puertos 10 Gigabit, 8 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/5G/10G SFP+ Uplinks, 240Gbps Non-Blocking Fabric, montaje en rack 19"

The LevelOne 12-Port L3 Managed 10-Gigabit Switch (XEL-1291) delivers high-performance Layer 3 switching with 8 x 1G/2.5G/5G/10GBASE-T RJ45 ports and 4 x 1G/2.5G/10GBASE-X SFP+ uplinks, providing a non-blocking switching capacity of 240 Gbps. Designed for demanding enterprise networks, this 1U rackmount switch supports advanced routing protocols, comprehensive security features, and robust management options.

Advantages

Experience ultra-fast data transfer with multi-gigabit support on all ports, enabling seamless connectivity for high-bandwidth applications such as video streaming, virtualization, and data-intensive workloads. The switch's Layer 3 capabilities allow efficient inter-VLAN routing, reducing network latency and improving overall performance. With a fan-based smart cooling system, the switch ensures reliable operation even in demanding environments.

Suitable for

• Enterprise campus networks requiring high-speed backbone switching
• Data centers needing low-latency 10GbE connectivity
• Video surveillance systems with high-resolution IP cameras
• Virtualized server environments
• Small to medium businesses scaling their network infrastructure

Key specifications

• 12 ports: 8 x RJ45 (1G/2.5G/5G/10G) + 4 x SFP+ (1G/2.5G/10G)
• Switching capacity: 240 Gbps
• Forwarding rate: 238.08 Mpps
• Jumbo frame support: up to 12K bytes
• MAC address table: 32K entries
• VLAN support: 4K IEEE 802.1Q VLANs
• Layer 3 routing: Static, RIP v1/v2, OSPF v2/v3
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Telnet, SSH
• Security: ACLs, Port Security, 802.1X, RADIUS/TACACS+
• QoS: 802.1p, DSCP, port-based, rate limiting

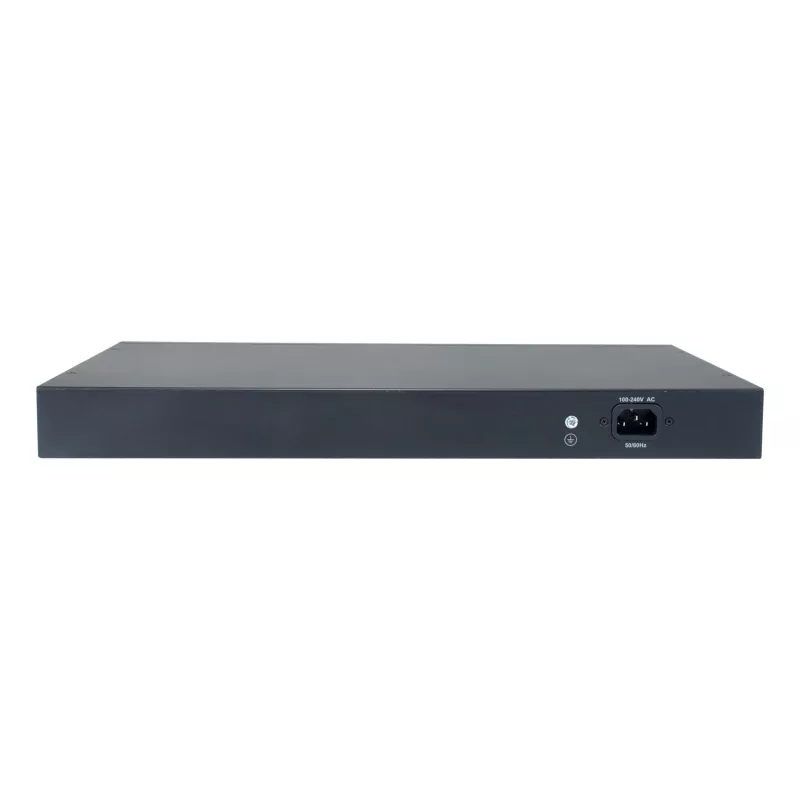

• Power supply: Internal AC 100-240V, 50/60Hz
• Max power consumption: 60 W
• Form factor: 1U 19-inch rackmount
• Operating temperature: 0°C to 50°C

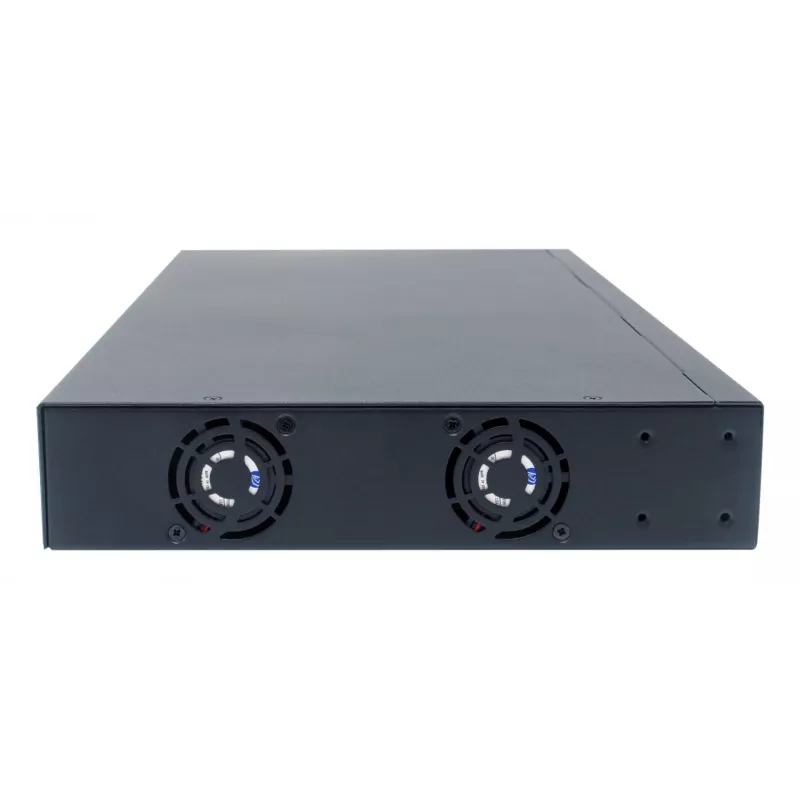

• Cooling: Smart fan

Recommendations

For optimal performance, use Category 6a or higher cabling for 10GBASE-T connections. Pair with LevelOne SFP+ transceivers for fiber uplinks. Ensure adequate ventilation in the rack to maintain operating temperature.
