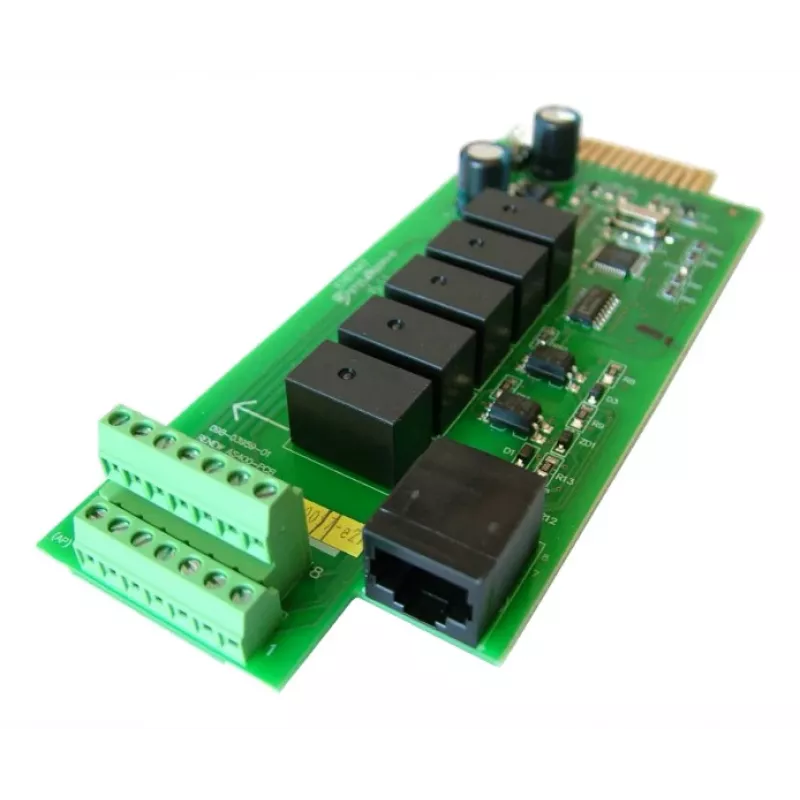

LevelOne tarjeta de contacto seco UPS para la serie UPS-2100 (UAC-DCC01)

The LevelOne UAC-DCC01 is a dedicated dry contact card designed for seamless integration with the LevelOne UPS-2100 series. It provides reliable remote monitoring and control of UPS status signals, enabling efficient management of power events in critical environments.

Advantages

Enables remote UPS status monitoring via potential-free relay contacts, allowing integration with building management systems (BMS) or custom alert setups. Supports six distinct signals for comprehensive power event detection, including utility failure, low battery, and UPS shutdown. Easy installation into the internal slot of compatible UPS units.

Suitable for

• IT professionals managing server rooms or network closets
• Facility managers integrating UPS alerts into BMS
• Users of LevelOne UPS-2100 series (UPS-2101, UPS-2102, UPS-2103, UPS-2106, UPS-2110)

Key specifications

• Product Type: UPS Dry Contact Card
• Compatibility: LevelOne UPS-2100 Series
• Interface: Dry Contact (Relay Contacts)
• Number of Output Signals: 6
• Contact Configuration: Normally Open (NO) / Normally Closed (NC) selectable per signal
• Max. Switching Voltage (DC): 30 VDC
• Max. Switching Current (DC): 1 A
• Max. Switching Voltage (AC): 125 VAC
• Max. Switching Current (AC): 0.5 A
• Connection Interface: Terminal Block
• Installation: Internal slot in compatible UPS

Recommendations

For optimal performance, ensure your UPS firmware is up-to-date and follow the installation guide provided with the card. This accessory is essential for any setup requiring remote UPS status visibility.
