LICATEC canaleta de cables 50 x 75 mm libre de halógenos gris 7672-1

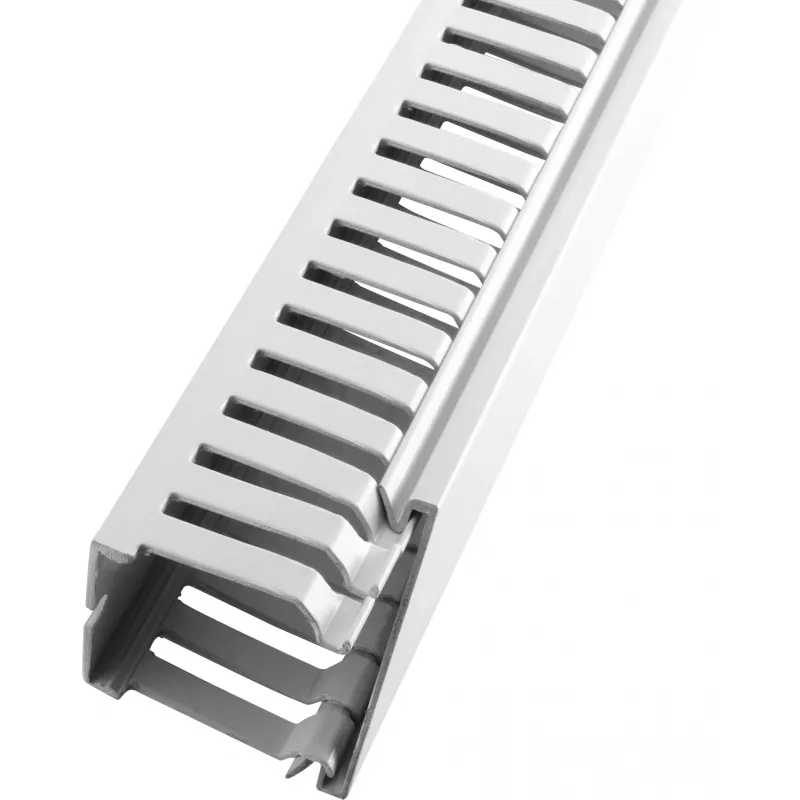

The LICATEC Wiring Duct 7672-1 is a high-quality, halogen-free cable management solution designed for industrial electrical installations and control cabinets. With dimensions of 50 mm width and 75 mm height, this duct provides ample space for organizing and protecting cables. Made from a halogen-free PC/ABS blend, it ensures safety and environmental compliance. The duct features narrow slots for easy cable insertion and a perforated base for secure screw mounting. It comes with a lid and meets DIN EN 50085-2-3 standards. Its self-extinguishing, flame-retardant properties (UL94 V-0) make it suitable for demanding environments.

Advantages

Halogen-free material reduces toxic smoke in case of fire. Self-extinguishing and flame-retardant (UL94 V-0) for enhanced safety. Easy cable installation with narrow slots and secure lid. Durable construction suitable for industrial use. Complies with DIN EN 50085-2-3 standards.

Suitable for

• Industrial electrical installations
• Control cabinets
• Building automation systems
• Data centers and server rooms

Key specifications

• Product Type: Wiring Duct
• Series: 7672-1
• Material: Halogen-free plastic (PC/ABS blend)
• Width: 50 mm
• Height: 75 mm
• Length: 2000 mm
• Color: Grey (RAL 7035)
• Halogen-free: Yes
• Standard Compliance: DIN EN 50085-2-3
• Fire Behavior: Self-extinguishing, flame-retardant (UL94 V-0)
• Operating Temperature: -25 °C to +90 °C
• Slot Type: Narrow slots
• Slot Width: 4.5 mm
• Slot Pitch: 6.5 mm
• Mounting Type: Base perforation for screw mounting
• Lid Included: Yes

Recommendations

For optimal cable management, pair this wiring duct with compatible cable ties and mounting accessories. Ensure proper grounding and follow local electrical codes during installation.
