Lindy 45382 cable de red azul 30 m Cat6a S/FTP (S-STP)

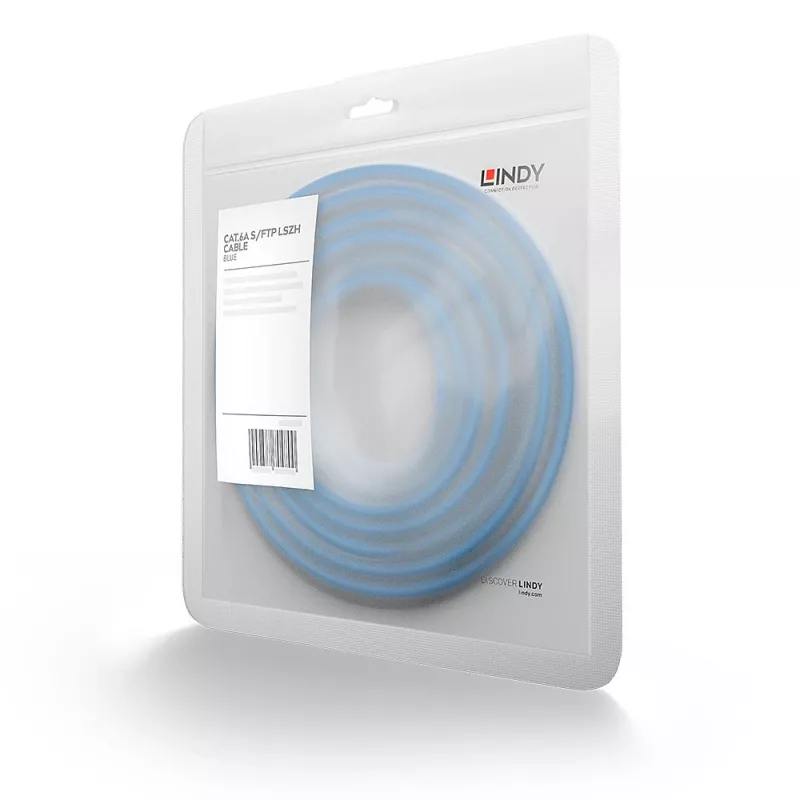

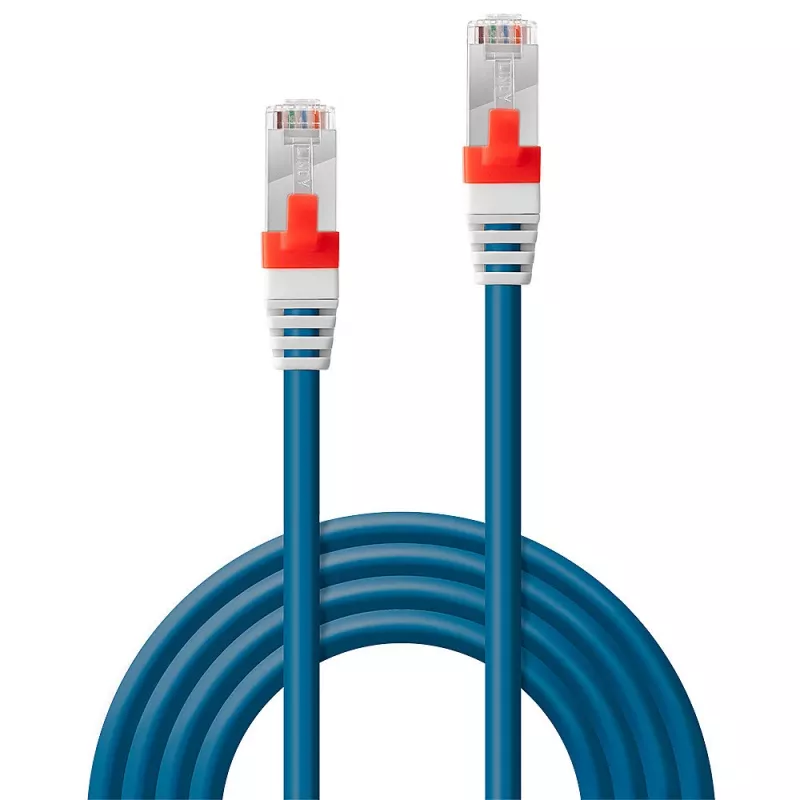

Cat.6A S/FTP networking cable designed for up to 500 MHz bandwidth and compatible with Ethernet standards up to 10GBase-T. This Lindy Cat.6(A) SSTP/S/FTP RJ-45 cable is 30 m long, blue, and fitted with RJ-45 connectors on both ends. The cable is manufactured and tested to ISO/IEC 11801 and is packaged individually in a polybag.

Advantages

Shielding consists of an overall braid and foil around each twisted pair (S/FTP), which reduces electromagnetic interference and crosstalk. Gold-plated contacts provide corrosion-resistant, reliable connections over long periods. The snagless strain relief protects the connector latch during installation and removal. The halogen-free LSZH sheath lowers smoke emission and prevents toxic halogen release, making the cable suitable for use in public or confined spaces.

Suitable for

• 10 Gigabit Ethernet (10GBase-T) network links
• High-speed data transmission over distances up to 30 m
• Shielded installations in electrically noisy environments
• Structured cabling in offices, server rooms and public areas

Key specifications

• Standard: Cat.6A (ISO/IEC 11801)
• Shielding: S/FTP (overall braid + foil for each pair)
• Bandwidth / Frequency: up to 500 MHz
• Ethernet support: up to 10GBase-T

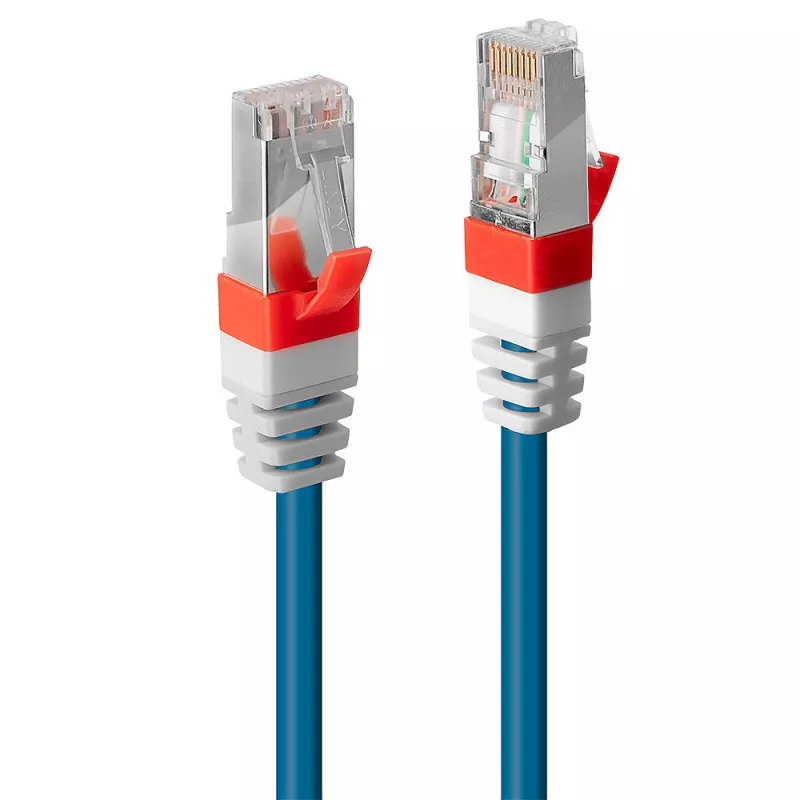

• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Length: 30 m
• Sheath: LSZH (halogen-free)
• Color: Blue

How to use

Connect the RJ-45 plugs into compatible Ethernet ports on switches, routers, network interface cards or patch panels. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and sources of mechanical stress; use the snagless strain relief when pulling through conduits or patching panels. Test the link with appropriate network testing equipment after installation to verify performance up to 10GBase-T.

Recommendations

For optimal performance, avoid exceeding the cable’s bend radius and keep distances within specified Ethernet limits. Use shielded patch panels and properly grounded installations when deploying S/FTP cables to maintain shielding effectiveness.
