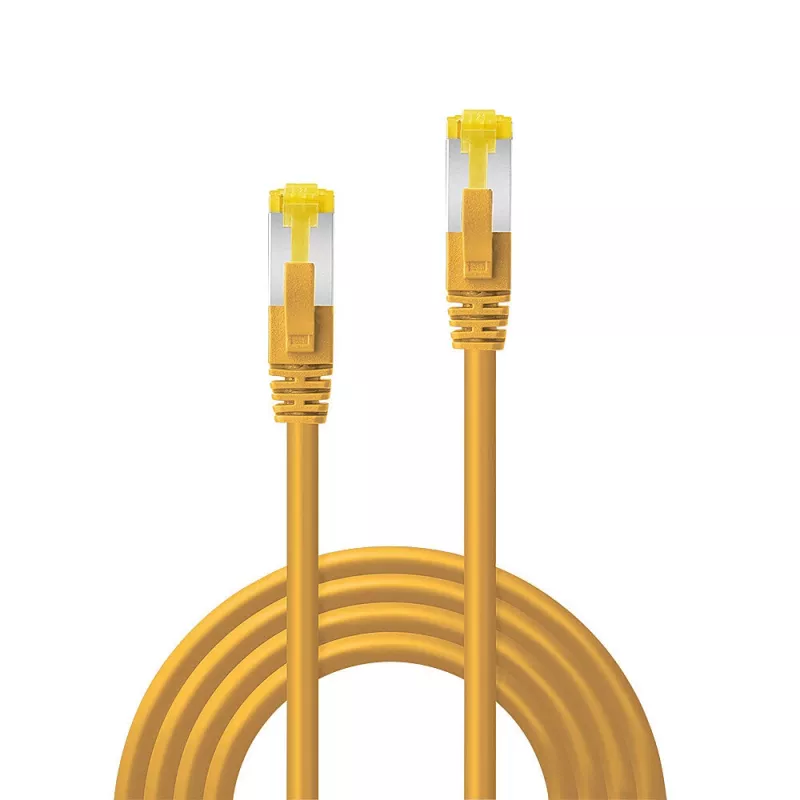

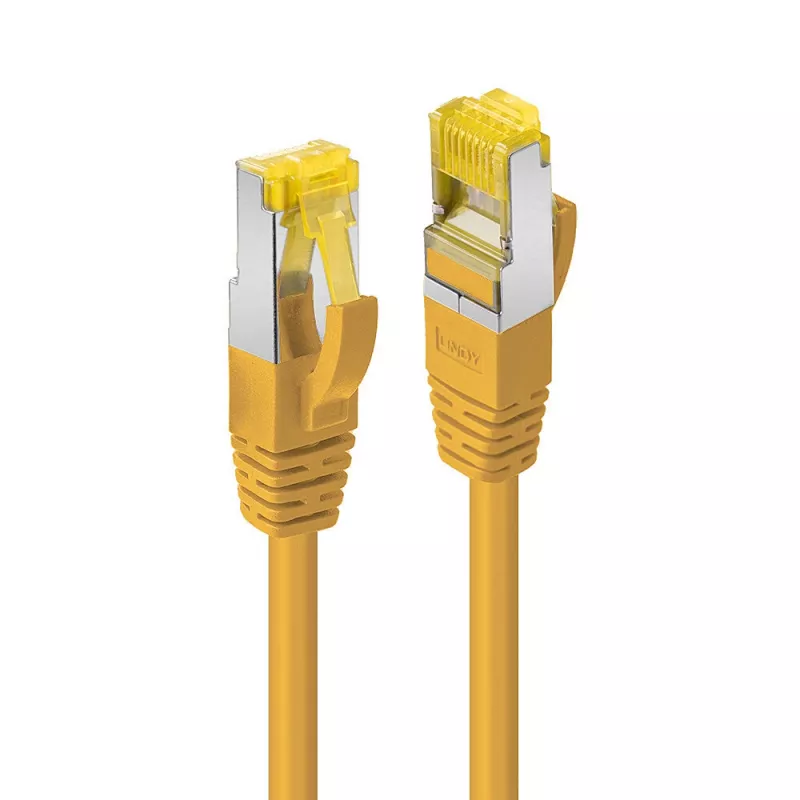

Lindy 47668 Cable de red amarillo 15 m Cat7 S/FTP (S-STP)

Cat.7 S/FTP network cable with support for bandwidth up to 600 MHz, designed for high-speed Ethernet up to 10GBase-T. The cable features total braided shielding with individual pair foil shielding (S/FTP) and is manufactured and tested to ISO/IEC 11801. Connectors are gold-plated and the cable is available in multiple lengths and colours; the product is supplied individually in a polybag. Note: although the cable uses Cat.7 materials, the RJ45 connector is used in practice and the cable imprint may read "Cat.6A S/FTP patch cords with 600MHz raw cable".

Advantages

The S/FTP construction provides strong protection against electromagnetic interference and crosstalk across frequencies up to 600 MHz, supporting stable 10GBase-T links. Gold-plated contacts reduce corrosion and maintain reliable connections over time. A snagless strain-relief connector design protects the latch during installation and removal. The cable is produced and tested to international ISO/IEC 11801 standards.

Suitable for

• Data centres and server rooms
• Rack-mounted network and control cabinets
• High-speed Ethernet links up to 10GBase-T
• Patching and structured cabling where screened pairs are required

Key specifications

• Cable category: Cat.7 (S/FTP construction)
• Bandwidth / operating frequency: up to 600 MHz
• Shielding: braided overall + foil per pair (S/FTP)
• Connector type: RJ‑45 (gold-plated contacts)
• Standards: manufactured/tested to ISO/IEC 11801
• Supported Ethernet: up to 10GBase-T
• Available lengths: 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m, 30 m
• Available colours: Black, Blue, Grey, Red, White, Yellow, Green

How to use

Install the cable by inserting the RJ‑45 connector into the corresponding port until the latch clicks into place. Use the snagless strain-relief design to avoid damaging the connector tab during routing through panels or trays. For patching, cut-to-length and connect the required ends; when replacing cables, disconnect by pressing the latch and pulling the connector straight out to avoid stress on the cable. Follow standard cabling practices to maintain bend radius and avoid sources of strong interference.

Recommendations

For optimal performance in environments with significant electromagnetic interference, use the S/FTP Cat.7 cable with properly grounded shielded network equipment and avoid sharp bends or excessive pulling force. If labelling or colour-coding is required, choose the yellow cable option (Lindy 47668) to improve visibility in installations.
