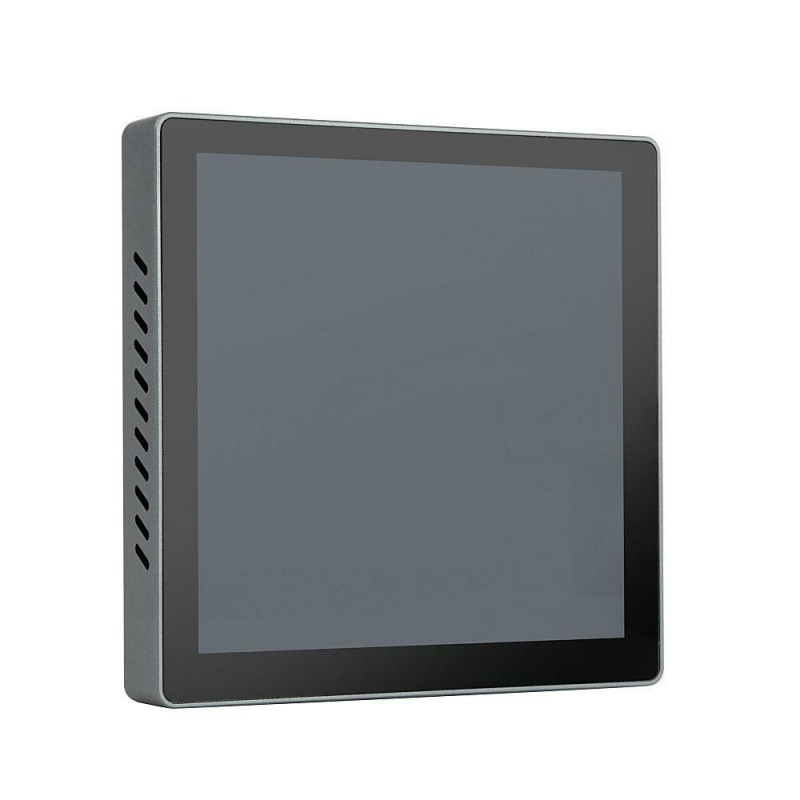

Lindy Control Touchpad, 4"

The Lindy Control Touchpad, 4 inch is a programmable wall-mount touchpad for control applications. It can be programmed using the Lindy Pro Control software and offers flexible control via LAN and RS-232.

Key features

• Programmable 4-inch touchpad for wall mounting
• Simple programming with Lindy Pro Control software
• Flexible control via LAN and RS-232
• Supports PoE or external power supply

Specifications

• Brand: Lindy
• MPN: 32310
• CPU: ARM Cortex-A55 1.8 GHz
• Operating system: Android 11.0
• RAM: 4 GB DDR4
• Flash storage: 32 GB EMMC
• Interface standard: PoE 802.3af
• Supported bandwidth: 1 Gbit/s
• Max. distance: 100m
• Transmission medium: Cat.6
• Special features: programmable via Lindy Pro Control software and app
• Control interfaces: 1 x RJ45 PoE, 1 x RS485 (3-pin terminal block), 1 x Micro-USB debug port (socket)
• Power supply: 2-pin terminal block
