Llave combinada Gedore 2297388 profundidad 80 mm altura 50 mm peso 319 g

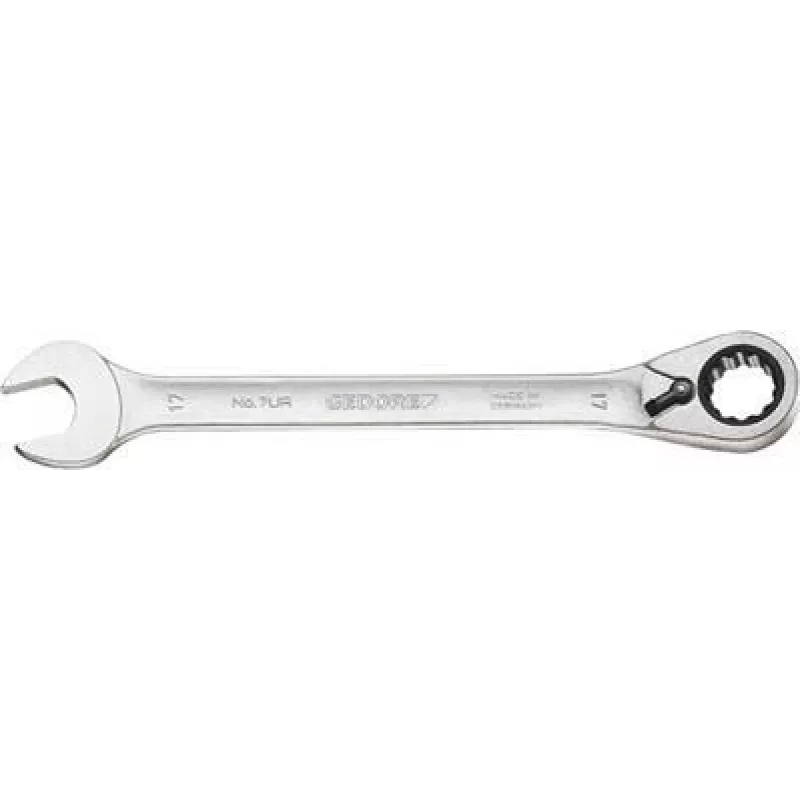

The Gedore 2297388 combination wrench is a forged, matt chrome-plated hand tool that integrates a ring end and an open end in the same size. The ring is offset 13° from the shaft and uses a UD-profile with a working angle of 7° for sizes 8–15 mm and 6° for sizes 16–24 mm. The tool features a hollow profile shaft for comfortable gripping, warp-resistant geometry with a double T-girder effect, and high torque transfer. Materials and surface treatments include Gedore vanadium steel (31CrV3), a matt chrome finish, a manganese-phosphated locking insert and pawl, and precisely ground jaws to spanner size. The wrench accepts ratcheting use with lever change and can be converted to a (bit) ratchet when used with adaptor 7 RA or 7 RB (ordered separately). European patent applied.

Advantages

The combination wrench offers high torque transfer and precise jaw fit due to exactly ground jaws, plus improved handling from the hollow profile shaft. The warp-resistant double T-girder geometry increases stability under load. Ratchet loosening and fast tightening are possible via a changeable lever mechanism, and durable material treatments—31CrV3 vanadium steel and matt chrome-plating—provide long service life and reduced glare. Compatibility with adaptors 7 RA or 7 RB extends functionality to (bit) ratchet applications.

Suitable for

Key specifications

How to use

Select the correct wrench size and position the open or ring end on the fastener. For ratchet loosening or fast tightening, engage the ratchet mechanism and operate the lever to change direction as required. To convert the wrench for use as a (bit) ratchet, fit adaptor 7 RA or 7 RB (sold separately) before applying torque. Apply steady force and ensure the jaws seat fully on the fastener to avoid rounding.

Recommendations

Use the Gedore 2297388 on clean, correctly sized fasteners and avoid sudden impact loads. Store dry to preserve the matt chrome finish and manganese-phosphated components. Use only compatible adaptors (7 RA or 7 RB) for ratchet-bit applications.
