Llave dinamométrica Wera 05075830001 Nm mecánica 275mm

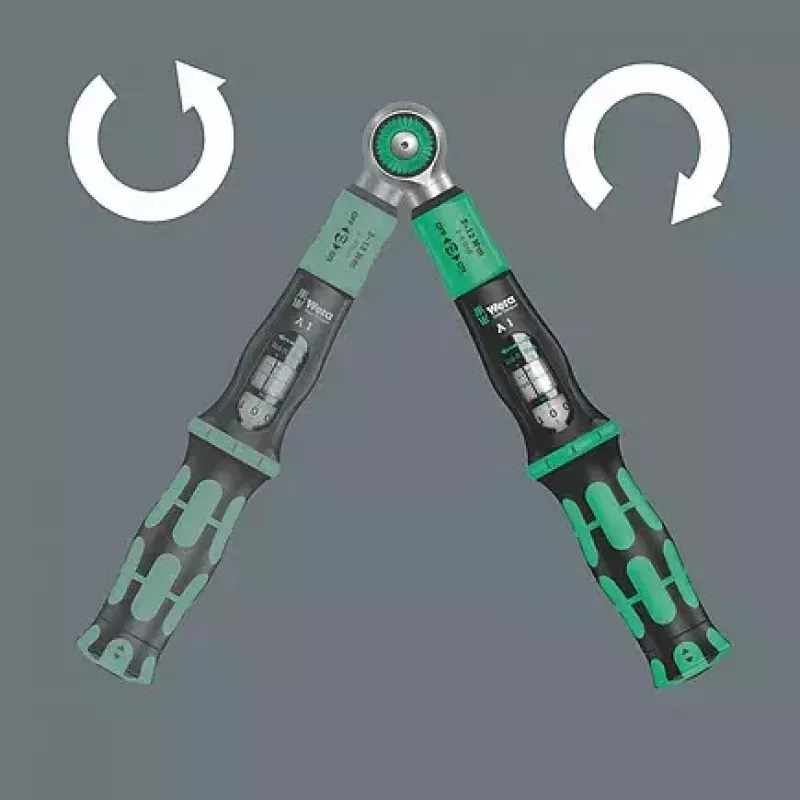

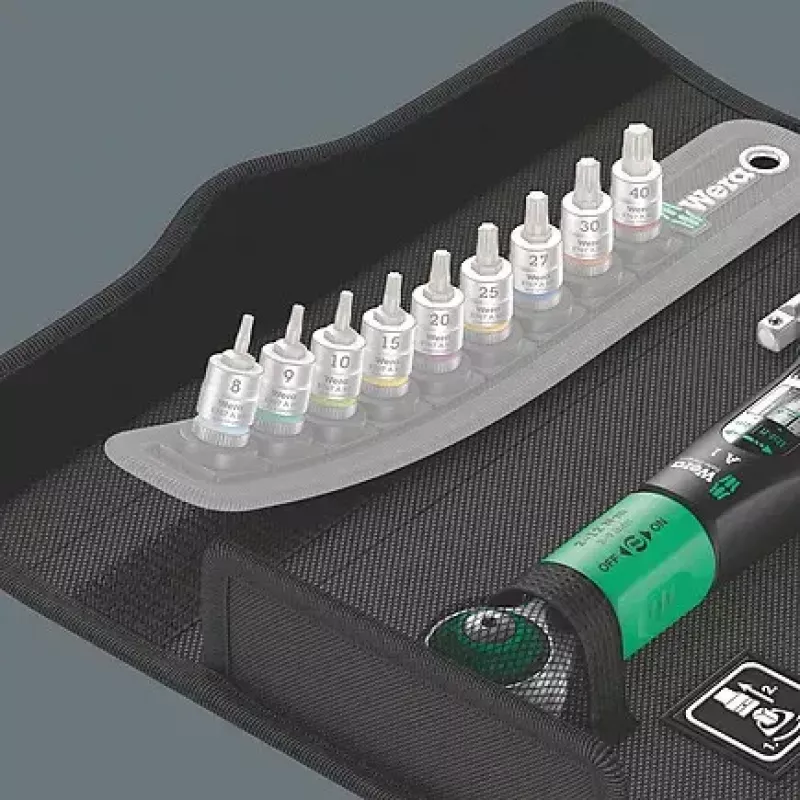

The Wera 05075830001 click torque wrench set includes a 1/4" torque wrench with a slide-over mechanism and a robust textile storage box. The wrench prevents overtightening by locking once the preset torque is reached, allowing controlled clockwise and counterclockwise torque application within a setting range of 2 to 12 Nm. The set contains the torque wrench, eight 1/4" sockets and a short extension, providing a compact solution for precise torque work.

Advantages

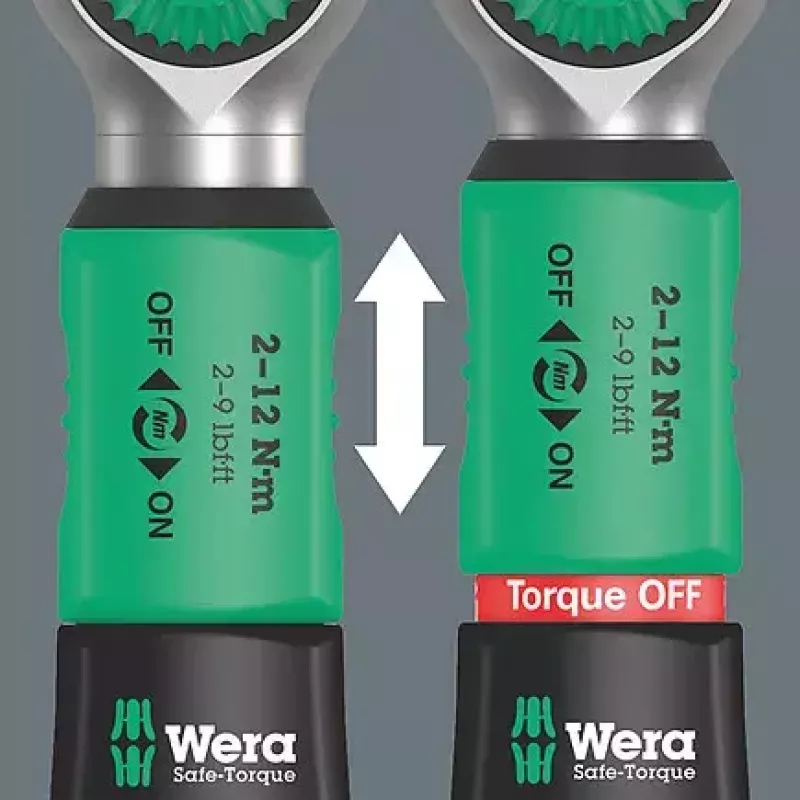

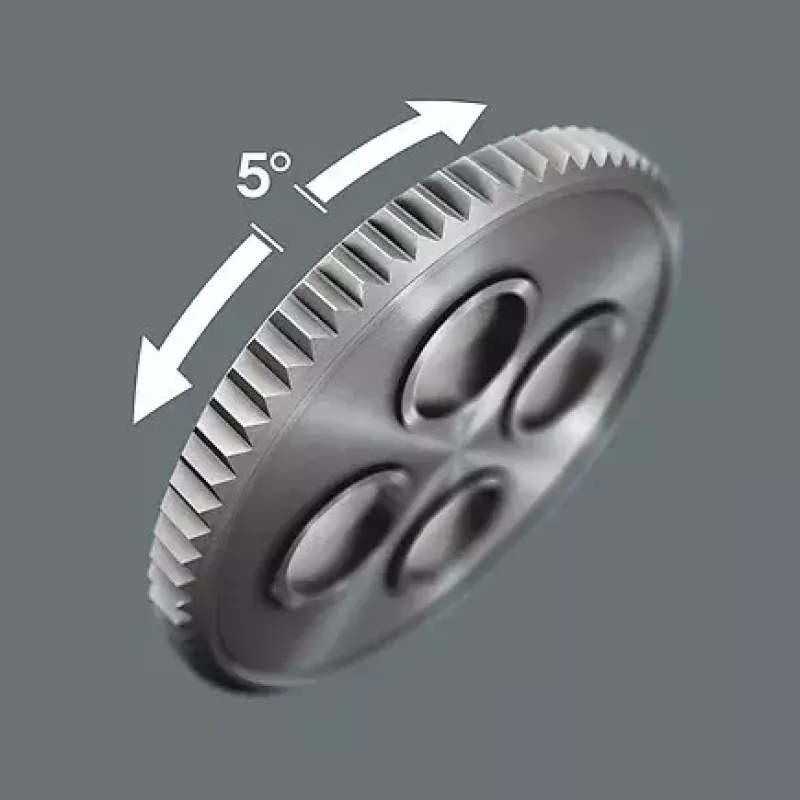

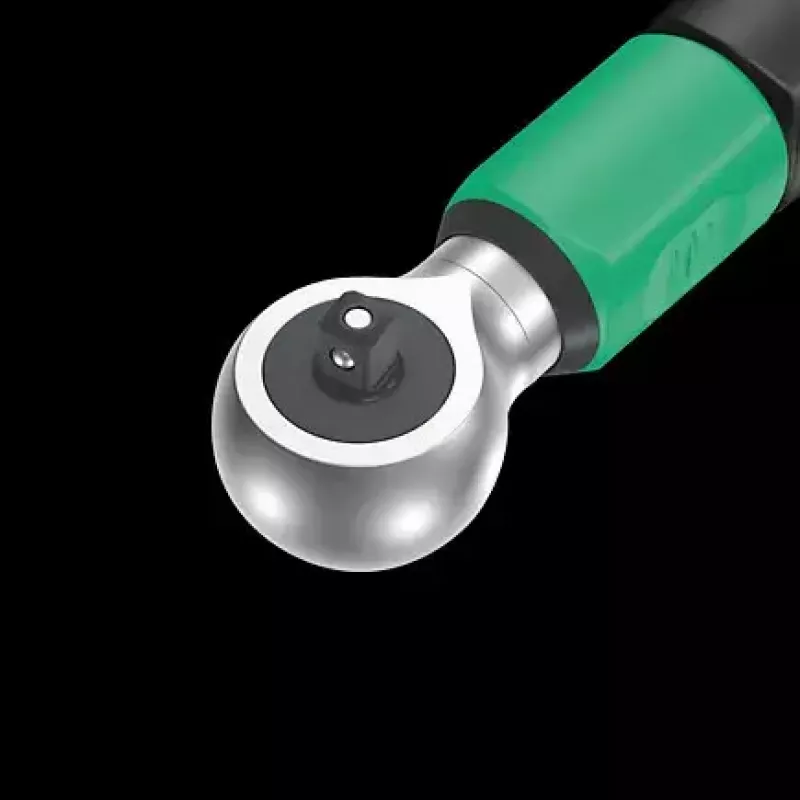

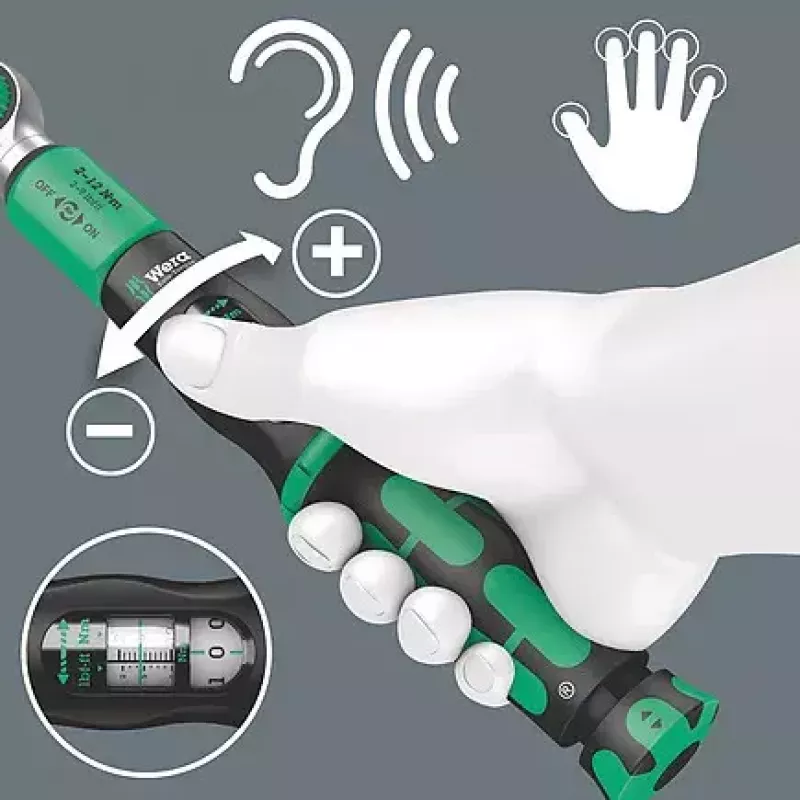

The torque wrench provides audible and tactile clicks when scale values are reached, making it easy to set and confirm the desired torque. The Torque Lock function enables use as a conventional ratchet without torque limitation, allowing work that requires rotation angles. A 1/4" square head meets DIN 3122 breaking torque requirements, and a return angle of only 5° makes the ratchet usable in confined spaces.

Suitable for

• Precision fastening tasks on small fasteners and assemblies
• Maintenance and repair work on bicycles, motorcycles and small engines
• Electronics and electrical component assembly where controlled torque is required
• Workshop and field service tasks requiring a compact torque solution

Key specifications

• Brand: Wera
• Model / MPN: 05075830001
• Type: Mechanical click torque wrench set
• Drive size: 1/4" (6.35 mm)
• Torque range: 2–12 Nm
• Length: 275 mm
• Return angle: 5°

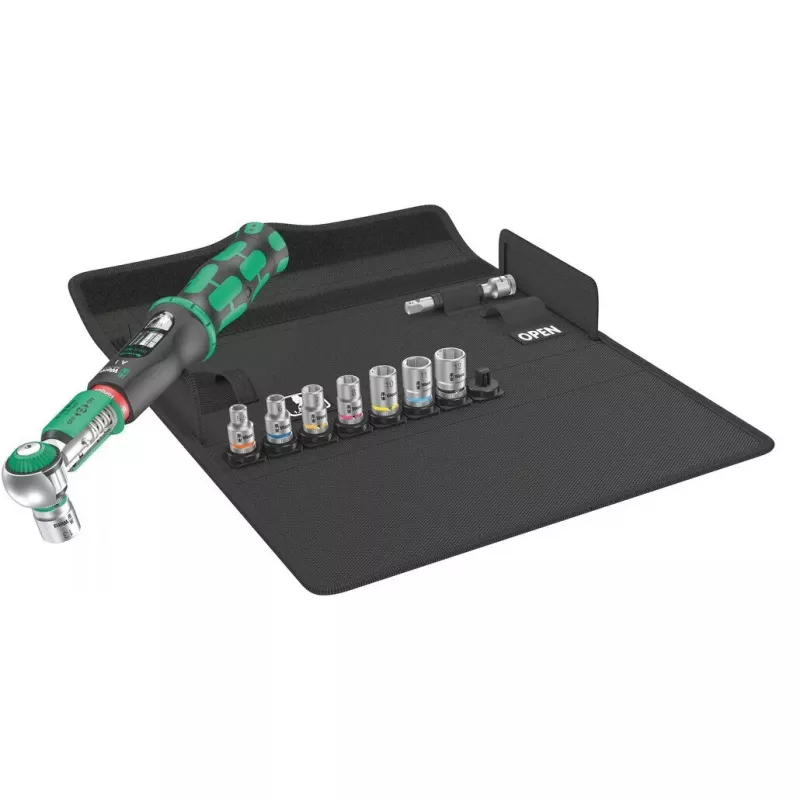

• Includes: torque wrench, 8 sockets (1/4"), short extension, textile box
• EAN: 4013288223005

How to use

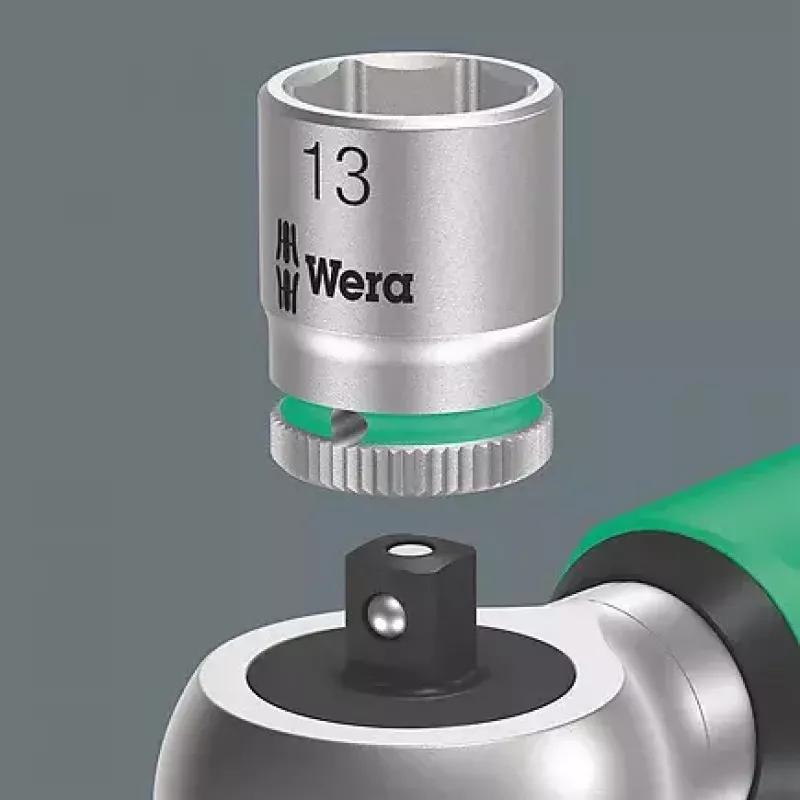

Select the required socket and fit it to the 1/4" square head. Set the desired torque value between 2 and 12 Nm using the scale; you will hear and feel clicks when approaching set values. Turn the wrench in the required direction; the tool locks at the preset torque to prevent overtightening. To use the ratchet function without torque, engage the Torque Lock. Use the short extension if access is limited and the textile box for storage and transport.

Recommendations

Regularly check calibration and avoid using the wrench to loosen fasteners at high torque; use the Torque Lock ratchet mode for non-torque applications. Store the tool clean and dry in the supplied textile box to maintain accuracy.
