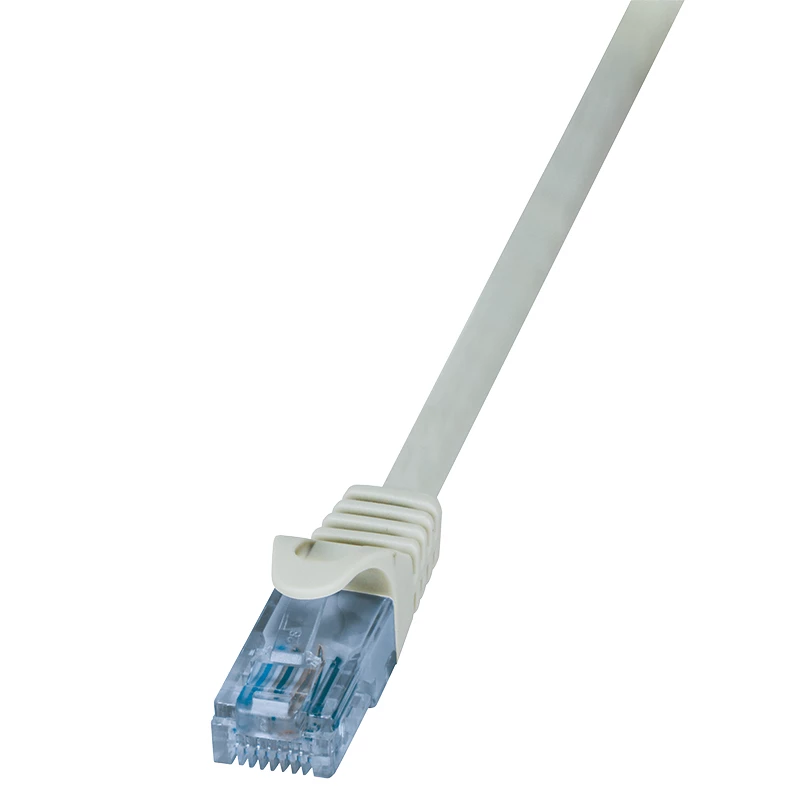

LogiLink cable de conexión Cat.6a UTP 10m gris

Experience 10 Gigabit Ethernet speeds with this 10-meter Cat.6a UTP patch cable, engineered for high-performance network connectivity.

Overview

The LogiLink CP3092U is a Category 6a unshielded twisted pair (UTP) patch cable, designed to support data transfer rates up to 10 Gbps and bandwidth up to 500 MHz. With a length of 10 meters, it provides ample reach for connecting devices in home or office environments. The cable features RJ45 male connectors on both ends, wired to the TIA/EIA 568B standard, and is constructed with stranded copper conductors (AWG 26/7) for flexibility and durability. The grey PVC jacket ensures protection and easy identification.

What stands out

• Supports 10GBASE-T Ethernet for high-speed networking.
• Backward compatible with Cat.6, Cat.5e, and Cat.5 standards.
• Stranded copper conductors offer flexibility for tight installations.
• RoHS and REACH compliant for environmental safety.
• Operating temperature range from -20°C to 60°C for versatile use.

Technical details

• Cable Type: Patch Cable
• Category: Cat.6a
• Shielding: UTP (Unshielded Twisted Pair)
• Length: 10.0 m
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (Stranded)
• Jacket Material: PVC
• Wiring Standard: TIA/EIA 568B
• Number of Pairs: 4
• Outer Diameter: Approx. 6.0 mm
• Compliance: RoHS, REACH

Our verdict

A reliable and high-speed networking solution, this Cat.6a cable delivers exceptional performance for demanding applications.
