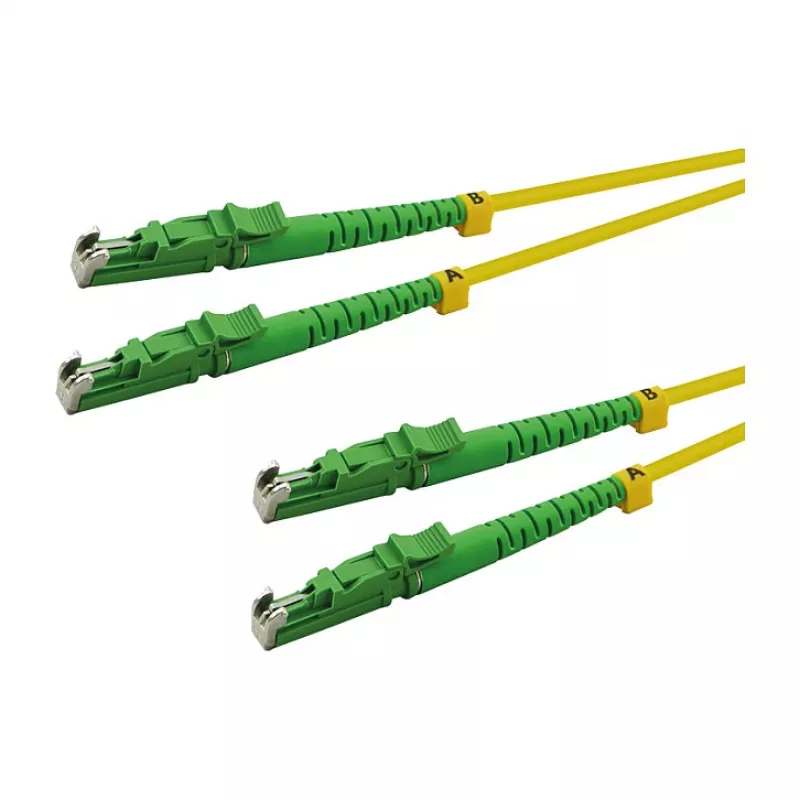

Cable de fibra óptica patch OS2 monomodo dúplex LSH/APC a LSH/APC 1m amarillo LSZH

In high-density data centers, network engineers need reliable fiber links between patch panels and switches. This LogiLink OS2 duplex patch cable connects LSH/APC ports with precision, ensuring minimal signal loss for high-speed optical transmission. At 1 meter, it's ideal for patching between adjacent equipment in racks or wall outlets.

Key specifications

• Fiber type: OS2 single-mode (9/125 µm), bend-insensitive
• Connectors: LSH/APC to LSH/APC, duplex configuration
• Polish: APC (angled physical contact) for low back reflection
• Insertion loss: ≤ 0.3 dB; return loss: ≥ 60 dB
• Jacket: LSZH, yellow, 3.0 mm diameter
• Length: 1.0 m
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS, REACH, CE

Why choose it

This cable is built for performance and safety. The OS2 fiber supports long-haul and high-bandwidth applications at 1310 nm and 1550 nm. The LSZH jacket emits low smoke and zero halogen, making it suitable for enclosed spaces. Zirconia ceramic ferrules ensure durable, precise mating.

Ideal use cases

• High-speed data networks and FTTx deployments
• LAN and SAN backbone connections
• Data center patching between switches, routers, and patch panels
• Telecom rooms and enterprise structured cabling

Good to know

The cable operates from -20°C to 70°C and withstands a minimum bend radius of 10 mm static / 20 mm dynamic, allowing tight routing without performance degradation. Each cable is individually tested to ensure compliance with optical performance standards.
