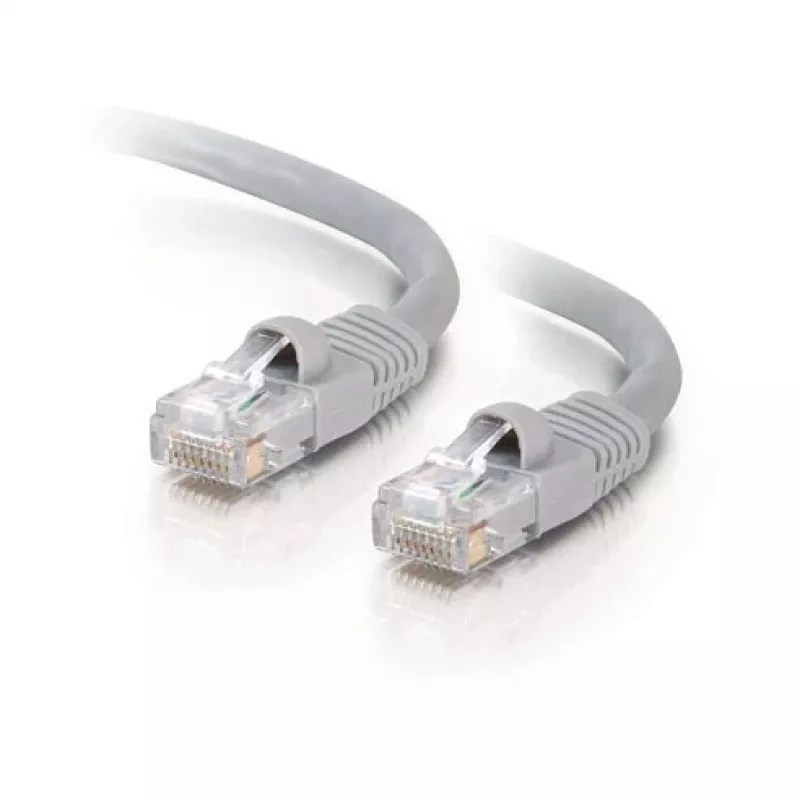

LogiLink Cable de red Cat.6 U/UTP de cobre, 0,5 m, gris, LSZH, PrimeLine

For short, high-density connections where every centimeter counts, this 0.5-meter Cat.6 patch cable from LogiLink's PrimeLine series delivers Gigabit performance in a compact, halogen-free package. Unlike many budget cables that use copper-clad aluminium, the CQ2022U is built with bare copper conductors (26/7 AWG) for superior signal integrity and full PoE support up to 4PPoE. The unshielded U/UTP design keeps the cable slim and flexible, while the LSZH jacket ensures low smoke and zero halogen emissions in case of fire — a critical safety feature for offices, schools, and public buildings.

Highlights

• Cat.6 performance up to 250 MHz, supporting Gigabit Ethernet (1000 Mbps)
• Bare copper stranded conductors (AWG 26/7) for reliable, long-lasting connections
• Gold-plated RJ45 connectors (50µ) with molded snagless boots for durability and easy handling
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Supports PoE, PoE+, and 4PPoE for powering devices like IP cameras and access points
• Compact 0.5 m length ideal for patch panels and rack installations

In daily use

The CQ2022U excels in structured cabling environments where short patch cords are needed to connect switches, patch panels, and active equipment. Its stranded conductors allow repeated bending without breakage, and the snagless boot protects the locking tab during installation and removal. The grey jacket blends discreetly into racks and cable management systems. With a slim outer diameter of 5.8 mm, it takes up minimal space in dense cable trays. The cable is fully compliant with RoHS, REACH, and CE standards, and it operates reliably in temperatures from -20 °C to +60 °C.

Full specifications

• Brand: LogiLink
• Model: CQ2022U
• MPN: CQ2022U
• EAN: 4052792022780
• Cable type: Ethernet patch cable
• Category: Cat.6
• Shielding: U/UTP (unshielded)
• Length: 0.5 m
• Colour: Grey
• Conductor material: Bare copper (BC)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH (low smoke zero halogen)
• Connector type: RJ45 (8P8C)
• Connector plating: Gold (50µ)
• Wiring standard: TIA/EIA 568B
• Boot type: Molded, snagless
• Frequency bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1 Gbps
• PoE support: PoE, PoE+, 4PPoE
• Number of pairs: 4
• Cable construction: Stranded
• Outer diameter: 5.8 mm
• Operating temperature: -20 °C to +60 °C
• Certifications: RoHS, REACH, CE

Final note

When you need a short, safe, and high-performance patch cable for critical network links, the LogiLink CQ2022U PrimeLine offers bare copper quality and LSZH safety in a compact grey design — a reliable choice for professional installations.
