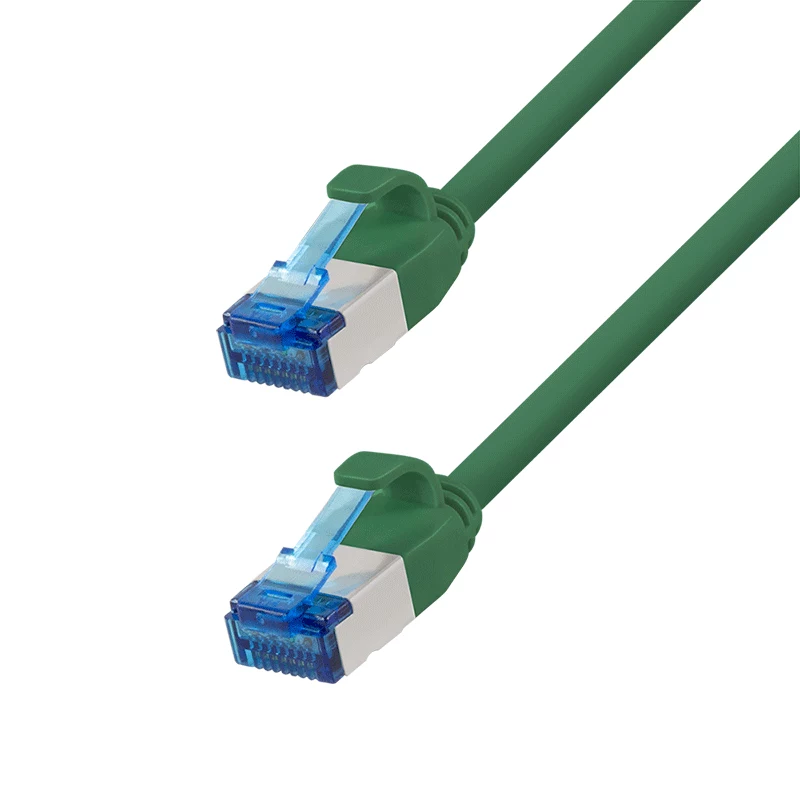

LogiLink Cable de red Cat.6A S/FTP LSZH Slim, 7,5 m, verde

With a bandwidth of up to 500 MHz and support for 10 Gigabit Ethernet, this slim Cat.6A patch cable delivers high-speed, interference-free network connections in a space-saving design. The green LSZH jacket and gold-plated RJ45 connectors make it a reliable choice for dense installations where performance and safety matter.

Overview

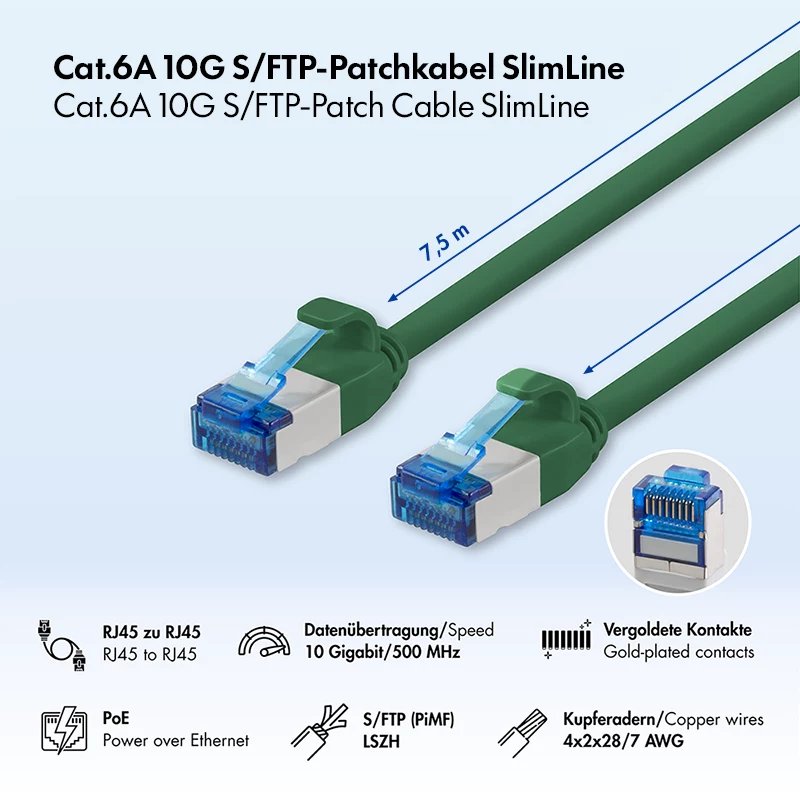

The LogiLink CP5085S is a Category 6A S/FTP patch cable with a length of 7.5 metres. Its SlimLine construction reduces the outer diameter to approximately 3.8 mm, allowing for easier cable management and improved airflow in racks. The cable is shielded with PIMF (pairs in metal foil) and an overall braid, providing excellent protection against alien crosstalk and electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket ensures low smoke emission and no toxic halogens in case of fire, making it suitable for public buildings and enclosed spaces. The connectors are gold-plated RJ45 plugs, ensuring reliable contact and corrosion resistance. The cable is wired according to TIA/EIA 568B and uses stranded copper conductors (AWG 30) for flexibility. It supports data rates up to 10 Gbps and is backward compatible with Cat.5e and Cat.6 networks.

What stands out

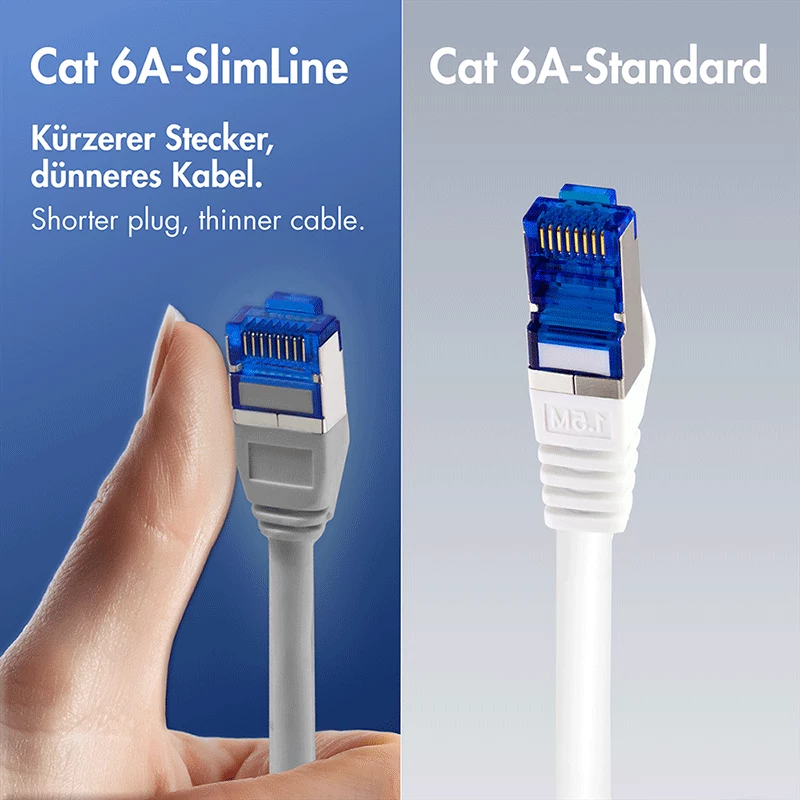

• SlimLine design with 3.8 mm outer diameter for high-density patching
• S/FTP shielding with PIMF for superior crosstalk protection
• LSZH jacket for enhanced fire safety
• Gold-plated RJ45 connectors for reliable performance
• Supports 10GBASE-T up to 500 MHz

Technical details

• Cable category: Cat.6A
• Shielding: S/FTP (PIMF)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold
• Jacket material: LSZH
• Length: 7.5 m
• Colour: Green
• Conductor material: Copper
• Conductor gauge: AWG 30
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Cable construction: Stranded
• Outer diameter: 3.8 mm
• Wiring standard: TIA/EIA 568B
• Halogen free: Yes
• Flame retardant: Yes

Our verdict

The LogiLink CP5085S combines high-performance Cat.6A connectivity with a slim, LSZH design, making it an excellent choice for professional network installations where space, safety, and reliability are critical.
