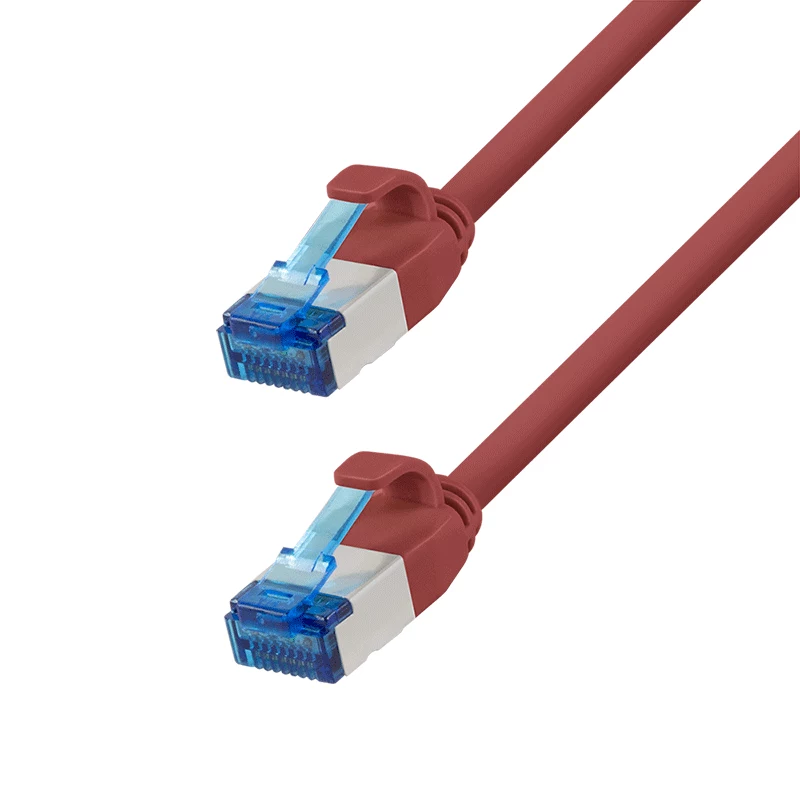

LogiLink Cable de Red Cat.6A Slim S/FTP LSZH, Rojo, 5 m, SlimLine

High-performance Cat.6A patch cable in a slim design, engineered for 10 Gigabit Ethernet and 500 MHz bandwidth. The red 5-metre cable features S/FTP shielding and LSZH jacket, ensuring reliable data transmission and safety in dense network environments.

Advantages

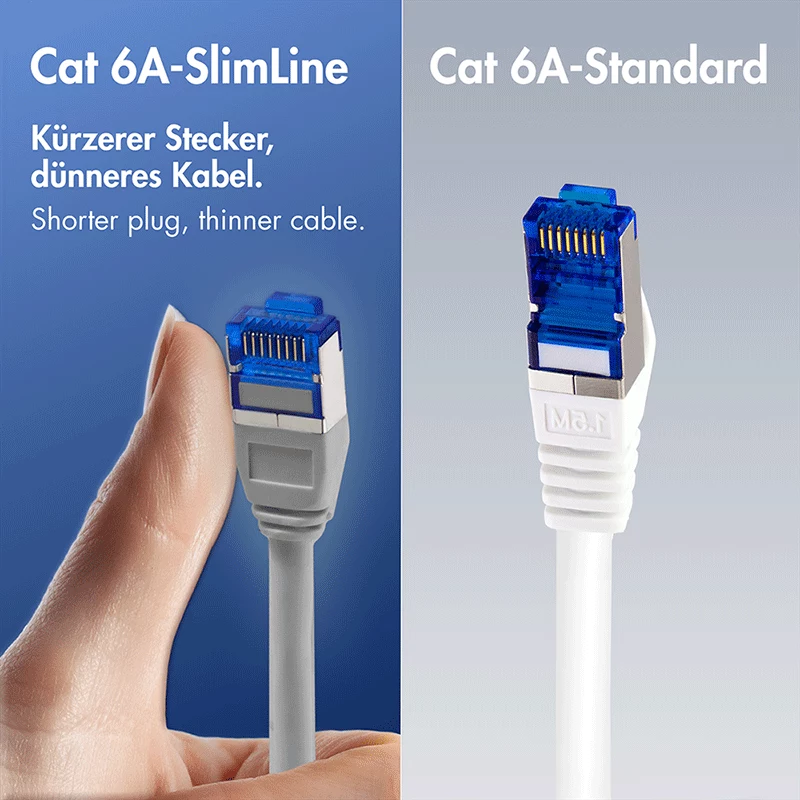

This cable delivers exceptional signal integrity with its S/FTP construction, effectively reducing alien crosstalk and EMI. The slim profile (approx. 3.8 mm outer diameter) saves space in racks and improves airflow, while the snagless boot protects the locking tab during installation. LSZH jacket emits low smoke and zero halogen, making it ideal for public buildings. Supports PoE for powering devices over the same cable.

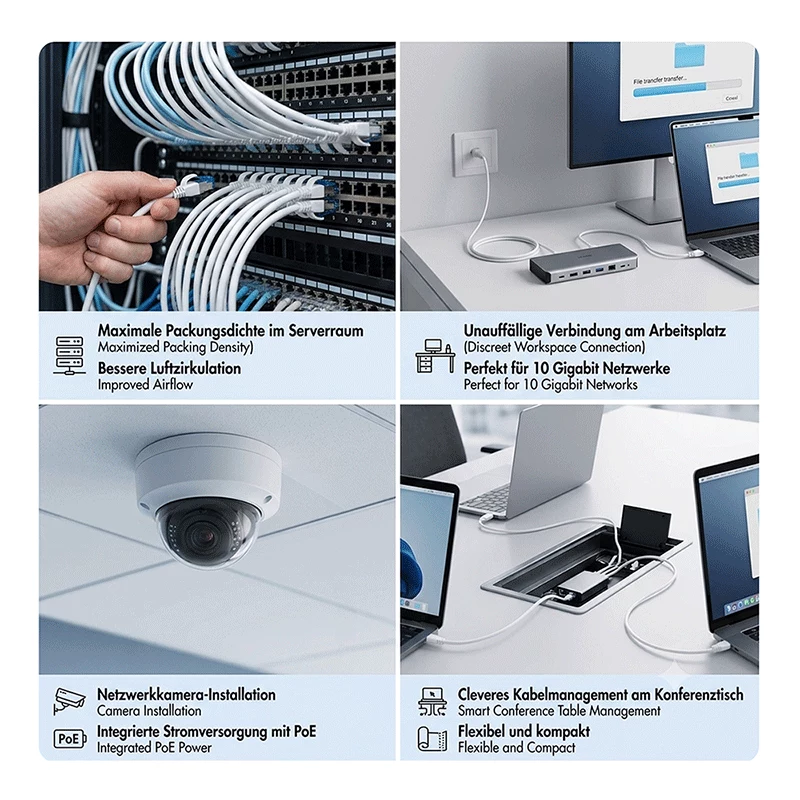

Suitable for

• 10GBASE-T networks in data centres and server rooms
• High-density patch panels and switches
• PoE applications (IP cameras, VoIP phones, access points)
• Environments requiring low smoke and halogen-free cabling
• Professional installations where cable management is critical

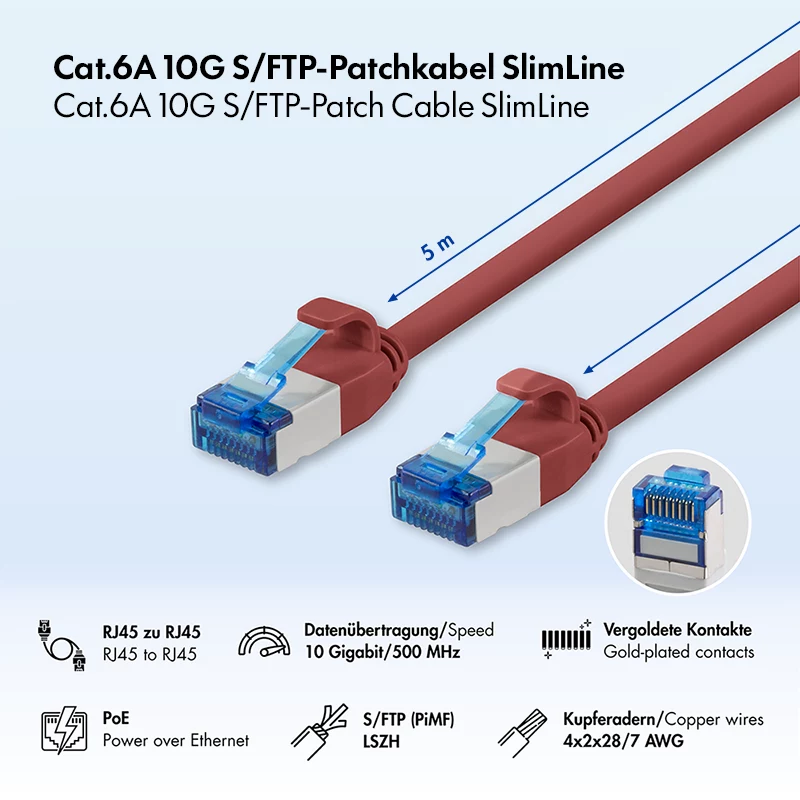

Key specifications

• Cable category: Cat.6A (500 MHz)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Length: 5.00 m
• Colour: Red
• Connectors: RJ45 male to RJ45 male, snagless molded boot
• Conductor: Stranded copper, AWG 30
• Pinout: TIA/EIA 568B
• Jacket: LSZH (Low Smoke Zero Halogen)
• Outer diameter: approx. 3.8 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair with LogiLink Cat.6A shielded patch panels and keystone jacks. Avoid sharp bends; maintain minimum bend radius of 4x cable diameter.
