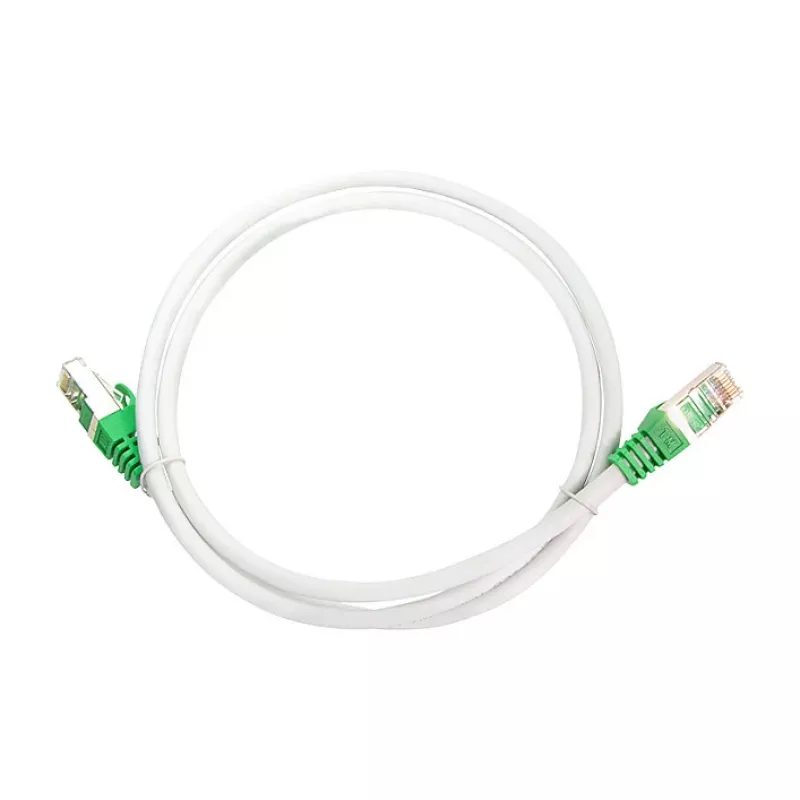

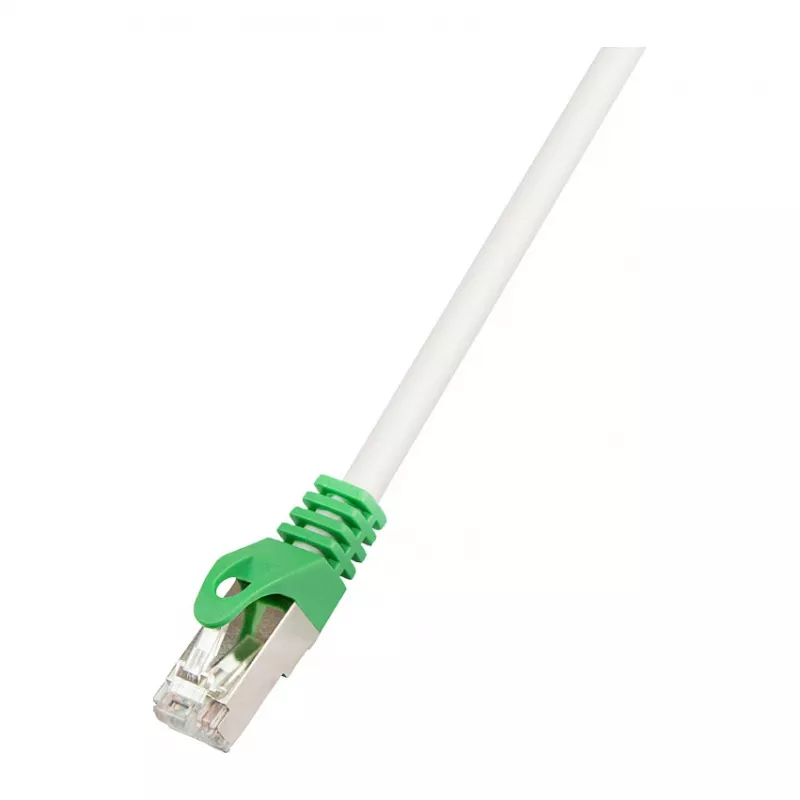

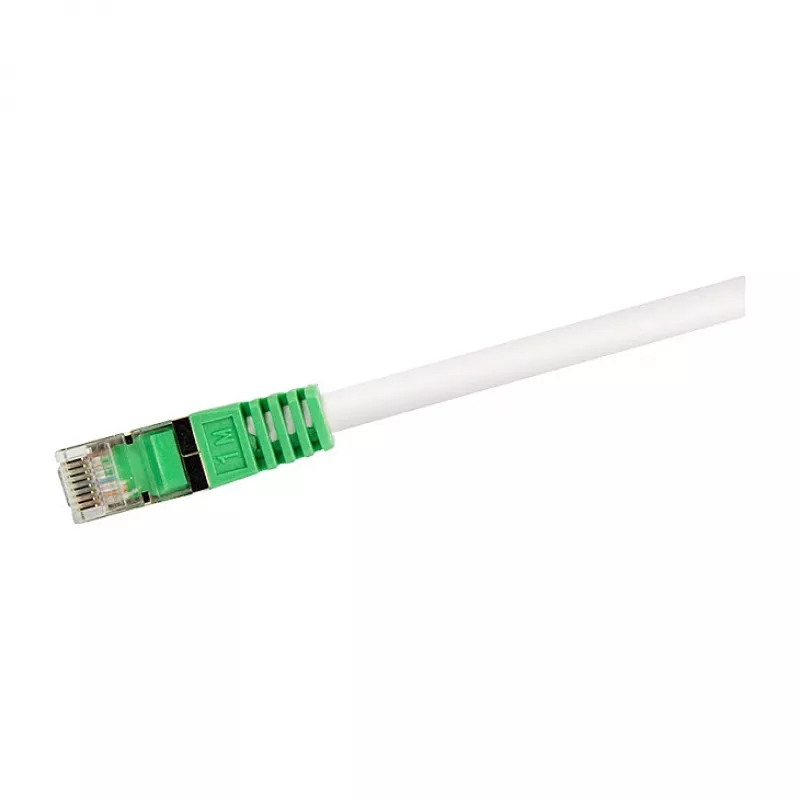

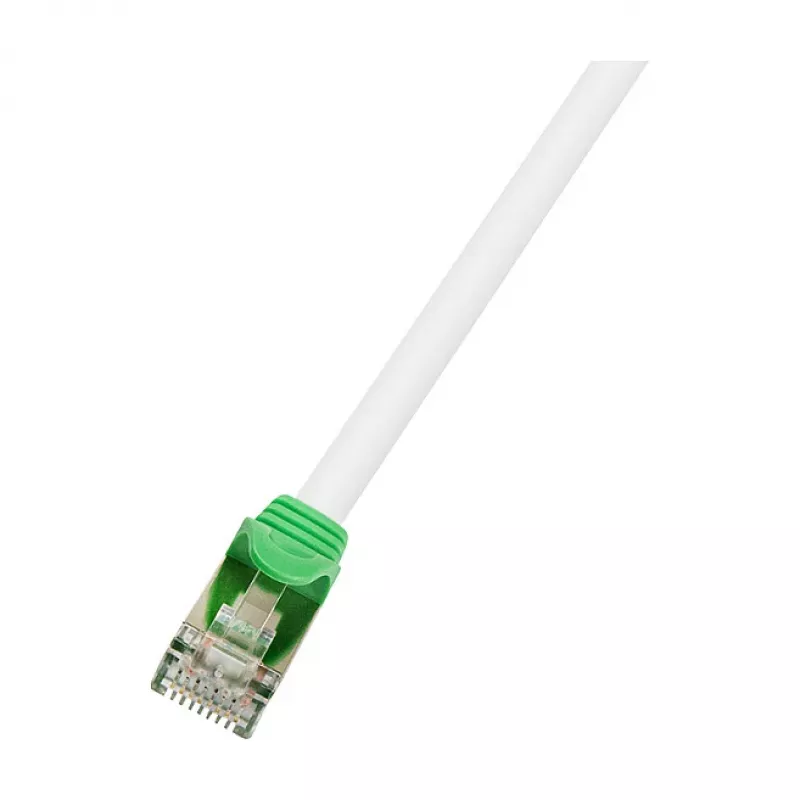

LogiLink Cable de red cruzado Cat.6 S/FTP, RJ45, 0,5 m, gris, LSZH, 10 Gbit/s

Deliver 10 Gigabit Ethernet over a crossover connection with the LogiLink CQ2022X — a Cat.6 S/FTP patch cable that pairs stranded copper conductors with double shielding (foil + braid) for flawless signal integrity in dense, high-EMI environments. At 0.5 m, it’s the perfect length for direct device-to-device links, patch panel hops, or tidy rack interconnects.

Overview

Engineered for professional networks, this crossover cable swaps transmit and receive pairs internally, allowing two computers, switches, or other like devices to communicate without an intermediary. The S/FTP construction wraps each twisted pair in foil and the entire bundle in a braided shield, virtually eliminating alien crosstalk and external interference. A grey LSZH jacket adds safety in confined spaces, while gold-plated contacts ensure long-term corrosion resistance and consistent performance.

What stands out

• 10 Gbps data transfer rate with 250 MHz bandwidth — ideal for high-speed LAN segments
• Crossover wiring (TIA/EIA 568B) for direct device-to-device connections
• S/FTP shielding: foil per pair + overall braid for maximum EMI/RFI rejection
• Stranded 27/7 AWG copper conductors for flexibility and durability
• LSZH (Low Smoke Zero Halogen) jacket — flame retardant and low toxicity
• Gold-plated RJ45 connectors (50 µm) for reliable, low-resistance contacts

Technical details

• Cable category: Cat.6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 0.5 m
• Conductor: Copper (Cu), AWG 27/7 stranded
• Pairs: 4 twisted pairs
• Jacket: LSZH, grey
• Data rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: 250 MHz
• Wiring: TIA/EIA 568B (crossover)
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Our verdict

When you need a short, shielded crossover link that won’t buckle under 10-Gigabit traffic, the LogiLink CQ2022X delivers. Its robust S/FTP design and LSZH jacket make it a smart choice for data centres, industrial networks, and any environment where interference and safety are concerns.
