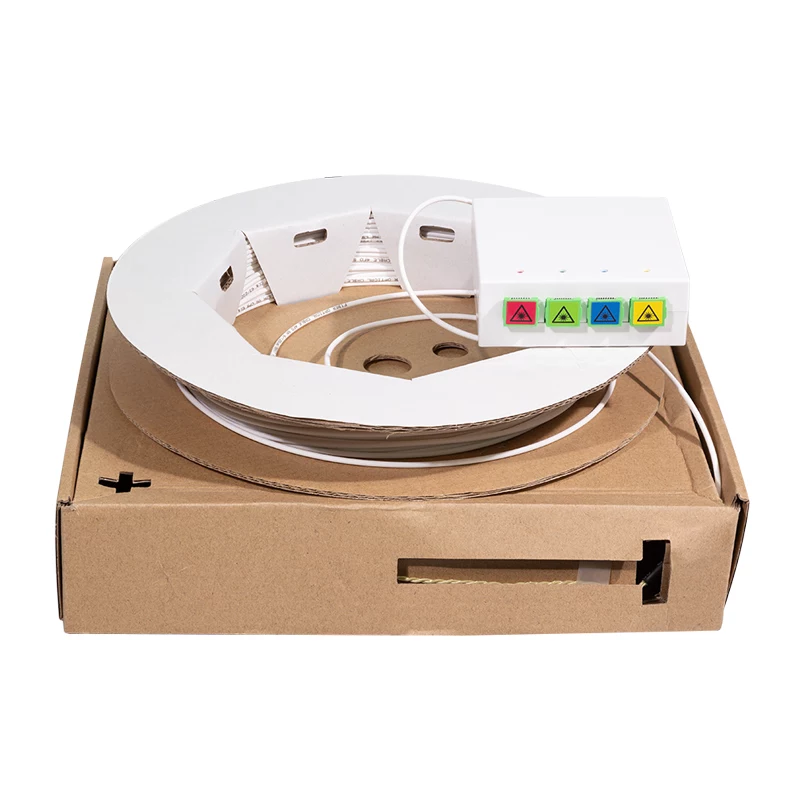

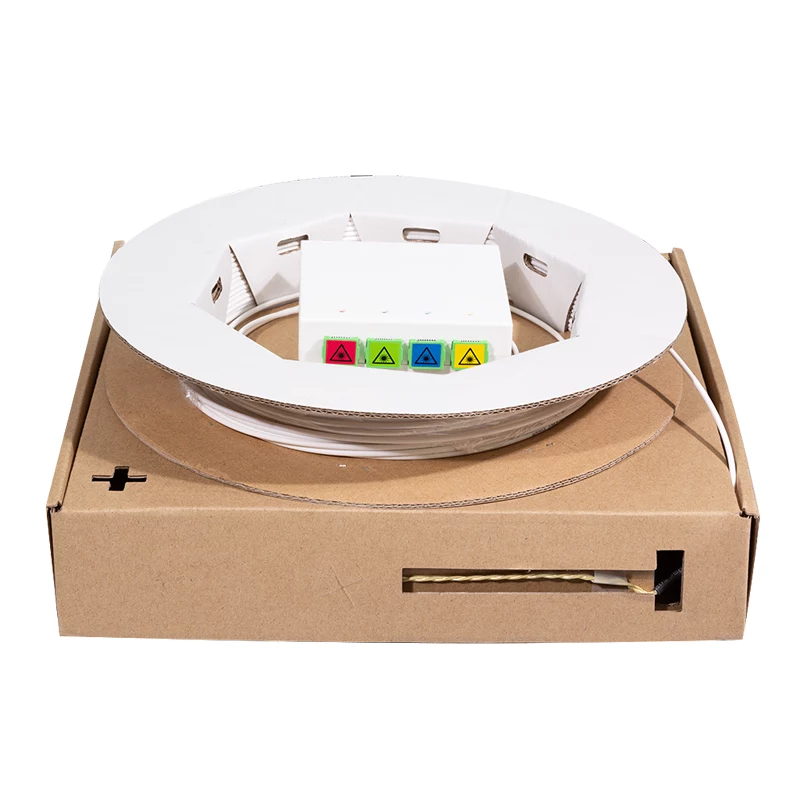

LogiLink caja de terminación FTTH 4 x SC/APC con cable de conexión de 30 m

Engineered for low-loss fiber termination, this FTTH box delivers ≤0.3 dB insertion loss and ≥60 dB return loss across four SC/APC ports, ensuring pristine signal integrity in demanding FTTX deployments. The integrated 30 m G.657.A2 drop cable simplifies installation, while the IP54-rated ABS enclosure withstands harsh environments.

Overview

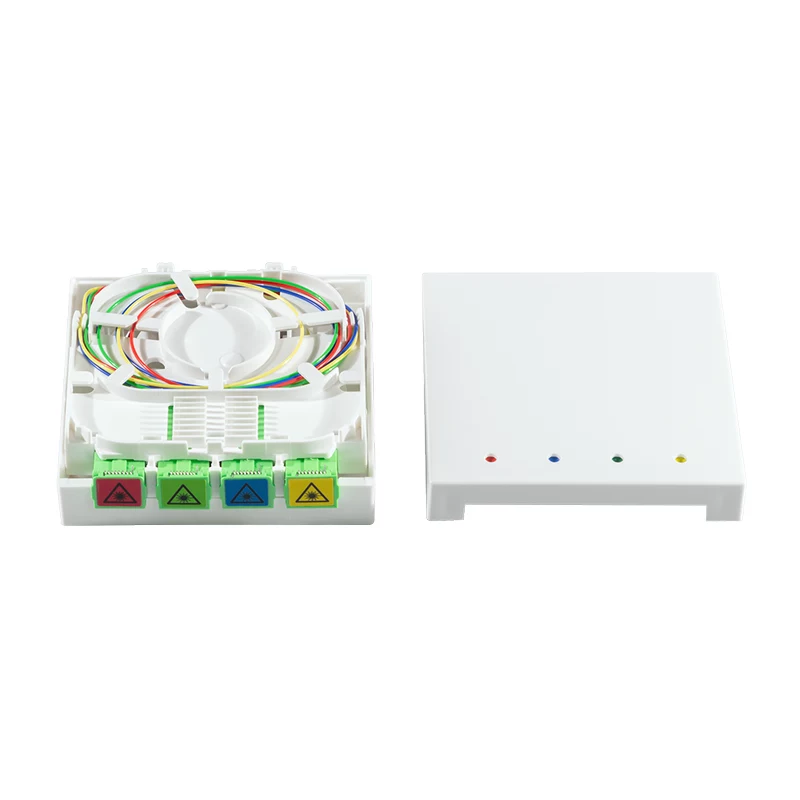

The LogiLink FB4SC30 is a wall-mount fiber termination box designed for Fiber to the Home applications. It accommodates up to four fusion or mechanical splices, providing a compact, reliable interface between the drop cable and subscriber connections. The box includes a pre-terminated 30 m singlemode drop cable with SC/APC connectors, reducing on-site splicing time.

What stands out

• Four SC/APC adapter ports for multiple subscriber drops
• Integrated 30 m FTTH drop cable (G.657.A2) with SC/APC connector
• Low insertion loss ≤0.3 dB and high return loss ≥60 dB
• IP54-rated ABS housing with UV resistance for outdoor use
• Supports up to 4 fusion or mechanical splices

Technical details

• Connector type: SC/APC
• Number of ports: 4
• Fiber type: Singlemode (ITU-T G.657.A2)
• Connection cable length: 30 m
• Connection cable type: FTTH drop cable, 1 fiber
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB
• Material: ABS plastic
• Mounting type: Wall-mount
• IP rating: IP54
• Operating temperature: -40°C to +85°C
• Splice capacity: Up to 4 fusion or mechanical splices
• UV resistance: Yes

Our verdict

A robust and efficient FTTH termination solution, the LogiLink FB4SC30 combines high-performance optical characteristics with a rugged, weather-resistant design, making it an excellent choice for last-mile fiber connectivity.
