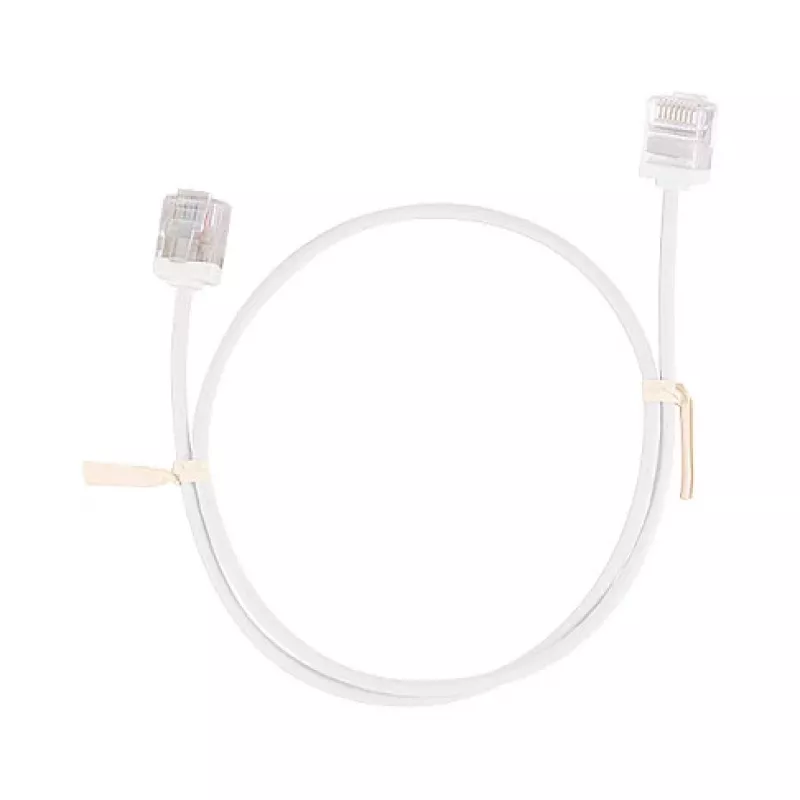

LogiLink Cat.6A U/UTP cable de red Slim High-Flex, blanco, 1,5 m

High-density network environments often suffer from cable congestion, restricted airflow, and difficult maintenance. This slim patch cable addresses those challenges with a 3.6 mm outer diameter and high-flexibility stranded conductors, enabling clean, space-saving installations without compromising 10 Gigabit performance.

Who is it for

IT professionals, network administrators, and system integrators who need to maximize rack density and maintain organized cabling in data centres, server rooms, and enterprise networks. It is also ideal for anyone upgrading to 10GBASE-T infrastructure in offices, studios, or smart buildings where future-proofing and reliability matter.

Main features

• Cat.6A performance: supports 10 Gigabit Ethernet with 500 MHz bandwidth
• Slim 3.6 mm outer diameter: saves up to 40% space compared to standard Cat.6A cables
• High-flex stranded copper conductors (AWG 32/7): excellent bend radius and durability for frequent re-routing
• U/UTP unshielded design: lightweight and easy to handle in controlled environments
• Gold-plated RJ45 connectors (50 µm): corrosion-resistant and ensure reliable signal transmission
• Snagless boot: protects the locking tab during installation and removal

Specifications

• Cable length: 1.5 m
• Cable colour: White
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Conductor material: Copper (CU)
• Conductor gauge: AWG 32/7 (stranded)
• Cable construction: 4 twisted pairs
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Outer diameter: 3.6 mm
• Connector plating: Gold-plated (50 µm)
• Wiring standard: TIA/EIA 568B
• Special features: Slim, High-Flex, Snagless Boot

Tips

For best results, use this cable in high-density patch panels and cable managers where space is limited. The slim profile improves airflow and simplifies cable tracing, while the high-flex design withstands frequent moves, adds, and changes.
