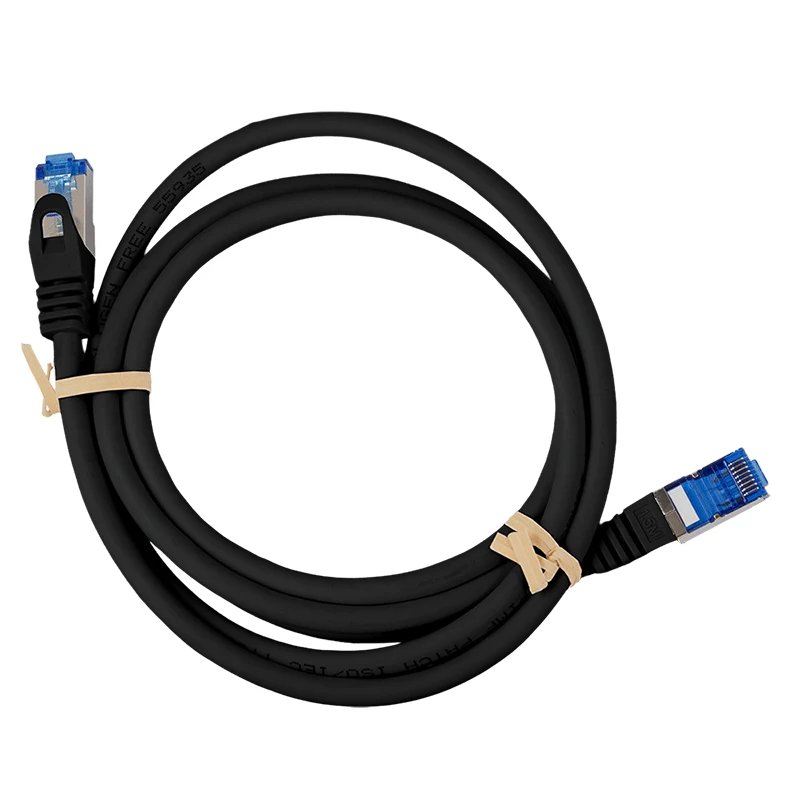

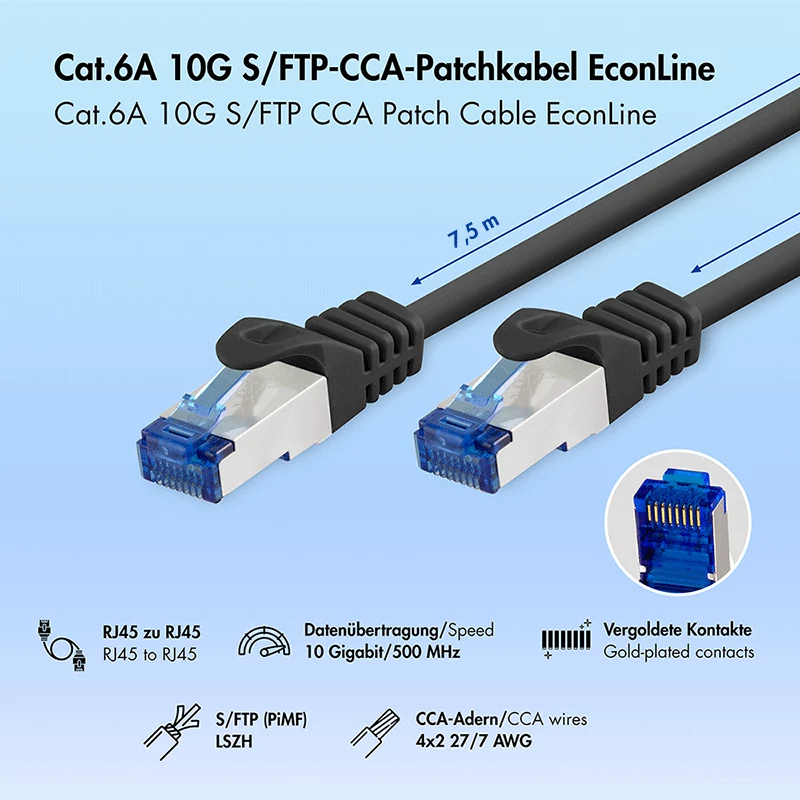

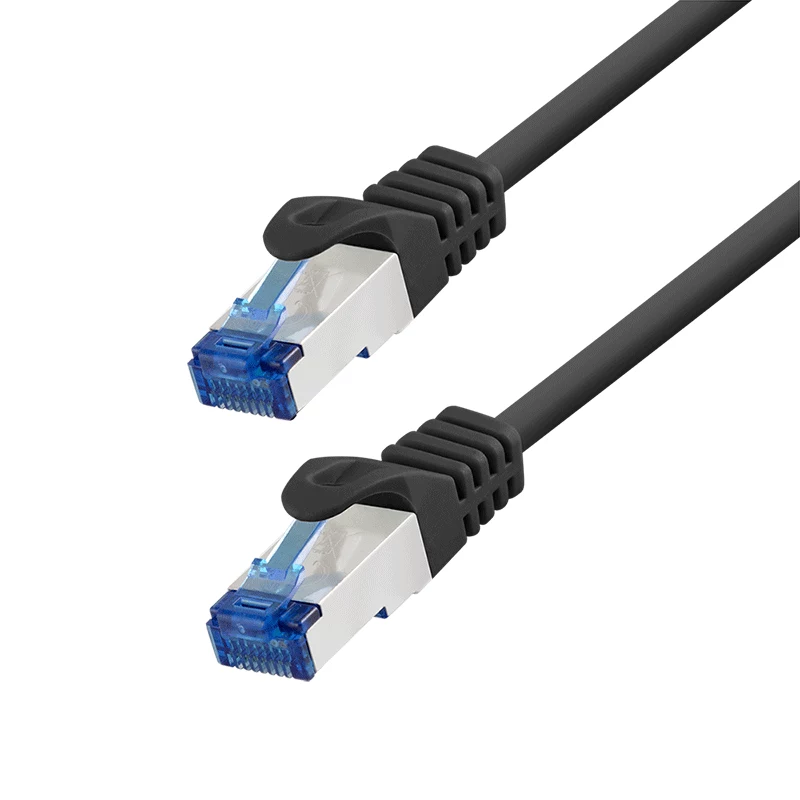

LogiLink EconLine cable de conexión Cat.6A S/FTP LSZH, 7,5 m, negro, CCA

For high-density 10 Gigabit Ethernet links where cost efficiency matters, this LogiLink EconLine patch cable delivers Cat.6A performance with a CCA conductor and LSZH jacket. The S/FTP shielding keeps alien crosstalk low, making it suitable for noisy environments, while the black 7.5-meter length covers most rack-to-workstation runs.

Highlights

• Cat.6A rated for 10GBASE-T up to 500 MHz bandwidth
• S/FTP shielding: individual foil pairs plus overall braid
• Copper Clad Aluminum (CCA) conductors keep cost down
• LSZH jacket: low smoke, zero halogen, flame retardant
• Gold-plated RJ45 connectors, stranded AWG 26/7
• 7.5 m length, black colour, EconLine series

In daily use

The stranded conductors make this cable flexible enough for tight bends behind desks or in patch panels, yet it maintains stable 10G links. The LSZH jacket is a must in public buildings, offices, and anywhere fire safety regulations require low smoke and no halogen emissions. CCA construction reduces cost compared to solid copper, ideal for budget-conscious projects that still need Cat.6A shielding.

Full specifications

• Category: Cat.6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor material: Copper Clad Aluminum (CCA)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 7.5 m
• Colour: Black
• Connectors: RJ45 male to RJ45 male, gold-plated
• Data rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Wiring standard: TIA/EIA 568B
• Outer diameter: approx. 6.2 mm
• Halogen free: Yes
• Flame retardant: Yes
• Series: EconLine

Final note

A practical choice for high-speed networking on a budget, offering Cat.6A shielding and safety-rated jacketing without the premium of solid copper.
