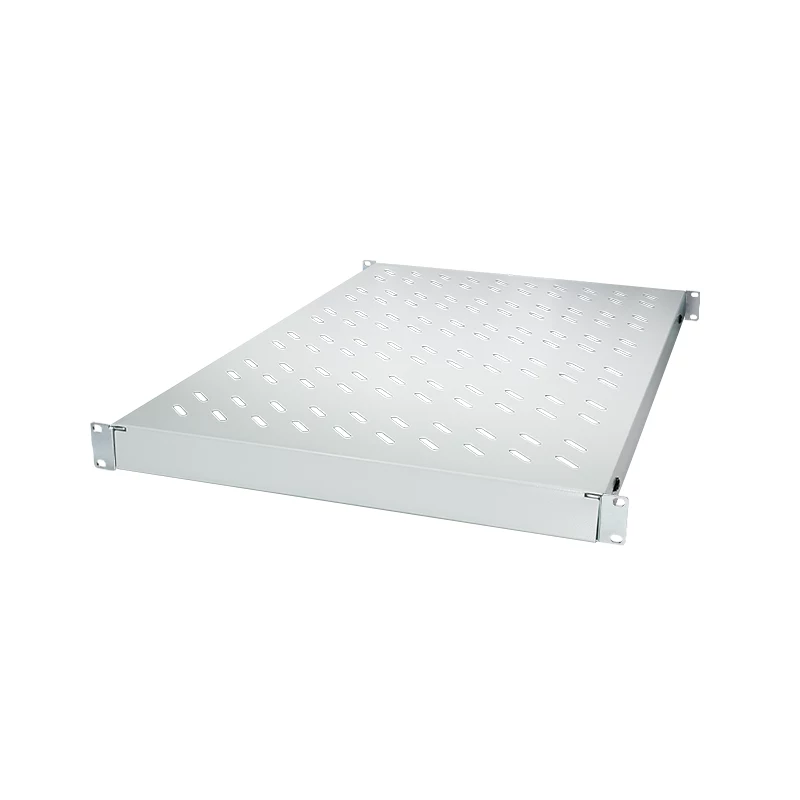

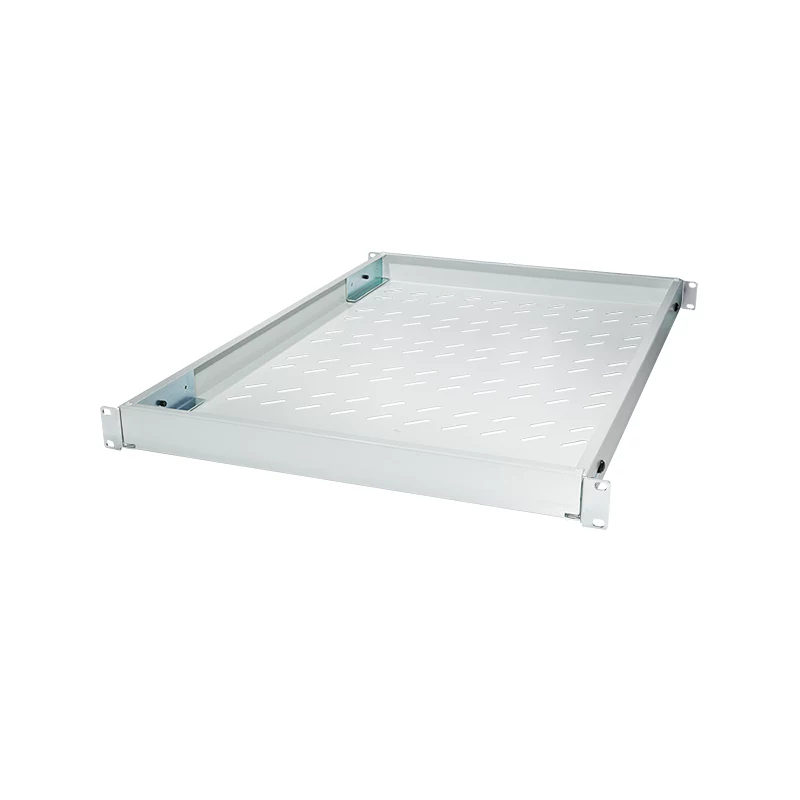

LogiLink Estante de rack ajustable de 19" para racks de 800 mm de profundidad, gris claro

This 19-inch adjustable rack shelf is built for 800mm deep server racks and network cabinets, delivering a robust 100 kg load capacity with tool-free mounting depth adjustment from 450 to 750 mm. Its perforated steel design promotes airflow while maintaining structural integrity in demanding IT environments.

Advantages

The shelf features a 4-point front and rear mounting system that ensures exceptional stability under heavy loads. The light grey powder-coated finish (RAL 7035) resists scratches and corrosion, blending seamlessly with standard rack aesthetics. Perforations across the surface enhance passive cooling for active equipment, reducing the risk of overheating. Installation is straightforward, with all necessary mounting screws included.

Suitable for

• 19-inch server racks with 800 mm depth
• Network cabinets and enclosures
• Mounting non-rackmountable equipment such as UPS units, KVM switches, or small servers
• IT closets, data centers, and office network rooms

Key specifications

• Rack size: 19 inch
• Compatible rack depth: 800 mm
• Mounting depth range: 450 - 750 mm
• Load capacity: 100 kg
• Material: Steel
• Colour: Light grey (RAL 7035)
• Height units: 1U
• Ventilation: Perforated
• Dimensions (W x D x H): 483 x 750 x 44.45 mm
• Finish: Powder coated
• Compliance: RoHS, REACH
• Package contents: 1x shelf, mounting screws

Recommendations

For installations requiring reliable support of heavy equipment in deep racks, this LogiLink shelf delivers the adjustability and strength needed. Pair it with compatible rack screws and cage nuts for a secure, long-lasting setup.
