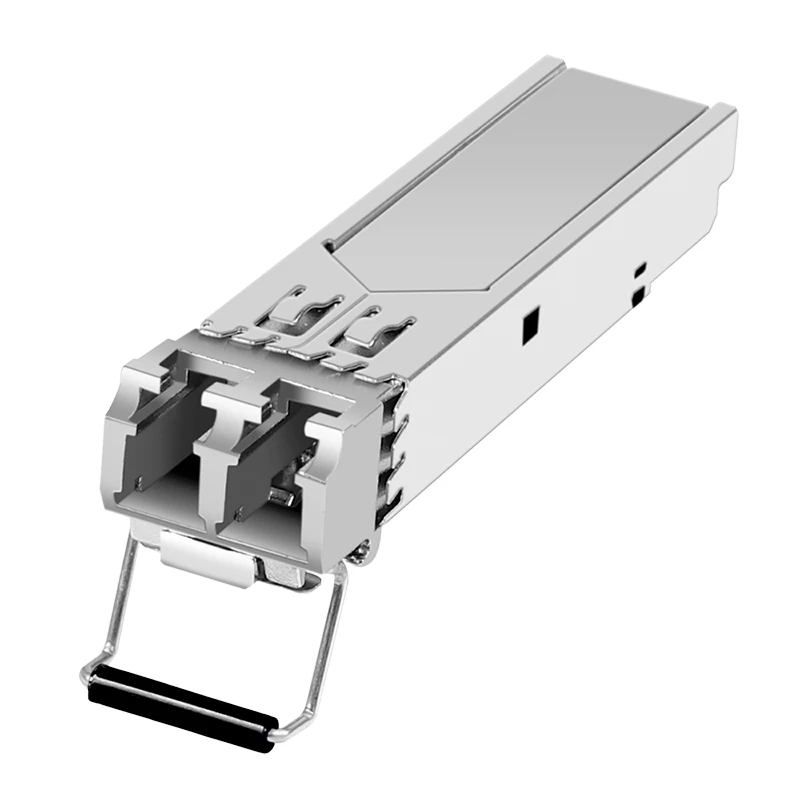

LogiLink módulo transceptor SFP 2.5G multimodo 550m LC dúplex

Upgrade your network infrastructure with the LogiLink SFP005, a high-performance SFP transceiver module delivering 2.5 Gbps over multi-mode fiber for distances up to 550 meters. This hot-pluggable module features an LC duplex connector and 850nm VCSEL laser, ensuring reliable full-duplex data transmission for 2.5G Ethernet and SONET/SDH applications. With Digital Diagnostic Monitoring (DDM), you can monitor real-time parameters such as optical power, temperature, and voltage, simplifying network management and troubleshooting.

Advantages

The SFP005 offers seamless integration and scalability, supporting hot-swapping without network downtime. Its metal housing provides durability, while the low power consumption (<1W) reduces energy costs. Fully compliant with SFP MSA and RoHS, it guarantees interoperability with a wide range of networking equipment. The commercial operating temperature range (0°C to 70°C) makes it suitable for standard enterprise environments.

Suitable for

• Enterprise network upgrades to 2.5G Ethernet
• Data center interconnects over multi-mode fiber
• SONET OC-48 / SDH STM-16 optical links
• High-bandwidth workstations and server connections

Key specifications

• Data rate: 2.5 Gbps
• Wavelength: 850 nm (VCSEL)
• Connector: LC duplex
• Max distance: 550 m on OM2 multi-mode fiber
• DDM/DOM support: Yes
• Hot-pluggable: Yes
• Power supply: 3.3V
• Operating temperature: 0°C to 70°C
• Compliance: SFP MSA, RoHS

Recommendations

For optimal performance, pair the SFP005 with OM3 or OM4 multi-mode fiber to achieve the full 550 m reach. Ensure your switch or router supports 2.5G SFP ports and DDM functionality to leverage remote monitoring. Always handle the module by its housing and avoid touching the optical connectors to prevent contamination.
