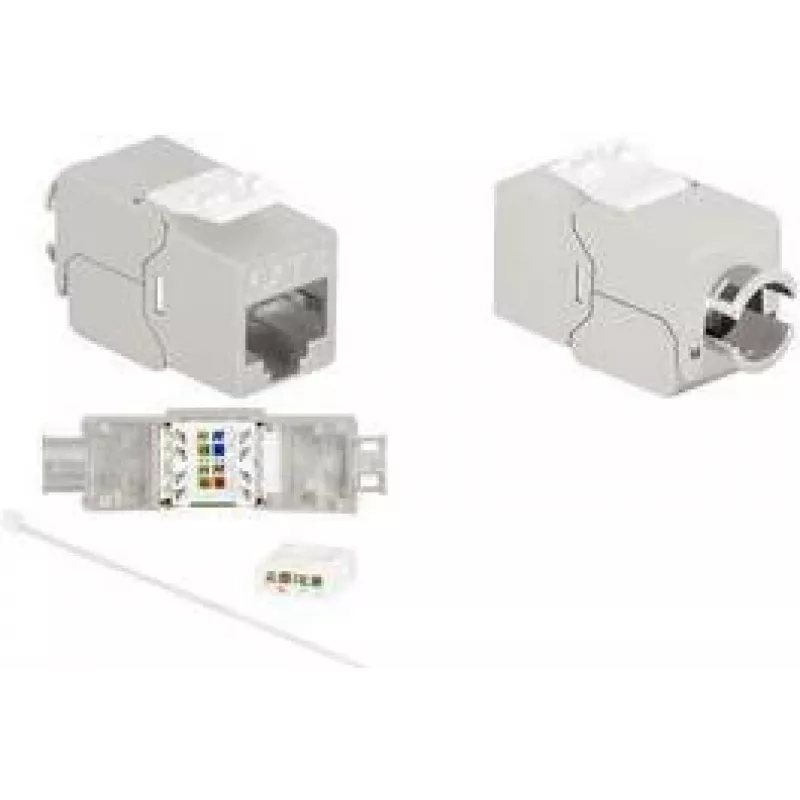

LogiLink NK4067 Conector hembra Keystone Cat.8.1, STP, sin herramientas, conector hembra RJ45, 40G, 2000 MHz, Clase I, fundición de zinc, 1 pack

For high-density 40 Gigabit Ethernet installations where every millimeter and every decibel of headroom counts, the LogiLink NK4067 keystone module delivers Category 8.1 performance in a compact, fully shielded zinc die-cast housing. Unlike ordinary Cat.6A jacks that top out at 500 MHz, this module is certified for Class I permanent links up to 2000 MHz, making it a future-ready choice for data centers, server rooms, and enterprise backbone cabling. The tool-free IDC termination speeds up installation dramatically, while the RJ45 female coupler design allows quick patching without re-termination.

Highlights

• Category 8.1 / Class I performance, tested to 2000 MHz for 40GBASE-T Ethernet
• Fully shielded (STP) die-cast zinc housing for excellent EMI/RFI immunity
• Tool-free IDC termination – no punch-down tool required, saves installation time
• RJ45 female-to-female coupler style, ideal for keystone patch panels and wall plates
• Supports PoE, PoE+, and PoE++ for powering devices over the same cable
• Gold-plated contacts for reliable, corrosion-resistant connections
• Compatible with TIA/EIA 568A/B wiring schemes and Cat.6a/6/5e networks

In daily use

Technicians will appreciate how quickly the NK4067 goes into a keystone panel or faceplate: strip the cable, lay the conductors into the colour-coded IDC slots, and snap the cap shut – no special tools needed. The robust metal body stands up to repeated insertions and harsh environments, while the shielded design keeps alien crosstalk low even in dense bundles. Whether you are building a new 40G backbone or upgrading an existing Cat.6a infrastructure, this module provides a clean, professional termination point that meets the latest ISO/IEC 11801-1 and EN 50173-1 Class I requirements.

Full specifications

• Brand: LogiLink
• Model: NK4067
• MPN: NK4067
• EAN: 4052792071153
• Connector type: RJ45 female
• Category standard: Cat.8.1 (Category 8.1)
• Class standard: Class I
• Shielding type: Fully shielded (STP)
• Installation method: Tool-free IDC termination
• Maximum data transfer rate: 40 Gigabit Ethernet (40GBASE-T)
• Maximum bandwidth: 2000 MHz
• Module form factor: Keystone jack
• Backward compatibility: Cat.6a, Cat.6, Cat.5e
• Wiring standard: TIA/EIA 568A/B
• Housing material: Die-cast zinc
• Contact plating: Gold-plated
• PoE support: PoE, PoE+, PoE++
• Number of ports: 1
• Standard compliance: ISO/IEC 11801-1, EN 50173-1
• Mounting type: Keystone panel/faceplate compatible
• Product colour: Silver
• Pack size: 1 Pack

Final note

When your network demands the highest speed and reliability, the LogiLink NK4067 keystone module is the professional choice for a clean, future-proof installation.
