LOGILINK roseta FTTH - 2 x acopladores SC/APC simplex - con cable de conexión de 50 m

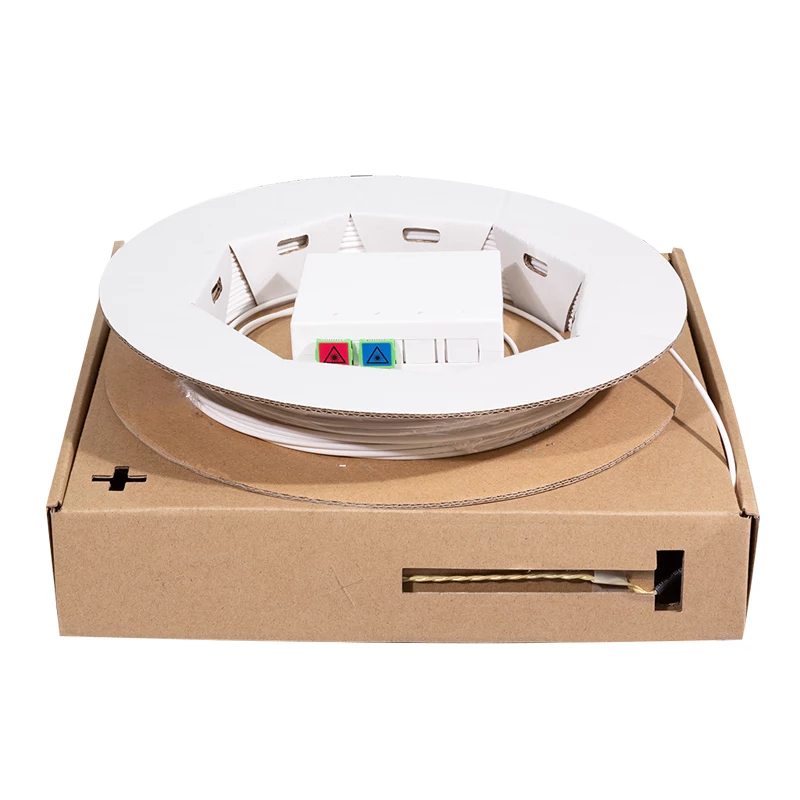

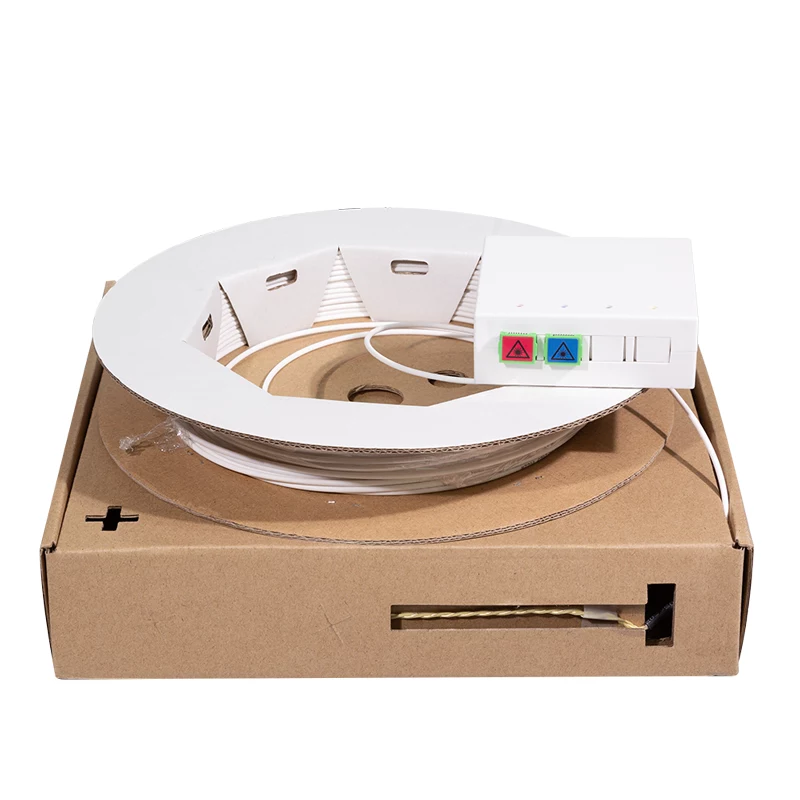

The LOGILINK FTTH Connection Box (FB2SC50) is a high-quality wall outlet designed for Fiber to the Home (FTTH) indoor installations. It features 2 x SC/APC simplex couplings and comes with a pre-installed 50-meter single-mode connection cable, making it ideal for connecting optical network terminals (ONT) to the fiber distribution network.

Advantages

This connection box offers a compact and tidy solution for FTTH termination. The pre-terminated cable saves installation time and ensures reliable performance. The bend-insensitive fiber (G.657.A2) allows for flexible routing without signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in indoor environments.

Suitable for

• FTTH (Fiber to the Home) indoor installations
• Connecting optical network terminals (ONT) to fiber distribution
• Wall-mounted fiber termination points in residential or commercial buildings

Key specifications

• Product Type: FTTH Connection Box / Wall Outlet
• Fiber Optic Connector Type: SC/APC Simplex
• Number of Ports: 2
• Included Cable Length: 50 m
• Fiber Type: Single-mode G.657.A2 (Bend-Insensitive)
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3 mm
• Insertion Loss (Max): < 0.3 dB
• Return Loss (Min): > 60 dB
• Mounting Type: Wall-mountable
• Housing Material: ABS Plastic
• Housing Color: White (RAL 9010)
• Operating Temperature: -20°C to +70°C
• Protection Class: IP20
• Application: Fiber to the Home (FTTH) Indoor
• Fiber Count: 2 (for 2 simplex connections)

Recommendations

For optimal performance, ensure proper handling and installation of the fiber optic cable. Avoid sharp bends and excessive tension. This product is designed for indoor use only.
