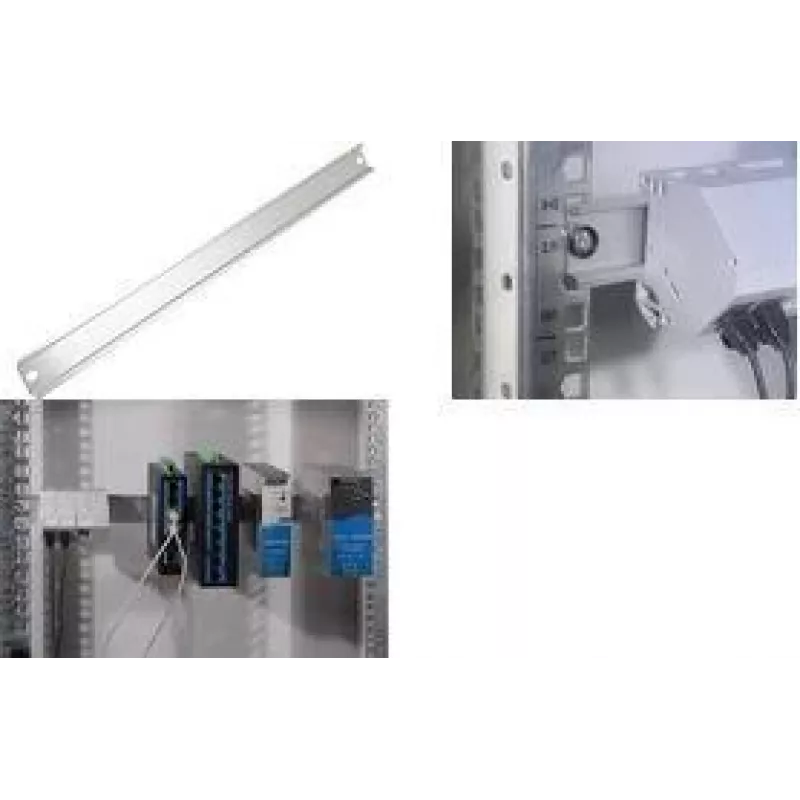

LogiLink Soporte de montaje en carril DIN de 19" para perfiles de sombrero 35 x 7,5 mm, 1U, acero, negro, EN 60715

For integrating DIN-mount devices into 19-inch racks, this LogiLink bracket eliminates the need for custom fabrication or improvised mounting solutions. Its 1U height and standard 19" width allow direct installation into any rack cabinet, while the integrated 35 x 7.5 mm top hat rail (EN 60715) accepts circuit breakers, power supplies, industrial controls, and other DIN-rail components. The steel construction with powder-coated finish ensures durability in demanding environments, and the horizontal orientation keeps devices accessible for wiring and maintenance.

Highlights

• Compatible with 19-inch racks, occupying 1U of vertical space
• Integrated DIN rail profile: 35 mm wide, 7.5 mm high (top hat type per EN 60715)
• Horizontal mounting orientation for easy device installation and access
• Robust steel body with black powder coating for corrosion resistance
• Includes one bracket for immediate use

In daily use

Install the bracket into your rack using standard cage nuts and screws (not included). Then simply snap or slide your DIN-mount devices onto the rail. The 19-inch width provides ample space for multiple modules, making it ideal for organizing power distribution, networking, or automation components in a tidy, professional manner. The black finish blends seamlessly with most rack equipment.

Full specifications

• Product type: DIN rail mounting bracket
• Rack compatibility: 19-inch
• Rack units: 1U
• DIN rail profile: Top hat (EN 60715)
• DIN rail width: 35 mm
• DIN rail height: 7.5 mm
• Mounting orientation: Horizontal
• Material: Steel
• Finish: Powder-coated
• Colour: Black
• Standard compliance: EN 60715
• Application: Mounting DIN rail devices (circuit breakers, power supplies, industrial controls)
• Installation type: Front mount
• Included quantity: 1 piece
• Overall length: 482.6 mm (19 inches)
• Overall height: 44.45 mm (1U)
• Overall depth: 35 mm

Final note

When rack space is at a premium, this bracket provides a clean, standardized method to incorporate DIN-rail technology into your 19-inch infrastructure.
