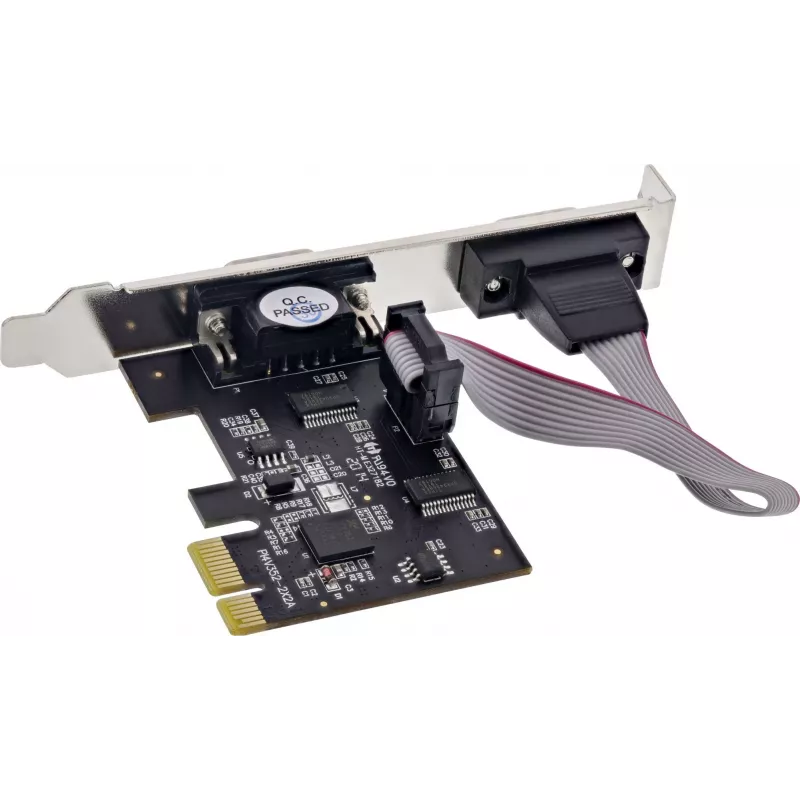

Longshine LCS-6321M tarjeta de E/S PCI Express x1 de 2 puertos serie RS232 con soporte Low Profile

The Longshine LCS-6321M is an RS-232 I/O controller in a series of PCI Express multi-port serial communication cards. It complies with the PCI Express base specification V2.0 and provides two independent serial ports for connecting terminals, modems, printers, scanners, cash registers, barcode readers, keyboards, numeric displays, electric scales, data acquisition devices, and other serial devices to a PC.

Key features

• PCI Express x1 interface
• 2 x UART serial ports
• DB9 male serial connectors
• Global interrupt status register for both UARTs
• 256-byte TX and RX FIFOs
• Serial data transfer rate up to 230400 bps
• No manual jumper setting required for I/O addresses and IRQ locations
• Complies with PCIe 2.0 Gen 1

Specifications

• Brand: Longshine
• MPN: LCS-6321M
• Interface: Serial
• Slot: PCIe
• Connections external: 2x 9pin serial
• Connections internal: None
• Transmission rate: 230.4Kb/s
• System requirements: Windows XP/Vista/7/8.x/10 32/64 bit, Linux 2.6.32 and above
• Country of origin: Taiwan
