Lumens DC-F20 Cámara de documentos USB HD/2K, sensor de 5-MP, 1920 x 1080 a 30 fps, área de captura 453 x 340 mm (A3), zoom total 16x (digital), micrófono integrado

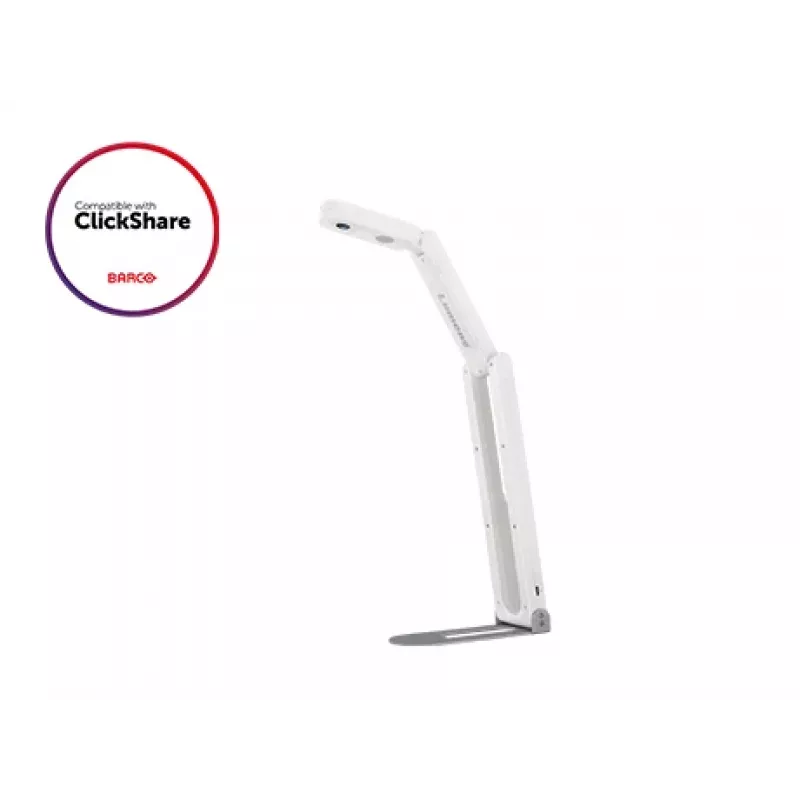

The Lumens DC-F20 is a high-performance document camera designed for education and professional presentations. It delivers stunning 4K UHD resolution at 30 fps and Full HD at 60 fps, ensuring crisp and smooth image quality. With an 8-megapixel CMOS sensor and 16x digital zoom, it captures fine details of documents, objects, and 3D materials up to A3 size.

Advantages

Exceptional 4K output for lifelike detail; versatile connectivity with HDMI, VGA, and USB; built-in LED lighting for consistent illumination; integrated microphone for audio capture; and image rotation for flexible viewing angles.

Suitable for

• Classroom teaching and remote learning
• Corporate meetings and video conferencing
• Legal and medical documentation
• Museum and gallery presentations

Key specifications

• Sensor: 1/3" CMOS, 8 MP
• Max Resolution: 4K UHD (3840 x 2160)
• Frame Rate: 60 fps (1080p), 30 fps (4K)
• Digital Zoom: 16x
• Focus: Auto / Manual
• Shooting Area: 420 x 315 mm (A3)
• Video Output: 1x HDMI, 1x VGA
• USB: 1x USB 2.0 Type B (PC), 1x USB 2.0 Type A (Storage)
• Audio: 3.5mm input and output
• Built-in Microphone: Yes
• Built-in Lighting: LED lamp
• Image Storage: Internal (240 images) / USB drive
• Power Supply: DC 12V
• Security: Kensington lock slot

Recommendations

For optimal performance, use with a 4K display or projector. The included AC adapter ensures reliable power. Compatible with Windows and Mac operating systems.
