M-E MODERN-ELECTRONICS ADV 111 WW Portero automático de audio, kit completo de intercomunicador por cable para vivienda unifamiliar, acero inoxidable, blanco (41137)

The ADV 111 WW from M-E MODERN-ELECTRONICS is a complete wired audio intercom system for a single-family home, featuring a 2-wire non-polarized bus that simplifies installation. The outdoor station is built with a stainless steel front and a surface-mounted design, while the indoor handset offers five selectable ringtones and a door opener function via a potential-free relay contact.

Overview

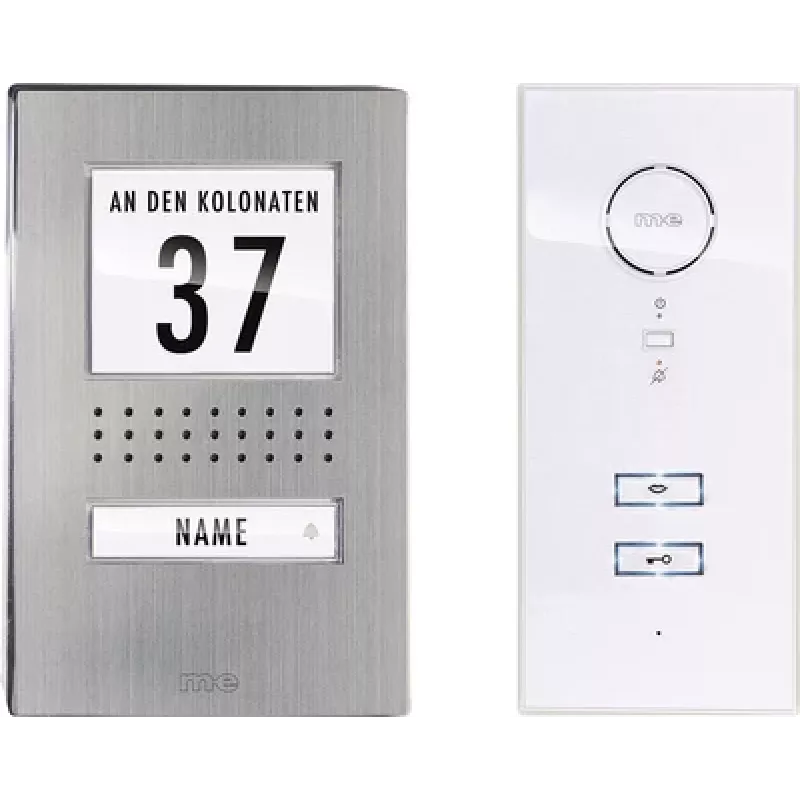

This complete set includes an outdoor call station and an indoor audio handset, designed for straightforward 2-wire installation. The outdoor unit measures 100 x 182 x 20 mm and carries an IP44 protection class, with an illuminated nameplate and call button. The indoor unit measures 90 x 220 x 40 mm and features a door opener button, mute function, volume control, and LED status indicator. Up to three indoor units can be connected in parallel for expanded coverage.

What stands out

• Simple 2-wire non-polarized bus system for easy installation
• Stainless steel front on outdoor station with IP44 protection
• Five selectable ringtones and volume control on indoor handset
• Expandable up to three indoor units
• Door opener function with potential-free relay contact (max 12V DC / 1A)

Technical details

• System type: Wired audio intercom
• Number of families/parties: 1
• Wiring technology: 2-wire bus system (non-polarized)
• Outdoor station material: Stainless steel front, plastic housing
• Outdoor station mounting: Surface-mounted
• Outdoor station dimensions (W x H x D): 100 x 182 x 20 mm
• Outdoor station protection class: IP44
• Outdoor station features: Illuminated nameplate, call button
• Indoor station type: Audio handset
• Indoor station colour: White
• Indoor station mounting: Surface-mounted
• Indoor station dimensions (W x H x D): 90 x 220 x 40 mm
• Indoor station features: Door opener button, mute function, volume control, LED status indicator
• Number of ringtones: 5 selectable
• Expandability: Up to 3 indoor units in parallel
• Door opener function: Yes (potential-free relay contact, max 12V DC / 1A)
• Power supply: Plug-in power supply (15V DC output)
• Installation: Simple 2-wire installation

Our verdict

The ADV 111 WW delivers a reliable and easy-to-install intercom solution for a single-family home, with a durable stainless steel outdoor station and a feature-rich indoor handset. Its expandability and straightforward wiring make it a practical choice for homeowners.
