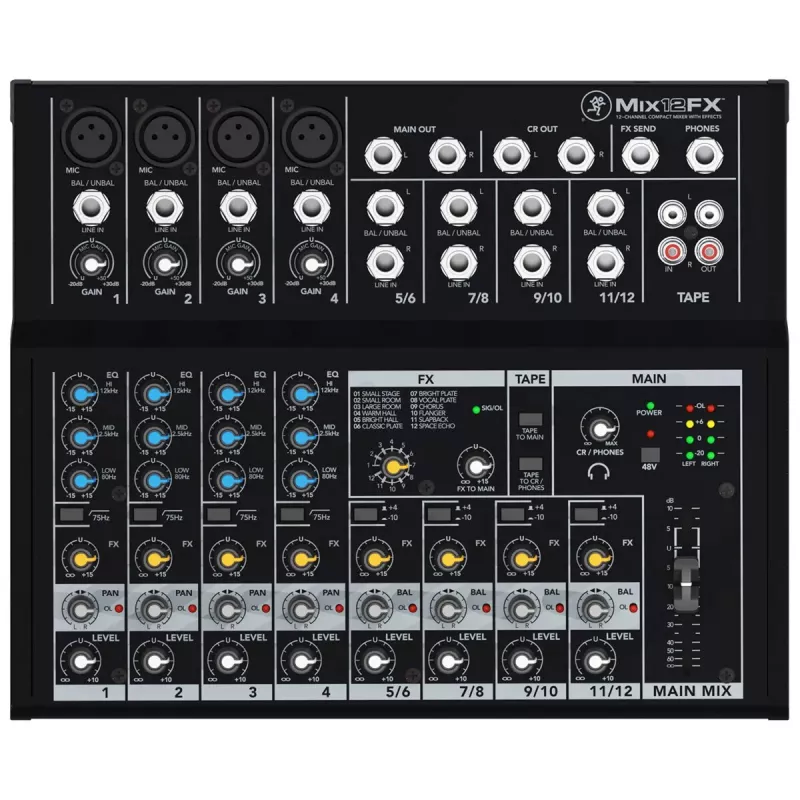

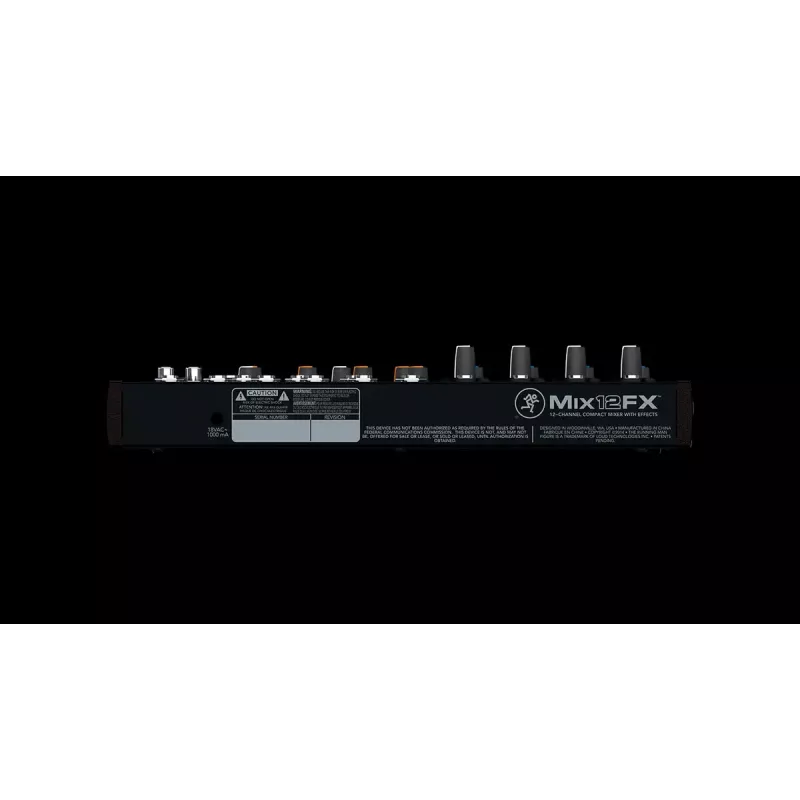

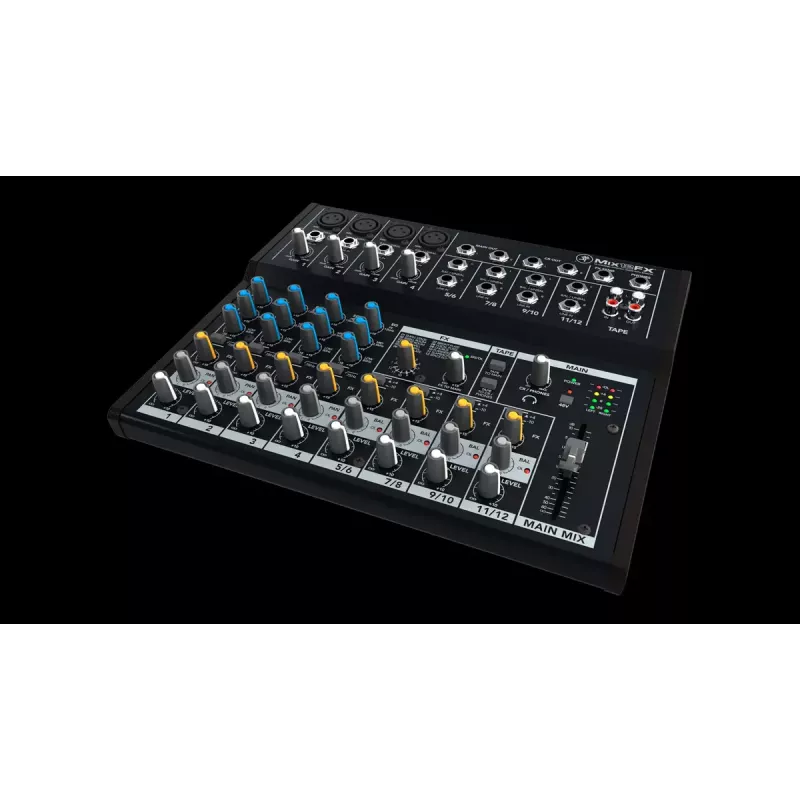

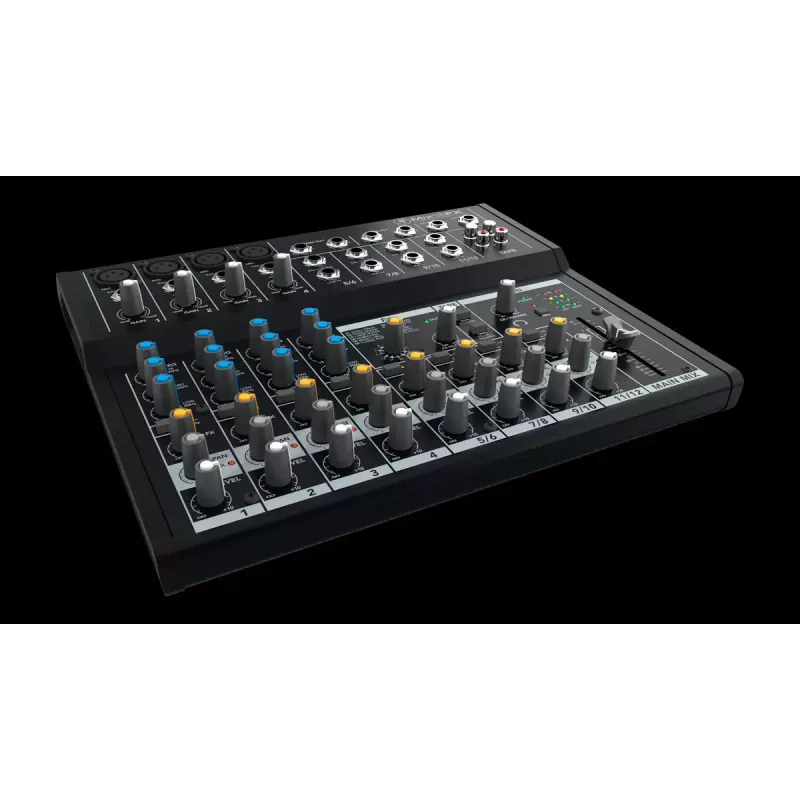

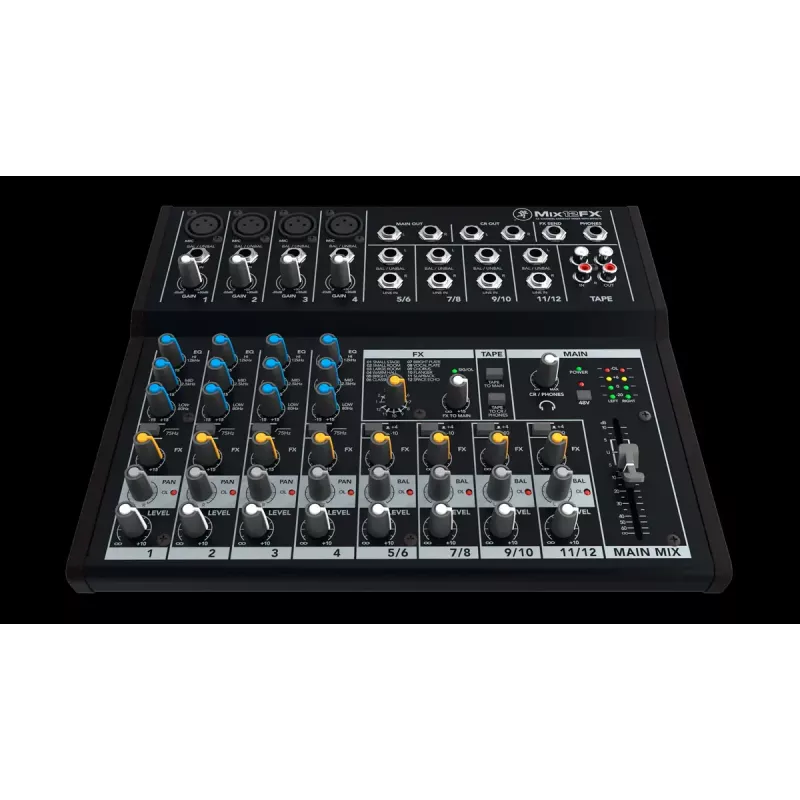

Mackie Mix12FX 12 canales 20 - 30000 Hz Negro

The Mackie Mix12FX 12 channels 20 - 30000 Hz Black is a compact analog mixer designed for small live-sound, rehearsal and recording applications. It provides twelve input channels with proven high-headroom, low-noise preamps and a frequency response spanning 20–30000 Hz to preserve audio detail across the audible spectrum. The unit is built in a rugged metal chassis and measures 297 mm (width) × 244 mm (depth) × 53 mm (height), offering a durable, space-efficient solution for both portable and fixed installations.

Advantages

This mixer combines robust construction and reliable sound performance through high-headroom preamps and low-noise design, helping maintain signal quality from microphones and line-level sources. The compact footprint and metal chassis make the unit suitable for transport and frequent use, while the straightforward control layout simplifies operation for users who need immediate, hands-on mixing without complex routing or deep menu systems.

Suitable for

• Small live performances and acoustic gigs
• Home and project studio recording
• Band rehearsals and practice rooms
• Podcasting and streaming setups with multiple inputs
• Small house-of-worship sound systems and AV events

Key specifications

• Channels: 12
• Frequency range: 20–30,000 Hz
• Microphone input impedance: 3,800 Ω
• Construction: rugged metal chassis
• Dimensions (W × D × H): 297 × 244 × 53 mm

How to use

Connect microphones and line-level sources to the appropriate input channels, set gain using the channel preamp controls to achieve a strong signal without clipping, and use the channel-level controls and master mix to balance sources. Apply any onboard FX and EQ as needed to shape tone, and route the main outputs to speakers, monitors or recording devices. Keep signal LED indicators and level meters in view during operation to prevent overloads and ensure clean headroom.

Recommendations

For best noise performance, use balanced cables where possible and set preamp gain so the signal peaks well below clipping. Place the mixer on a stable surface or in a rack-friendly enclosure to protect the metal chassis during transport. Regularly check connections and adjust levels to suit the acoustic environment and source characteristics.
