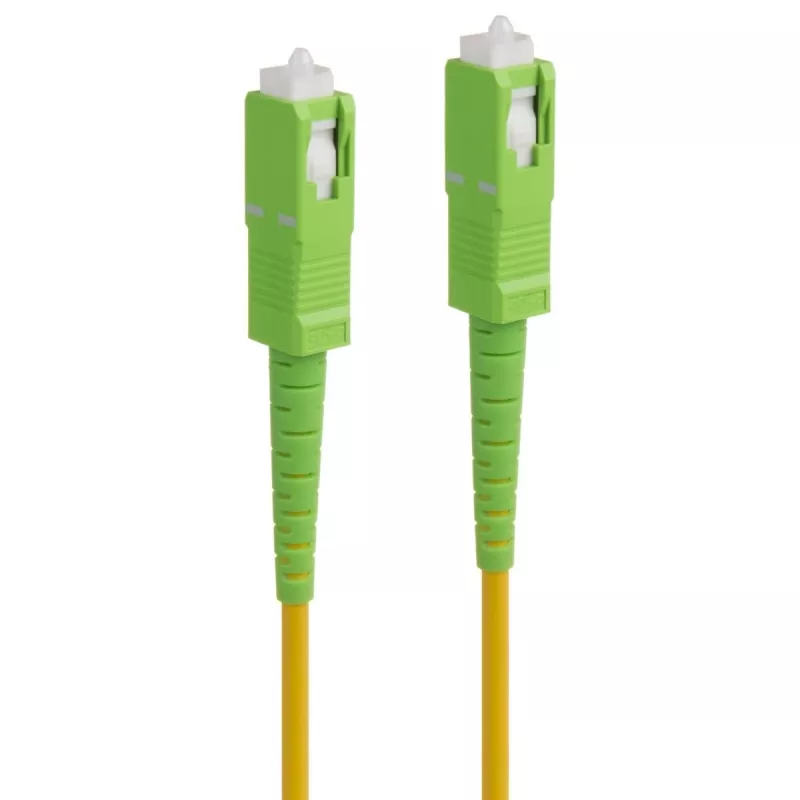

MACLEAN Cable de conexión de fibra óptica 15m SC/APC monomodo simplex LSZH Blanco MCTV-437

The MACLEAN MCTV-437 is a high-quality fiber optic patch cable designed for reliable and efficient data transmission in FTTH, FTTB, LAN, and data center environments. This 15-meter single-mode simplex cable features SC/APC connectors on both ends, ensuring low insertion loss and high return loss for optimal performance. The bend-insensitive G.657.A2 fiber and LSZH jacket provide durability and safety, making it ideal for indoor installations.

Advantages

This fiber optic cable offers exceptional signal integrity with an insertion loss of ≤0.3 dB and return loss of ≥60 dB, thanks to the APC polish. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety. Its 3.0 mm diameter and white color allow for easy identification and installation in tight spaces.

Suitable for

• FTTH (Fiber to the Home) networks
• FTTB (Fiber to the Building) applications
• Local Area Networks (LAN)
• Data centers requiring high-speed connections

Key specifications

• Cable Type: Fiber Optic Patch Cord
• Fiber Mode: Single-mode (SM)
• Fiber Type: G.657.A2 (Bend-Insensitive)
• Connector Type (End 1): SC/APC
• Connector Type (End 2): SC/APC
• Cable Configuration: Simplex (1 Fiber)
• Cable Length: 15 meters
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: White
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Polish Type: APC (Angled Physical Contact)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard SC/APC ports and is suitable for both indoor and protected outdoor installations.
