Mango para herramienta manual Gedore 8596480 peso 198 g profundidad de embalaje 185 mm altura de embalaje 40 mm

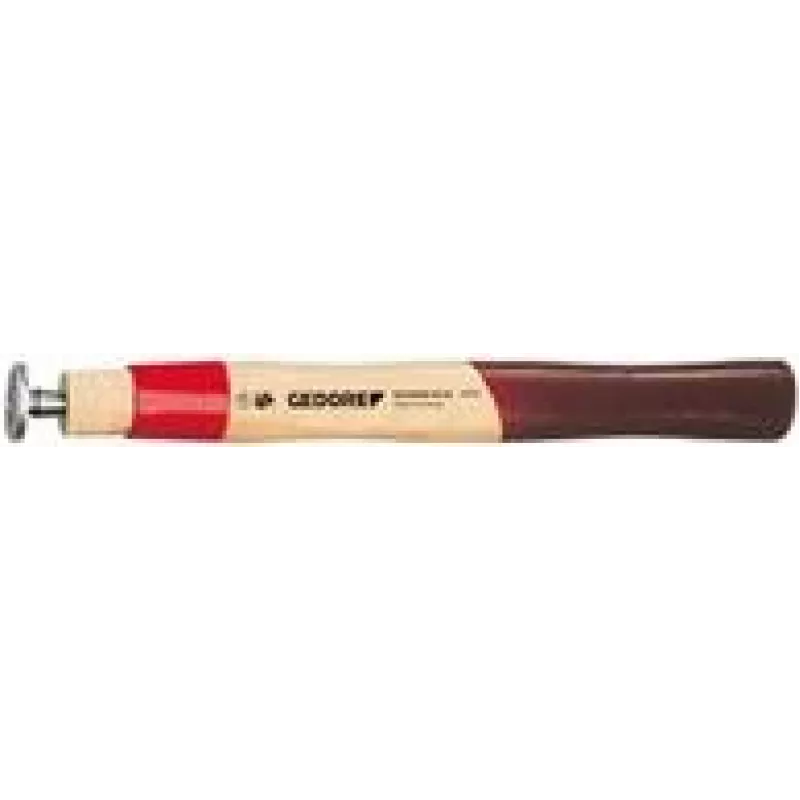

The Gedore 8596480 hand tool shaft is available in ash (E 600 E) or hickory (E 600 H) and conforms to DIN 5111. It includes a hardened handle protective steel sleeve, a tapered collar, a fixing plate and a wood screw. This standard wooden handle allows conversion of hammer heads that meet DIN standards into a ROTBAND-PLUS hammer by fitting the shaft securely into the head.

Advantages

The shaft is made from ash or hickory according to the specified type codes and built to DIN 5111 requirements, providing compatibility with standard hammer heads. A hardened steel sleeve and a tapered collar improve durability and reduce wear at the striking area. The included fixing plate and wood screw provide a secure attachment between handle and hammer head.

Suitable for (tasks / use cases)

Key specifications

How to use

Insert the wooden handle into the hammer head until it reaches the protective steel sleeve casing. Drive the tapered collar into the centre of the handle to expand and secure the fit inside the head. Attach the fixing plate over the head end and secure it with the supplied wood screw. Ensure the head is tightly seated and check for any play before use.

Recommendations

Before first use and periodically thereafter, inspect the handle, collar and fixing plate for cracks, looseness or wear. Replace the handle if any damage is found. Use the shaft only with hammer heads that conform to DIN 5111 to ensure proper fit and safe operation.
