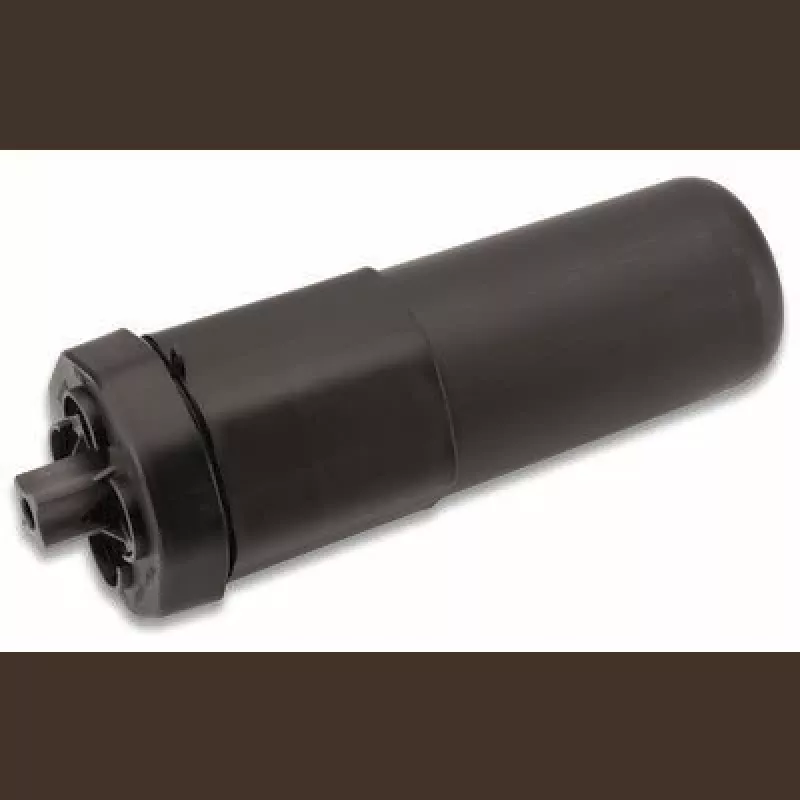

Manguito conector de cables Cimco Manguito de caja TDM 2 3x1,5 hasta 5x16mm

Cimco Dosenmuffe TDM 2 cable junction sleeve is intended for creating secure conductor connections in electrical installations. It accepts a range of conductor cross-sections from 3×1.5 mm² up to 5×16 mm², enabling flexible use for branch connections, splices and repairs inside distribution boxes and junction points. The product is designed to provide reliable mechanical hold and low-resistance electrical contact for multi-core and single-core cables where compact, accessible splicing is needed.

Advantages

The junction sleeve combines a compact housing with clear conductor entry points to simplify installation in confined spaces. Its construction ensures stable electrical continuity and reduces the risk of loose connections. Compatible with a wide range of conductor sizes, the sleeve supports both small flexible cables and larger single-core conductors without additional adapters. The design is suitable for repeated access and inspection within distribution enclosures.

Suitable for

Key specifications

How to use

Prepare the conductors by stripping insulation to the required length and ensure conductor strands are clean and undamaged. Insert each conductor into the appropriate entry of the junction sleeve according to the intended connection layout and push until a secure mechanical stop is reached. If applicable, tighten any integrated clamps or fasteners as indicated by the product design to secure the conductors and verify low-resistance contact. After installation, check for correct seating and, where necessary, apply insulation or enclosure cover to restore the distribution box integrity.

Recommendations

Use the junction sleeve only with conductor types and sizes indicated. Ensure power is isolated before starting work and verify connections with appropriate testing equipment after installation. For installations subject to professional regulations, follow local electrical codes and manufacturer guidance for enclosure and strain relief.
