Marco Ajax Smart-Switch 3 uds. Modelo 52189 para paneles de control de pared

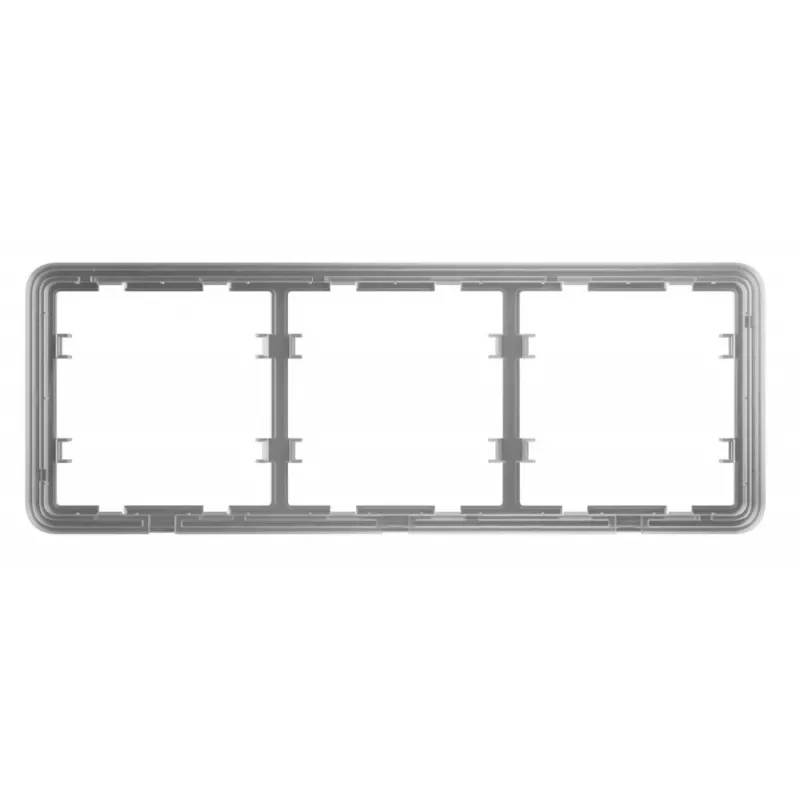

Ajax SMART SWITCH FRAME 3SEATS model 52189 is a replacement frame designed to hold three switch modules in Ajax wall-mounted control installations. It creates a tidy mounting location for organising and securing up to three control modules used in smart switch systems, suitable for both residential and commercial automation panels and retrofit projects.

Advantages

The frame offers a compact, purpose-built solution for installing three modules side by side, improving the visual coherence of wall-mounted control panels and simplifying module alignment during installation. Made to match Ajax system aesthetics and installation practices, it helps maintain consistent spacing and secure fixation of modules and can be used in new builds or when upgrading existing switch assemblies.

Suitable for (tasks / use cases)

• Organising and mounting three Ajax switch modules in wall control panels
• Refurbishment or retrofit of existing control panels to accommodate smart switch modules
• Residential smart home installations requiring a compact 3-module panel
• Small commercial or office automation panels where three control functions are grouped

When it may not be suitable

The frame is intended specifically for use with compatible Ajax switch modules and wall-mounted control panel layouts; it will not function as a universal electrical box or as a mounting frame for non-compatible third-party modules. It also does not include the switch modules themselves, wiring accessories, or mounting hardware beyond the structural frame.

Key specifications

• Capacity: holds up to three switch modules side by side
• Type: wall-mounted control panel frame for smart switch modules
• Compatibility: designed for Ajax smart switch systems and matching module dimensions
• Application: suitable for residential and light commercial automation panels and retrofit projects
• Form factor: single-piece frame to align and secure three modules

How to use

Install the frame into the prepared wall mounting location or retrofit opening, ensuring the opening matches the module and frame dimensions. Secure the frame to the wall or mounting box according to local installation practices, then insert each Ajax switch module into the frame slots until they click or are fastened according to the module instructions. Complete electrical connections and conceal wiring as required by applicable electrical codes before reattaching faceplates or covers.

What to consider before purchase

• Verify physical compatibility with the specific Ajax switch modules you intend to use
• Confirm wall or mounting-box opening dimensions match the frame and module sizes
• Ensure installation complies with local electrical regulations and that required wiring and mounting accessories are available

Recommendations

Use the frame together with genuine Ajax switch modules and follow the module installation guide. Check alignment and secure fastening during installation to prevent movement; consult a qualified installer for electrical connections and to ensure compliance with local codes.
