Marco de montaje EUROLITE FD-512 (modelo 70063813) para montaje de luminarias y estructuras

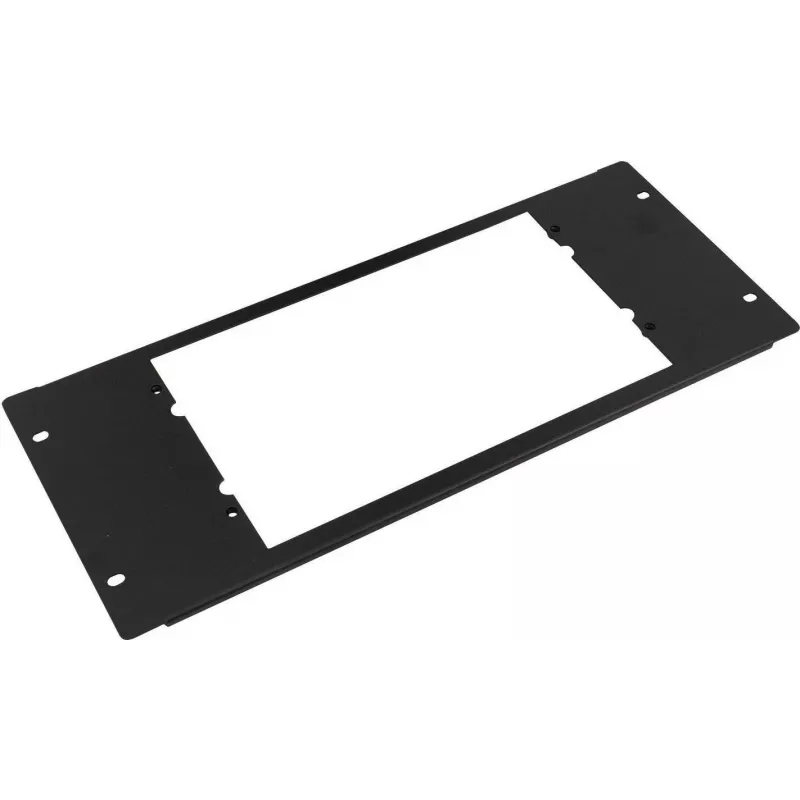

The EUROLITE FD-512 mounting frame (model 70063813) is a sturdy metal frame engineered to secure lighting fixtures and related equipment to trusses and similar support structures. Designed for stage, event and studio environments, the frame offers a standardized solution that simplifies installation, ensures stable fixture positioning and provides routes for cables and connections. The construction emphasizes durability and compatibility with common clamp and fastener types used in professional lighting setups.

Advantages

The frame's metal construction delivers reliable load-bearing capacity and resistance to deformation under typical stage loads. Its geometry supports straightforward attachment of various lighting fixtures and accessories while maintaining clearance for cable management. The design reduces installation time by providing familiar mounting points and aligning fixtures consistently across truss runs. Corrosion-resistant surface treatment helps maintain appearance and performance in repeated use.

Suitable for

Key specifications

How to use

Attach the EUROLITE FD-512 frame to the truss using appropriate truss clamps and fasteners rated for the expected load. Secure lighting fixtures to the frame using compatible brackets or yokes, making sure all fixings are tightened according to manufacturer torque recommendations. Route power and signal cables through the clearances provided to avoid strain on connectors and to keep the installation tidy. Inspect all connections and mechanical fixings before each event and after any relocation.

Recommendations

Verify the combined weight of fixtures and accessories does not exceed the rated capacity of the truss and clamps used; perform routine inspections for wear or damage; use certified mounting hardware and follow local safety regulations when installing the frame in permanent or temporary structures.
