Marco de montaje para ODD DeLOCK 47230 13,3 cm (5,25 pulgadas)

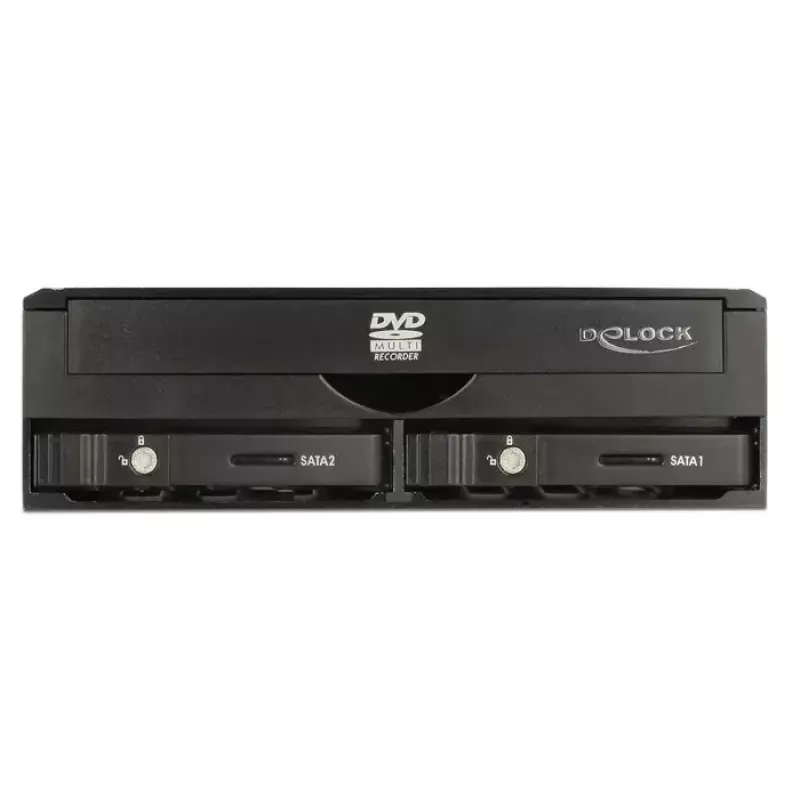

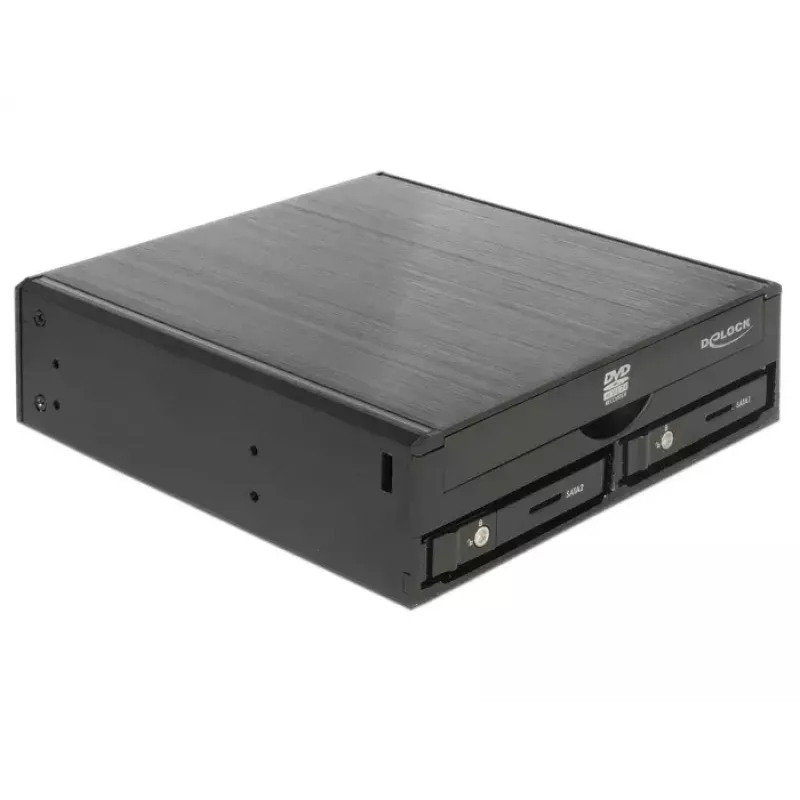

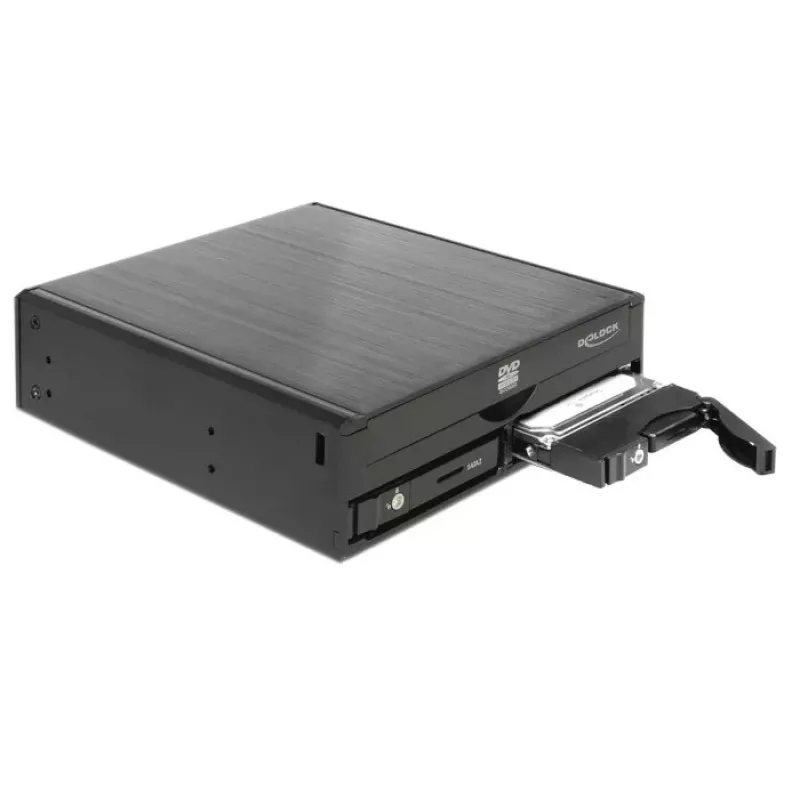

The DeLOCK 47230 ODD enclosure fits into a free 5.25" bay of a desktop PC and is intended for a 5.25" SATA III optical drive. The unit has a black aluminum housing that provides durability and helps with heat dissipation. The frame also accepts a slim optical drive plus two 2.5" SATA hard disks, and supports hot-swap operation to exchange drives while the system is running.

Advantages

The aluminium housing combines a durable build with improved thermal conduction. Compatibility with 5.25" SATA III optical drives and additional 2.5" SATA drives gives flexible installation options. Hot-swap capability allows replacing or adding 2.5" drives without powering down the PC.

Suitable for

• Installing a 5.25" SATA III optical drive into a desktop PC
• Adding one or two 2.5" SATA hard drives or SSDs alongside an ODD
• Systems where hot-swap access to 2.5" drives is required

Key specifications

• Model: DeLOCK 47230
• Form factor: fits 13.3 cm (5.25") drive bay
• Compatible drives: 5.25" SATA III optical drive + up to two 2.5" SATA drives
• Housing: black aluminium
• Dimensions (W×D×H): 146.2 × 149.7 × 42.2 mm
• MPN: 47230
• EAN: 4043619472307

How to use

Mount the DeLOCK 47230 into an available 5.25" bay of your powered-off desktop PC and secure it with screws. Install the 5.25" SATA III optical drive into the enclosure and connect the internal SATA data and power cables to the motherboard and PSU. Fit up to two 2.5" SATA drives into the provided frame positions and connect their SATA and power connectors. After confirming all connections, power on the PC. For hot-swap operation, ensure the operating system and motherboard support hot-plugging for the SATA ports used.

Recommendations

Use compatible SATA III optical drives and 2.5" SATA drives. Verify motherboard SATA port settings and hot-plug support before using the hot-swap feature. Allow adequate airflow around the aluminium housing for optimal cooling.
