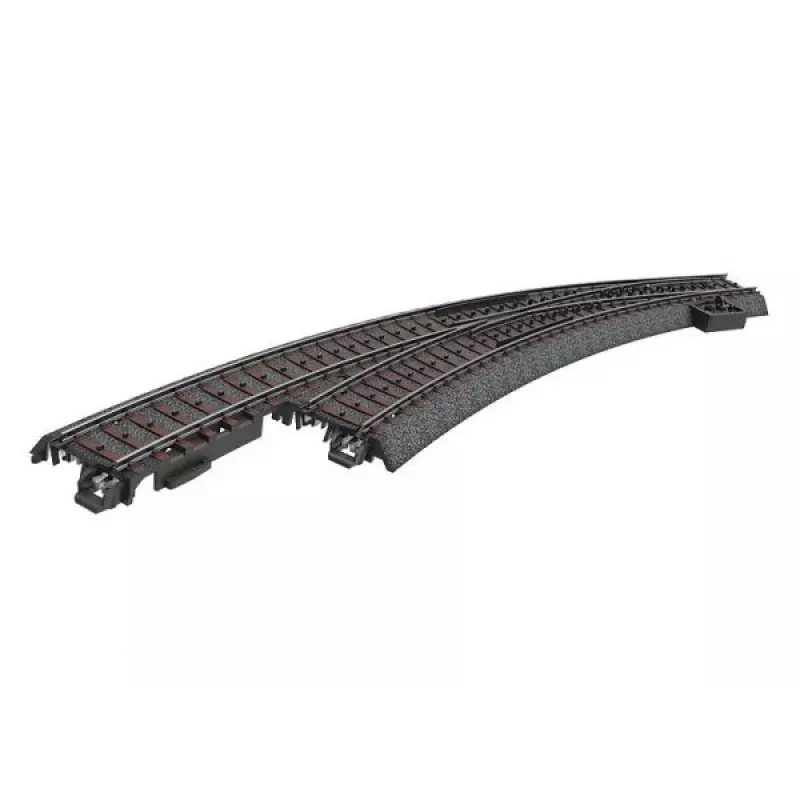

Märklin 24771 Vía C desvío curvo izquierda, vía H0, manual, lecho negro

Model railroaders often struggle to fit turnouts into curved sections of track without disrupting the flow of the layout. The Märklin 24771 curved turnout solves this by providing a left-hand diverging route that follows the natural curve of the track, allowing for smooth transitions in tight spaces.

Who is it for

This turnout is for H0 scale model railway enthusiasts using the Märklin C Track system. It is suitable for advanced hobbyists aged 15 and up who want to add operational interest to their layouts, such as sidings or branch lines on curves.

Main features

• Left-hand curved turnout with a nominal radius of 643.6 mm (R5) on the diverging branch.
• Turnout angle of 12.1 degrees for realistic track geometry.
• Standard straight track length of 236.1 mm for easy integration.
• Manual operation, prepared for electric drive (Märklin 74491 sold separately).
• Black roadbed and nickel silver rails for durability and appearance.
• Fully compatible with all Märklin C Track elements.

Specifications

• Track system: Märklin C Track
• Scale: H0 (1:87)
• Gauge: 16.5 mm
• Turnout type: Curved turnout, left
• Nominal radius (curved branch): R5 (643.6 mm)
• Turnout angle: 12.1 degrees
• Track length: 236.1 mm
• Power system: 3-rail AC (Märklin System)
• Control: Manual, prepared for electric drive
• Electric drive compatibility: Märklin 74491 (sold separately)
• Track bed colour: Black
• Rail material: Nickel silver
• Track bed material: High-quality plastic
• Rail profile height: Approx. 2.3 mm
• Frog design: Integrated for reliable operation
• Recommended age: 15+

Tips

To motorize this turnout, install the Märklin 74491 electric drive mechanism. Ensure the turnout is placed on a flat, stable surface and align it carefully with adjacent C Track sections for reliable operation.
