Märklin 39333 H0 Locomotora eléctrica BR 383 Vectron de CD

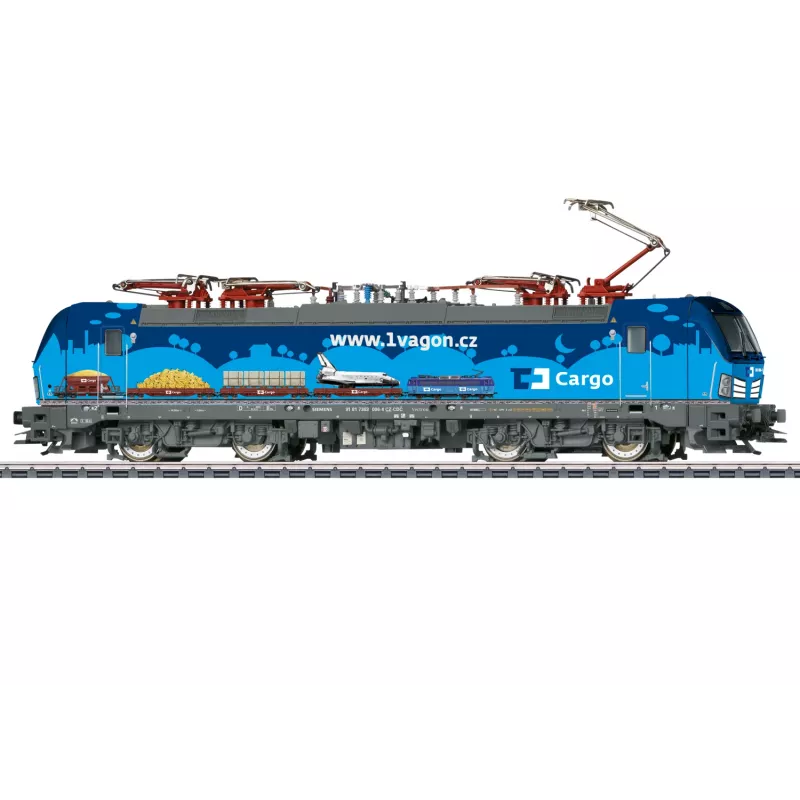

This Märklin H0 model replicates the Siemens Vectron in the livery of České dráhy (CD), designated BR 383. It is equipped with an mfx+ digital decoder and extensive sound functions, setting it apart from standard AC locomotives.

Highlights

• mfx+ digital decoder with extensive sound functions, including operating sounds, horn, braking, station announcements, and conductor's whistle
• Controlled high-efficiency propulsion with flywheel and 4 traction tires for smooth operation
• Triple headlights and dual red marker lights, direction-dependent, warm white LEDs, digitally controllable
• Digitally controllable cab lighting
• Mechanically functional pantographs (non-electrical)
• Die-cast metal chassis with plastic body
• Close couplers with NEM shaft
• Minimum radius: 360 mm (R1)

In daily use

The locomotive is designed for AC 3-rail operation (Märklin system). Its mfx+ decoder automatically registers with compatible central stations and offers a wide range of sound and lighting functions. The high-efficiency motor with flywheel ensures excellent running characteristics, and the traction tires provide sufficient pulling power for prototypical trains.

Full specifications

• Scale: H0 (1:87)
• Gauge: H0 (16.5 mm standard gauge)
• Power system: AC, 3-rail
• Decoder type: mfx+ digital decoder
• Motor: controlled high-efficiency propulsion with flywheel
• Traction tires: 4
• Lighting: triple headlights and dual red marker lights, direction-dependent, warm white LEDs, digitally controllable
• Cab lighting: digitally controllable
• Pantographs: mechanically functional (non-electrical)
• Chassis material: die-cast metal
• Body material: plastic
• Couplers: close couplers with NEM shaft
• Minimum radius: 360 mm (R1)
• Prototype: Siemens Vectron (BR 383)
• Railway company: České dráhy (CD)
• Era: VI (2007 - present)
• Length over buffers: 218 mm

Final note

A detailed H0 model for AC operation with comprehensive digital functions and authentic sound.
