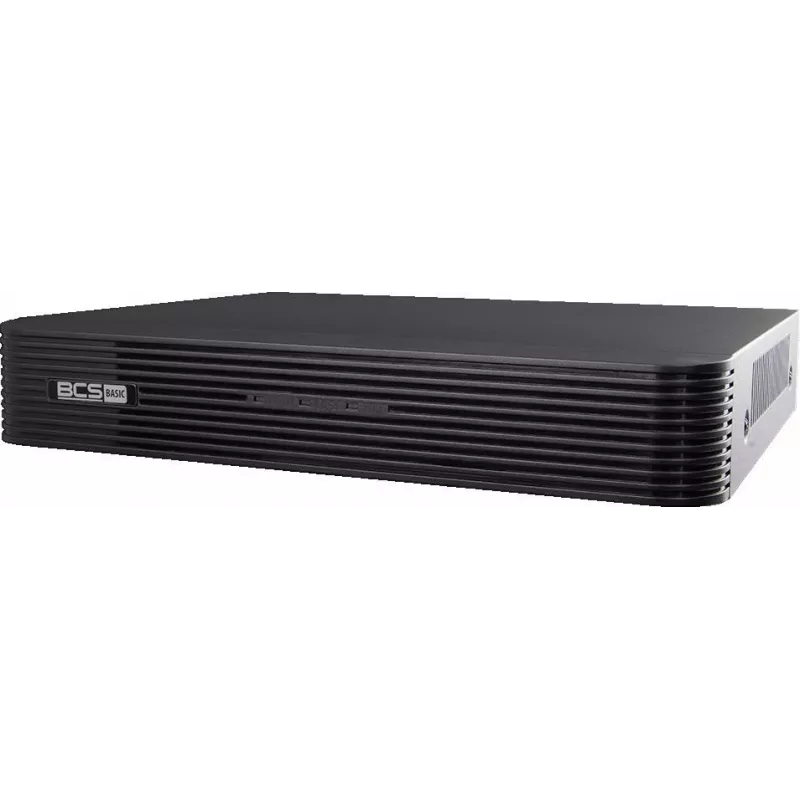

BCS BASIC BCS-B-XVR1601 grabador XVR de 16 canales con 8 canales IP, H.265+

The BCS BASIC BCS-B-XVR1601 is a high-performance 16-channel XVR recorder designed for professional surveillance systems. It supports analog HD-TVI/AHD/HD-CVI/CVBS cameras up to 5M-N resolution and adds 8 IP channels for up to 24 total cameras. With H.265+ compression, it maximizes storage efficiency while maintaining excellent video quality. Ideal for medium to large installations, this recorder offers reliable 24/7 recording, remote access via mobile app, and smart detection features.

Advantages

• Supports up to 16 analog + 8 IP cameras for flexible system expansion
• H.265+ compression reduces bandwidth and storage costs by up to 50%
• True 5M-N recording at 10fps for detailed surveillance
• Easy setup with intuitive mobile app for iOS and Android
• Robust metal housing with fan cooling for continuous operation

Suitable for

• Retail stores and supermarkets
• Office buildings and warehouses
• Parking lots and perimeter security
• Educational campuses and hospitals

Key specifications

• Video Input: 16 BNC (analog) + 8 IP (total 24 channels)
• Analog Resolution: Up to 5M-N (1944x1296) @10fps
• IP Resolution: Up to 6MP
• Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI, 1x VGA (up to 1920x1080)
• Audio: 1x RCA input, 1x RCA output
• Storage: 1x SATA HDD up to 10TB
• Network: 1x RJ-45 10/100 Mbps
• USB: 2x USB 2.0
• Power: DC 12V/2A
• Smart Features: Motion detection, perimeter protection, intrusion detection
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with BCS 5M-N analog cameras and a high-capacity 10TB surveillance HDD. Ensure proper ventilation and use a UPS for uninterrupted operation.
