Märklin 60976 Decodificador de sonido mSD/3 para locomotora diésel con placa

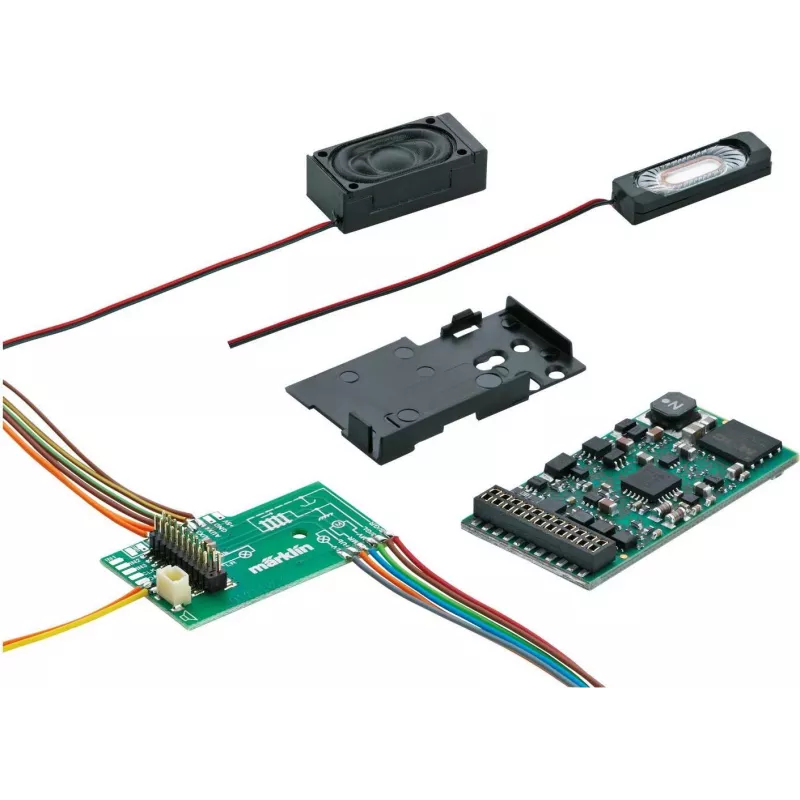

The Märklin 60976 mSD/3 sound decoder replaces the standard circuit board in select Märklin/Trix diesel locomotives, adding full mfx+ functionality and a rich diesel soundscape without needing a separate decoder. Unlike generic decoders, this unit is tailored for specific models, ensuring a clean installation and optimal motor control.

Highlights

• mfx+ capable with up to 32 controllable functions
• Extensive diesel sound: engine noise, horn, braking, compressor, shunting, station announcements
• High-efficiency silent motor control with load compensation
• 8 function outputs for lights, smoke generator, and auxiliary functions
• Integrated circuit board for direct replacement in compatible locomotives

In daily use

The decoder operates on Märklin Motorola (MM1, MM2), mfx+, and DCC systems, with RailCom compatibility and a SUSI interface for expansion. Programming is straightforward via Märklin Central Station, Mobile Station, or any DCC controller using CVs.

Full specifications

• Decoder type: mSD/3 sound decoder
• Locomotive type: Diesel locomotives
• Digital systems: mfx+, Motorola (MM1, MM2), DCC
• Functions: up to 32 (mfx+), 16 (DCC/MM)
• Motor output: max 1.1 A
• Function outputs: 8, max 180 mA each, 500 mA total
• Speaker: included, 8 Ohm, 1 W
• Interface: integrated circuit board for specific Märklin/Trix diesel locomotives
• Special features: mfx+, RailCom, SUSI
• Operating voltage: 8-24 V AC/DC

Final note

For exact locomotive compatibility, refer to Märklin's documentation for the 60976 decoder.
