Mástil Dahua Technology DH-PFB206W Universal Blanco rosca de 3/4"

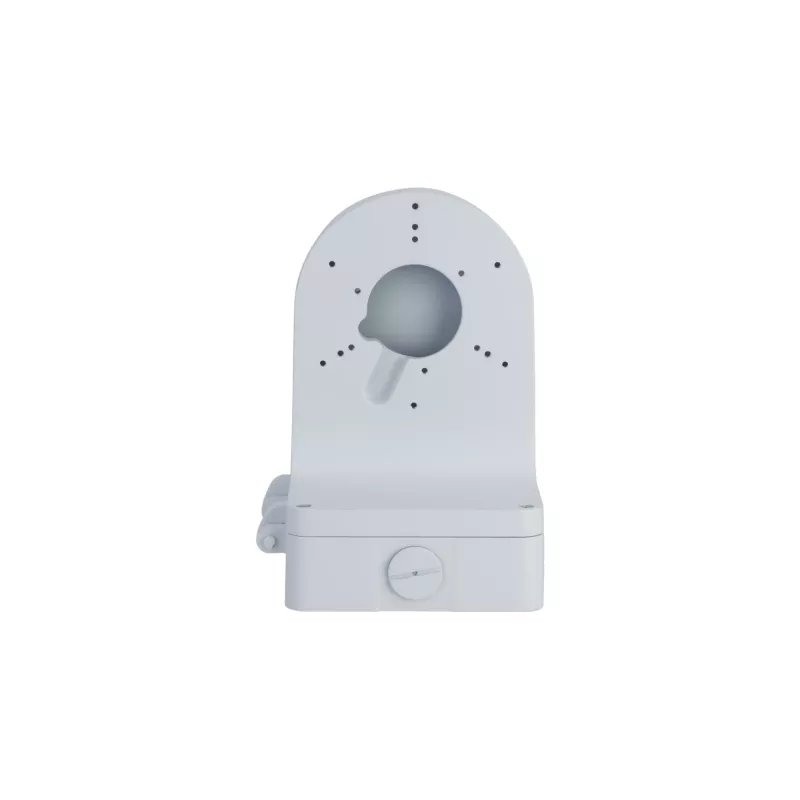

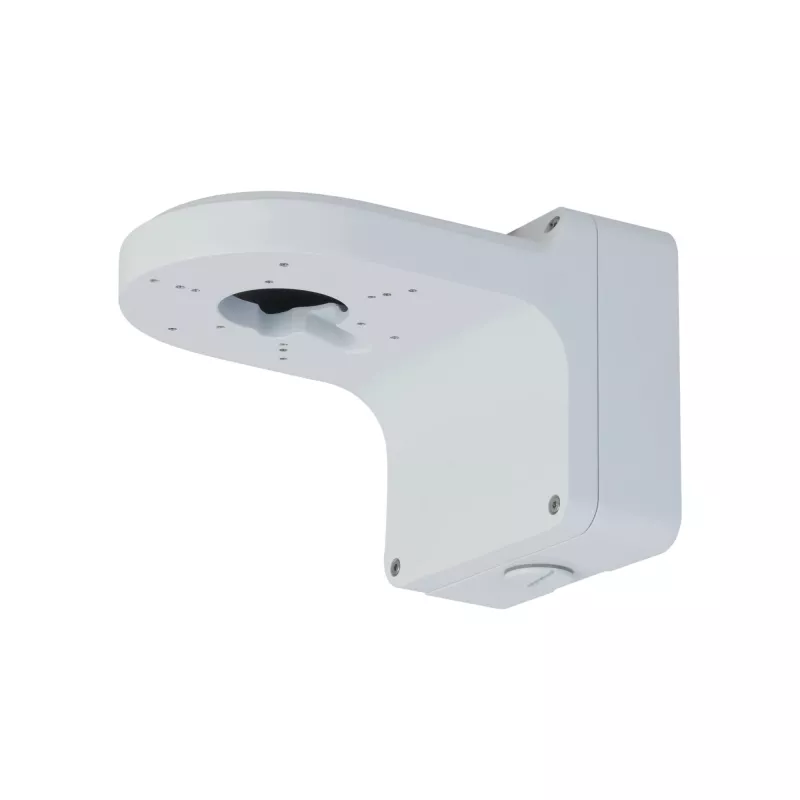

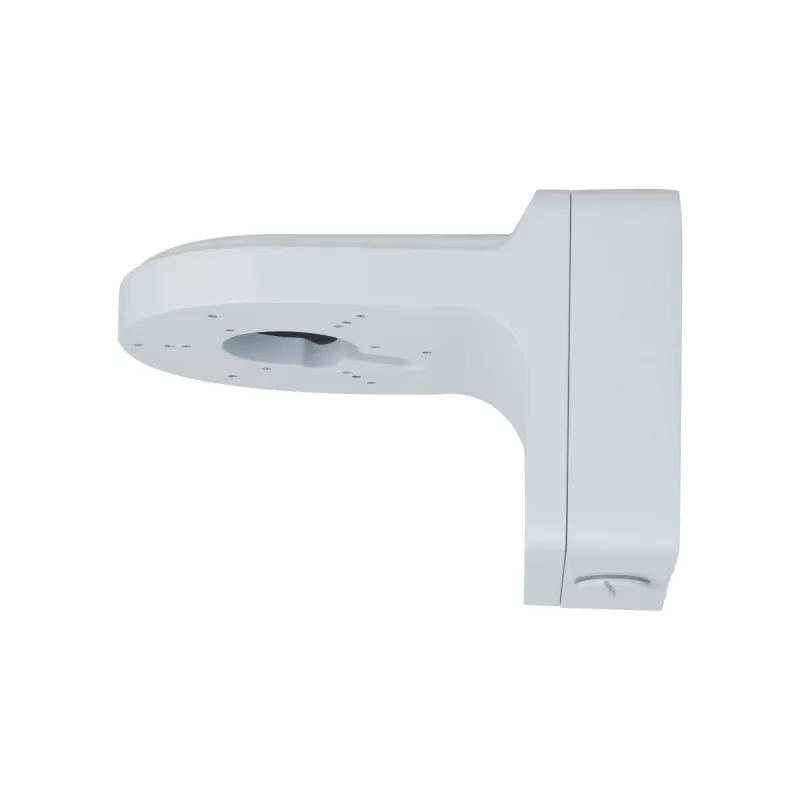

The Dahua Technology DH-PFB206W Universal White 3/4" Thread mount is an aluminum-alloy camera bracket designed for stable, cost-effective installation of security cameras. Finished in white, it supports a wide range of compatible cameras and provides compact dimensions (W 160.7 mm × D 222 mm × H 144.4 mm) for versatile placement options.

Advantages

Constructed from aluminum alloy, the mount offers a balance of strength and light weight while remaining affordable. Its universal 3/4" threaded connection simplifies attachment to many camera models. The white finish integrates with common installation environments and the compact footprint allows installation in constrained spaces.

Suitable for

• Indoor and outdoor security camera installations where a 3/4" threaded mount is required
• Wall- or ceiling-mounted camera setups with limited mounting space
• Retrofit projects replacing or upgrading existing camera mounts

Key specifications

• Model: DH-PFB206W (DAHUA)
• Material: Aluminum alloy
• Thread: 3/4" connecting thread
• Color: White

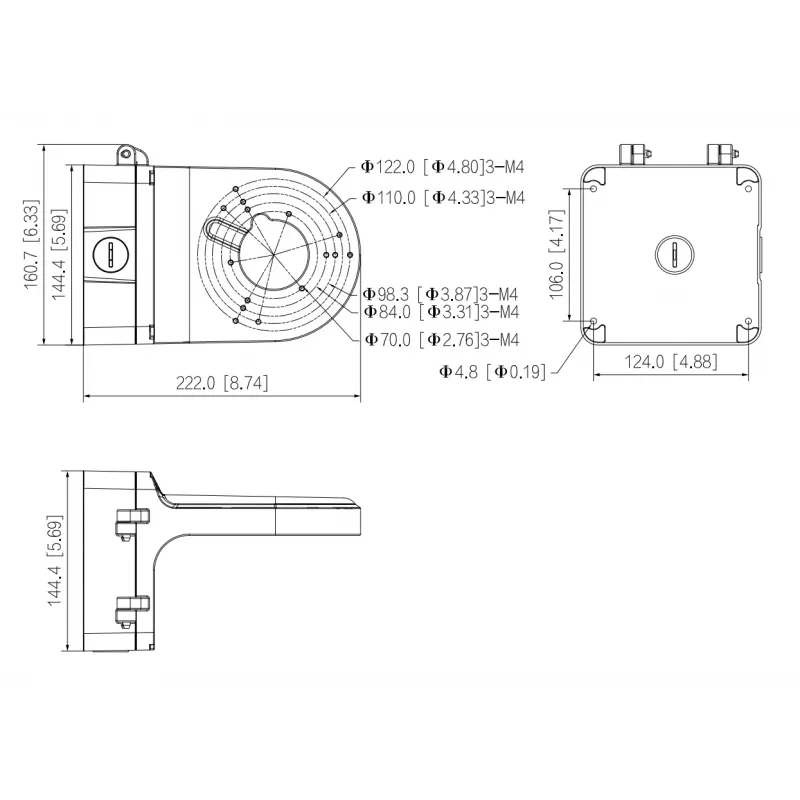

• Dimensions: Width 160.7 mm, Depth 222 mm, Height 144.4 mm
• Category: Accessories for networks
• MPN: DH-PFB206W
• EAN: 6923172540959

How to use

Mount the bracket to a suitable flat surface using appropriate fasteners for the substrate (screws and anchors not included). Attach the camera to the 3/4" threaded connector and tighten securely according to the camera manufacturer's torque recommendations. Verify the mount is level and the camera orientation is correct before finalizing the installation and weatherproof any cable entry points as required.

Recommendations

For long-term stability, use corrosion-resistant fasteners for outdoor installations and periodically inspect the mount and fastenings. Confirm camera compatibility with a 3/4" thread and follow local installation codes for secure and safe mounting.
