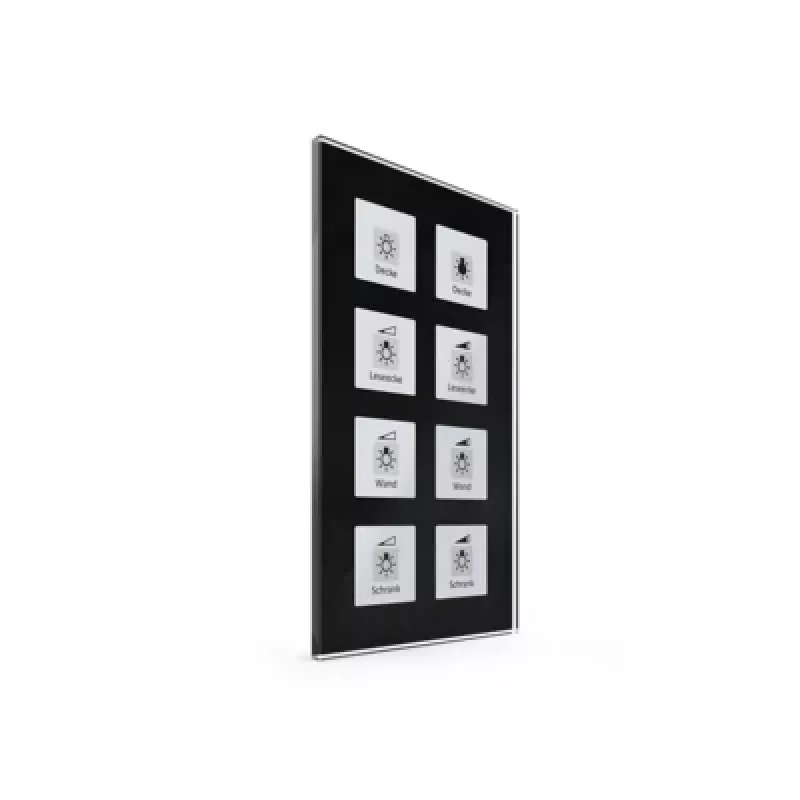

MDT BE-GT08S.01 Pulsador de cristal Plus 8 canales negro

Managing complex building automation from a single wall-mounted control point often means juggling multiple switches or a cluttered interface. The MDT BE-GT08S.01 Glass Push Button Plus solves this by combining eight configurable buttons with an active color display, all behind a sleek black glass surface.

Who is it for

This KNX push-button sensor is intended for electricians, system integrators, and homeowners who need a flexible, multi-function control panel for lighting, blinds, HVAC, scenes, and more in residential or commercial KNX installations.

Main features

• 8 buttons arranged in 4 pairs, each with an RGBW status LED for clear visual feedback.
• Active color display for individual symbols and plain text, adjustable to show room names, functions, or status.
• Integrated temperature, humidity, and brightness sensors for environmental monitoring and automation triggers.
• Proximity function activates the display when you approach, saving energy and reducing distraction.
• Supports a wide range of KNX functions: switching, dimming, blinds, values, scenes, sequences, HVAC, logic, and alarm.
• Flush-mounted in a standard appliance box with a minimal visible depth of only 11 mm.

Specifications

• Product type: KNX Glass Push-button Sensor
• Number of buttons: 8 (4 pairs)
• Colour: Black
• Material: Glass surface
• Display type: Active colour display
• Integrated sensors: Temperature, Humidity, Brightness
• Proximity function: Yes
• Status indication: RGBW status LED per button, adjustable colour
• KNX functions: Switching, Dimming, Blinds, Values, Scenes, Sequence, HVAC, Logic, Alarm
• Installation type: Flush-mounted
• Mounting: Standard appliance box
• Bus system: KNX
• Power supply: KNX Bus
• Protection class: IP20
• Operating temperature: -5°C to +45°C
• Configuration: ETS (Engineering Tool Software)
• Visible dimensions (WxHxD): 92 x 92 x 11 mm
• Installation depth: Approx. 29 mm

Tips

Use the ETS software to assign each button a primary and secondary function, and leverage the built-in sensors to automate lighting or climate based on room occupancy and ambient light. The proximity sensor can be adjusted to wake the display only when needed, extending the life of the display and reducing power consumption.
