MDT BE-TAS63T4.01 KNX Smart 63 pulsador de cristal 4 canales con pantalla en color y sensor de temperatura, Studio blanco brillante

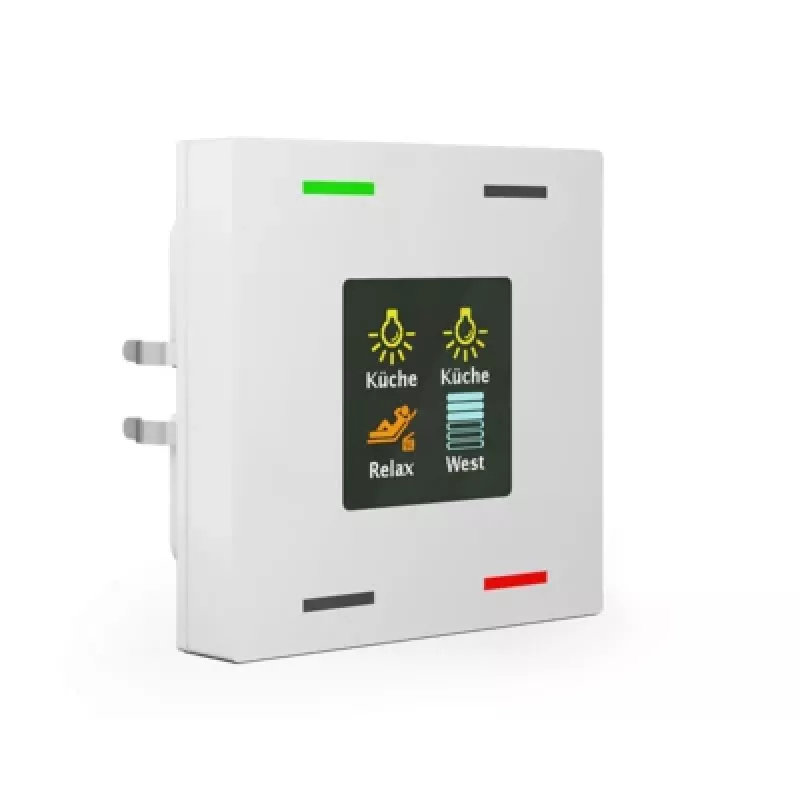

The MDT BE-TAS63T4.01 Smart 63 push button integrates a 4-fold KNX control surface with an active matrix color display and an integrated temperature sensor, all behind a studio white glossy glass front.

Overview

This flush-mounted KNX device combines four individually configurable buttons with a high-resolution color display that shows temperature, time, date, alarm texts, and status messages. The integrated temperature sensor enables room temperature control with PI, 2-point, or PI continuous algorithms. A proximity sensor and brightness sensor are also built in, and an external NTC temperature sensor can be connected.

What stands out

• Active matrix color display with adjustable backlight
• Integrated temperature, proximity, and brightness sensors
• External sensor input for NTC temperature probe
• Four configurable buttons for switching, dimming, blinds, scenes, and value transmission
• Glass surface in studio white glossy finish

Technical details

• Bus system: KNX
• Number of buttons: 4
• Display: Active matrix color display
• Sensors: Temperature, proximity, brightness; external NTC input
• Room temperature controller: PI, 2-point, PI continuous
• Control functions: Switching, dimming, blind/shutter, value transmitter, scene recall, sequence control
• Mounting: Flush-mounted in standard wall box
• Material: Glass
• Color: Studio white glossy
• Power supply: KNX bus voltage
• Protection class: IP20
• Operating temperature: 0°C to +45°C
• Operating humidity: max. 93% non-condensing
• Configuration: ETS
• Firmware update: via ETS

Our verdict

A feature-rich KNX push button with a vivid color display and comprehensive sensor integration, ideal for demanding smart building installations.
