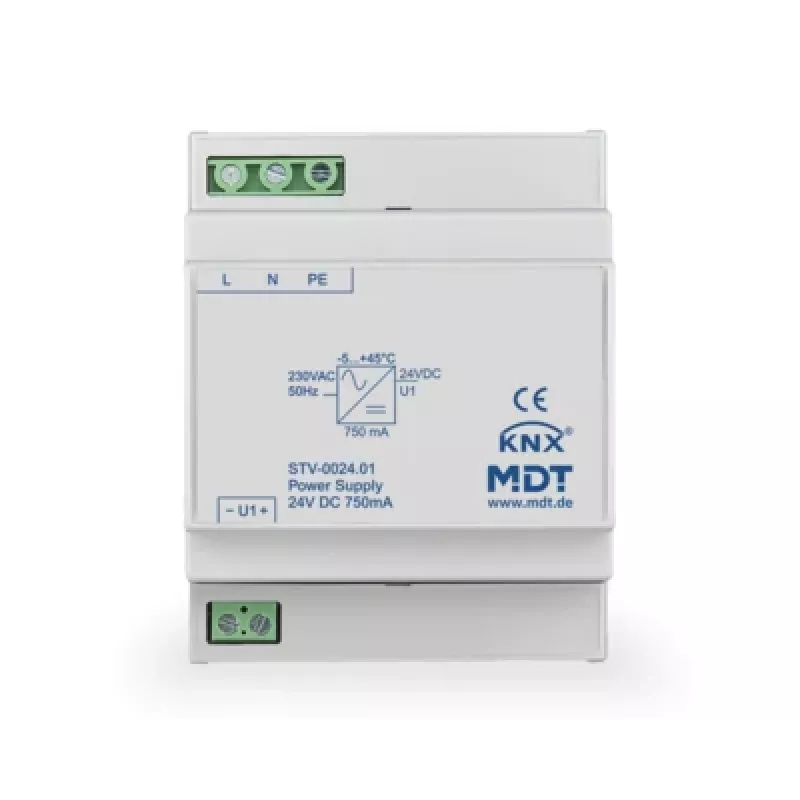

MDT STV-0024.01 alimentación de bus 4TE carril DIN 24V DC 750mA

The MDT STV-0024.01 delivers a regulated 24 V DC output at up to 750 mA, making it a dependable power source for KNX bus lines and other low-voltage control circuits. Its compact 4 TE (72 mm) DIN rail housing fits neatly into standard distribution boards, while screw terminals ensure secure wiring.

Highlights

• Regulated 24 V DC output with 750 mA maximum current
• Compact 4 TE (DIN module) width for space-saving installation
• DIN rail mounting (REG) for quick integration
• Overload and short circuit protection
• Wide input range: 230 V AC, 50/60 Hz

In daily use

This power supply is engineered for continuous operation in building automation systems. It maintains a stable 24 V DC output even with fluctuating mains voltage, protecting connected devices from under-voltage or over-current conditions. The plastic housing and IP20 rating make it suitable for installation inside electrical cabinets or distribution panels.

Full specifications

• Output voltage: 24 V DC
• Output current: 750 mA
• Output power: 18 W
• Input voltage: 230 V AC
• Input frequency: 50/60 Hz
• Mounting: DIN rail (REG)
• Module width: 4 TE
• Connection: Screw terminals
• Operating temperature: 0 to +45 °C
• Protection: Overload, short circuit

Final note

A reliable and compact bus power supply for KNX and other 24 V DC applications, built to fit standard DIN rail enclosures.
